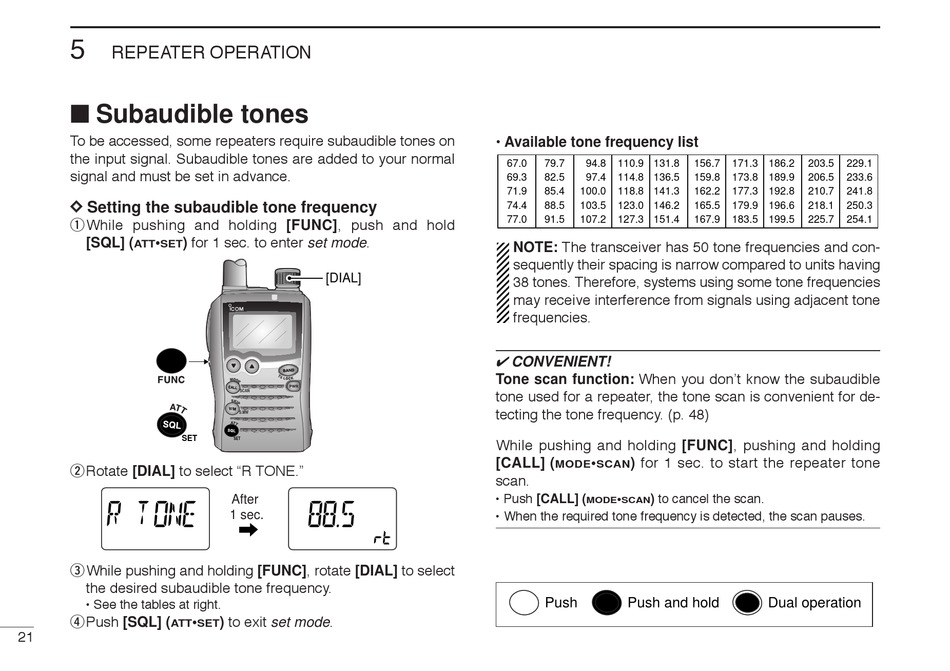

Subaudible Tones - Icom IC-P7A Instruction Manual

5
REPEATER OPERATION

■ Subaudible tones

To be accessed, some repeaters require subaudible tones on
the input signal. Subaudible tones are added to your normal
signal and must be set in advance.
D D Setting the subaudible tone frequency
qWhile pushing and holding [FUNC], push and hold
) for 1 sec. to enter set mode.
[SQL] ( •
ATT SET
SET
wRotate [DIAL] to select "R TONE."
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired subaudible tone frequency.
• See the tables at right.
r Push [SQL] (
•
ATT SET
21
[DIAL]
SCAN
S.MW
SET
WFMAM - DUP
T SQL SQL DTCS ATT
After
1 sec.
VOL PRIO P SKIP MR
LOW 1 5 9
) to exit set mode.
• Available tone frequency list
67.0 79.7 94.8 110.9 131.8
69.3 82.5 97.4 114.8 136.5
71.9 85.4 100.0 118.8 141.3
74.4 88.5 103.5 123.0 146.2
77.0 91.5 107.2 127.3 151.4
NOTE: The transceiver has 50 tone frequencies and con-
sequently their spacing is narrow compared to units having
38 tones. Therefore, systems using some tone frequencies
may receive interference from signals using adjacent tone
frequencies.
✔ CONVENIENT!
Tone scan function: When you don't know the subaudible
tone used for a repeater, the tone scan is convenient for de-
tecting the tone frequency. (p. 48)
While pushing and holding [FUNC], pushing and holding
) for 1 sec. to start the repeater tone
[CALL] ( •
MODE SCAN
scan.
• Push [CALL] ( • ) to cancel the scan.
MODE SCAN
• When the required tone frequency is detected, the scan pauses.
Push Push and hold
156.7 171.3 186.2 203.5 229.1
159.8 173.8 189.9 206.5 233.6
162.2 177.3 192.8 210.7 241.8
165.5 179.9 196.6 218.1 250.3
167.9 183.5 199.5 225.7 254.1
Dual operation
