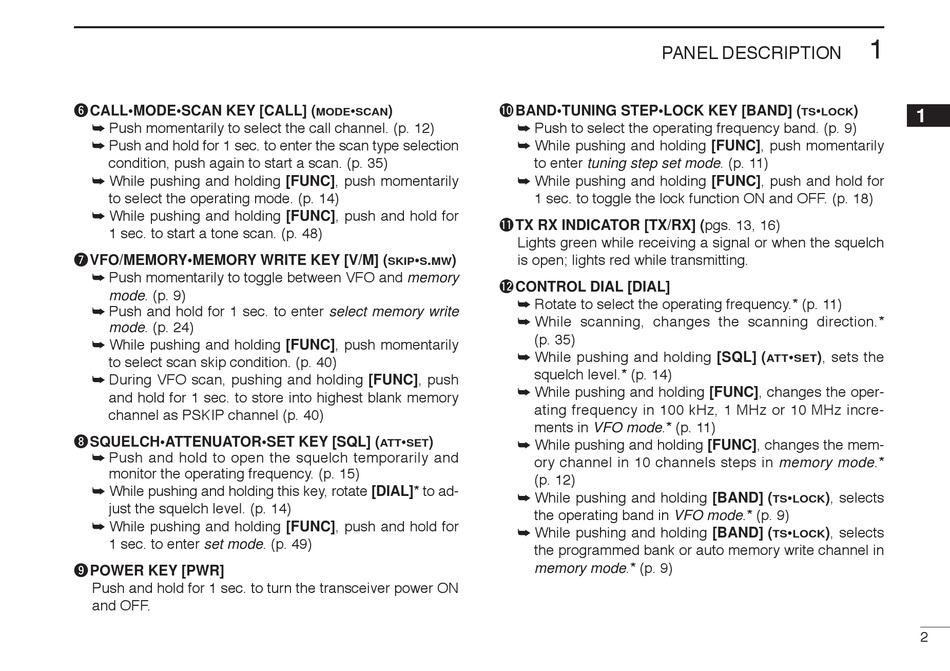

y CALL•MODE•SCAN KEY [CALL] (
➥ Push momentarily to select the call channel. (p. 12)
➥ Push and hold for 1 sec. to enter the scan type selection
condition, push again to start a scan. (p. 35)
➥ While pushing and holding [FUNC], push momentarily
to select the operating mode. (p. 14)
➥ While pushing and holding [FUNC], push and hold for
1 sec. to start a tone scan. (p. 48)
uVFO/MEMORY•MEMORY WRITE KEY [V/M] (
➥ Push momentarily to toggle between VFO and memory
mode. (p. 9)
➥ Push and hold for 1 sec. to enter select memory write
mode. (p. 24)
➥ While pushing and holding [FUNC], push momentarily
to select scan skip condition. (p. 40)
➥ During VFO scan, pushing and holding [FUNC], push
and hold for 1 sec. to store into highest blank memory
channel as PSKIP channel (p. 40)
i SQUELCH•ATTENUATOR•SET KEY [SQL] (
➥ Push and hold to open the squelch temporarily and
monitor the operating frequency. (p. 15)
➥ While pushing and holding this key, rotate [DIAL]* to ad-
just the squelch level. (p. 14)
➥ While pushing and holding [FUNC], push and hold for
1 sec. to enter set mode. (p. 49)
o POWER KEY [PWR]
Push and hold for 1 sec. to turn the transceiver power ON
and OFF.
•
)
MODE
SCAN
•
.
)
SKIP
S
MW
•
)
ATT
SET
PANEL DESCRIPTION
!0 BAND•TUNING STEP•LOCK KEY [BAND] (
➥ Push to select the operating frequency band. (p. 9)
➥ While pushing and holding [FUNC], push momentarily
to enter tuning step set mode. (p. 11)
➥ While pushing and holding [FUNC], push and hold for
1 sec. to toggle the lock function ON and OFF. (p. 18)
!1 TX RX INDICATOR [TX/RX] (pgs. 13, 16)
Lights green while receiving a signal or when the squelch
is open; lights red while transmitting.
!2 CONTROL DIAL [DIAL]
➥ Rotate to select the operating frequency.* (p. 11)
➥ While scanning, changes the scanning direction.*
(p. 35)
➥ While pushing and holding [SQL] (
squelch level.* (p. 14)
➥ While pushing and holding [FUNC], changes the oper-
ating frequency in 100 kHz, 1 MHz or 10 MHz incre-
ments in VFO mode.* (p. 11)
➥ While pushing and holding [FUNC], changes the mem-
ory channel in 10 channels steps in memory mode.*
(p. 12)
➥ While pushing and holding [BAND] (
the operating band in VFO mode.* (p. 9)
➥ While pushing and holding [BAND] (
the programmed bank or auto memory write channel in
memory mode.* (p. 9)
1
•
)
TS
LOCK
1
), sets the
•
ATT
SET
), selects
•
TS
LOCK
), selects
•
TS
LOCK
2
