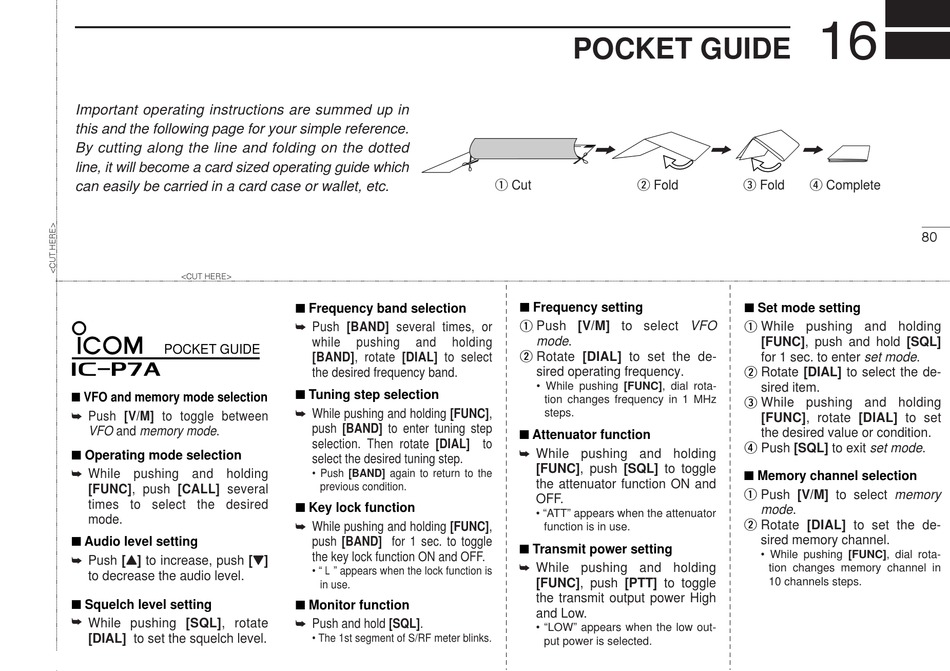

Important operating instructions are summed up in
this and the following page for your simple reference.
By cutting along the line and folding on the dotted
line, it will become a card sized operating guide which
can easily be carried in a card case or wallet, etc.
<CUT HERE>
POCKET GUIDE
iP7A
■ VFO and memory mode selection
➥
Push [V/M] to toggle between
VFO and memory mode .
■ Operating mode selection
➥
While pushing and holding
[FUNC], push [CALL] several
times to select the desired
mode.
■ Audio level setting
➥
Push [Y] to increase, push [Z]
to decrease the audio level.
■ Squelch level setting
➥
While pushing [SQL], rotate
[DIAL] to set the squelch level.
■ Frequency band selection
➥
Push [BAND] several times, or
while
pushing
and
holding
[BAND], rotate [DIAL] to select
the desired frequency band.
■ Tuning step selection
➥
While pushing and holding [FUNC],
push [BAND] to enter tuning step
selection. Then rotate [DIAL] to
select the desired tuning step.
• Push [BAND] again to return to the
previous condition.
■ Key lock function
➥
While pushing and holding [FUNC],
push [BAND] for 1 sec. to toggle
the key lock function ON and OFF.
• " L " appears when the lock function is
in use.
■ Monitor function
➥
Push and hold [SQL].
• The 1st segment of S/RF meter blinks.
POCKET GUIDE
q Cut
w Fold
■ Frequency setting
q
Push [V/M] to select VFO
mode .
w
Rotate [DIAL] to set the de-
sired operating frequency.
• While pushing [FUNC], dial rota-
tion changes frequency in 1 MHz
steps.
■ Attenuator function
➥
While pushing and holding
[FUNC], push [SQL] to toggle
the attenuator function ON and
OFF.
• "ATT" appears when the attenuator
function is in use.
■ Transmit power setting
➥
While pushing and holding
[FUNC], push [PTT] to toggle
the transmit output power High
and Low.
• "LOW" appears when the low out-
put power is selected.
16
e Fold
r Complete
80
■ Set mode setting
q
While pushing and holding
[FUNC], push and hold [SQL]
for 1 sec. to enter set mode .
w
Rotate [DIAL] to select the de-
sired item.
e
While pushing and holding
[FUNC], rotate [DIAL] to set
the desired value or condition.
r
Push [SQL] to exit set mode .
■ Memory channel selection
q
Push [V/M] to select memory
mode .
w
Rotate [DIAL] to set the de-
sired memory channel.
• While pushing [FUNC], dial rota-
tion changes memory channel in
10 channels steps.
