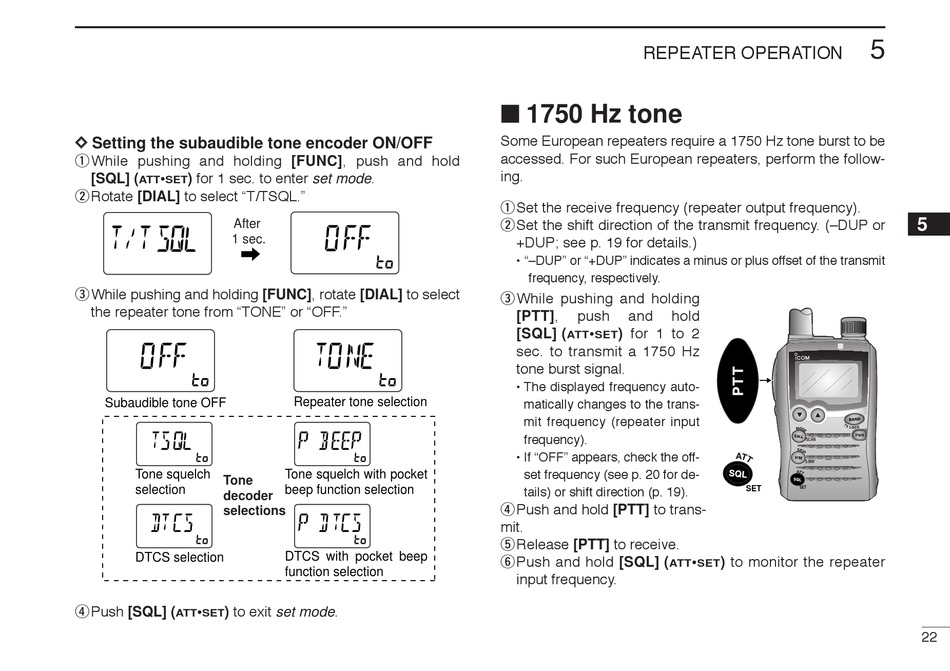

D D Setting the subaudible tone encoder ON/OFF
qWhile pushing and holding [FUNC], push and hold
) for 1 sec. to enter set mode.
[SQL] ( •
ATT SET
w Rotate [DIAL] to select "T/TSQL."
WFMAM - DUP DTCS ATT
T SQL
After
1 sec.
VOL PRIO P SKIP MR
LOW
1 5 9
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the repeater tone from "TONE" or "OFF."
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP
MR
LOW 1 5 9
Subaudible tone OFF
WFMAM -DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
Tone squelch
Tone
selection
decoder
selections
WFMAM -DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
DTCS selection
r Push [SQL] (
) to exit set mode.
•
ATT SET
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP
MR
LOW 1 5 9
Repeater tone selection
WFMAM -DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
Tone squelch with pocket
beep function selection
WFMAM -DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
DTCS with pocket beep
function selection
REPEATER OPERATION

■ 1750 Hz tone

Some European repeaters require a 1750 Hz tone burst to be
accessed. For such European repeaters, perform the follow-
ing.
q Set the receive frequency (repeater output frequency).
wSet the shift direction of the transmit frequency. (–DUP or
+DUP; see p. 19 for details.)
• "–DUP" or "+DUP" indicates a minus or plus offset of the transmit
frequency, respectively.
eWhile pushing and holding
[PTT], push and hold
) for 1 to 2
[SQL] ( •
ATT SET
sec. to transmit a 1750 Hz
tone burst signal.
• The displayed frequency auto-
matically changes to the trans-
mit frequency (repeater input
frequency).
• If "OFF" appears, check the off-
set frequency (see p. 20 for de-
tails) or shift direction (p. 19).
r Push and hold [PTT] to trans-
mit.
t Release [PTT] to receive.
yPush and hold [SQL] (
ATT
input frequency.
5
SCAN
S.MW
SET SET
) to monitor the repeater
•
SET
5
