5

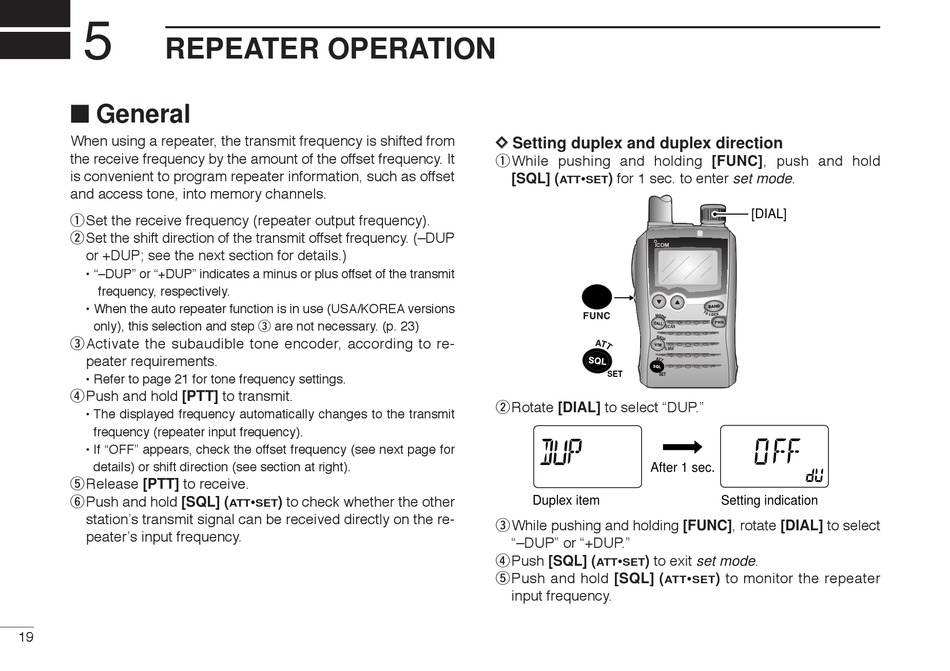

REPEATER OPERATION
■ General
When using a repeater, the transmit frequency is shifted from
the receive frequency by the amount of the offset frequency. It
is convenient to program repeater information, such as offset
and access tone, into memory channels.
q Set the receive frequency (repeater output frequency).
w Set the shift direction of the transmit offset frequency. (–DUP
or +DUP; see the next section for details.)
• "–DUP" or "+DUP" indicates a minus or plus offset of the transmit
frequency, respectively.
• When the auto repeater function is in use (USA/KOREA versions
only), this selection and step e are not necessary. (p. 23)
eActivate the subaudible tone encoder, according to re-
peater requirements.
• Refer to page 21 for tone frequency settings.
r Push and hold [PTT] to transmit.
• The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).
• If "OFF" appears, check the offset frequency (see next page for
details) or shift direction (see section at right).
t Release [PTT] to receive.
yPush and hold [SQL] (
station's transmit signal can be received directly on the re-
peater's input frequency.
19
) to check whether the other
•
ATT
SET
D D Setting duplex and duplex direction
qWhile pushing and holding [FUNC], push and hold
) for 1 sec. to enter set mode.
[SQL] (
•
ATT
SET
SCAN
S.MW
SET
SET
w Rotate [DIAL] to select "DUP."
WFMAM - DUP
T SQL
DTCS
ATT
After 1 sec.
VOL PRIO P SKIP
MR
LOW
1
5
9
Duplex item
eWhile pushing and holding [FUNC], rotate [DIAL] to select
"–DUP" or "+DUP."
r Push [SQL] (
) to exit set mode.
•
ATT
SET
tPush and hold [SQL] (
ATT
input frequency.
[DIAL]
WFMAM - DUP
T SQL
DTCS
ATT
VOL PRIO P SKIP
MR
LOW
1
5
9
Setting indication
•
) to monitor the repeater
SET
