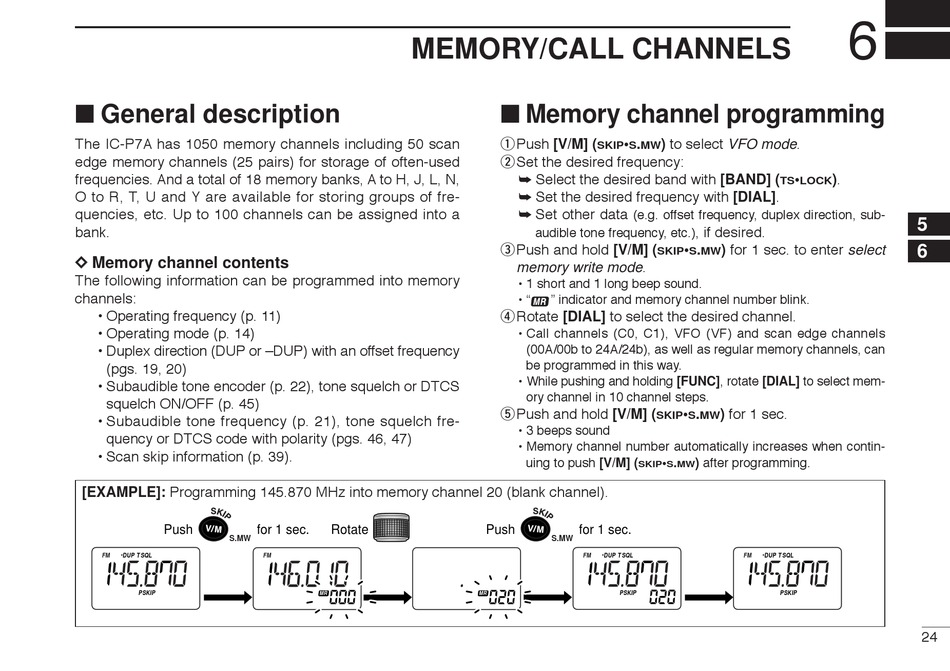

■ General description

The IC-P7A has 1050 memory channels including 50 scan
edge memory channels (25 pairs) for storage of often-used
frequencies. And a total of 18 memory banks, A to H, J, L, N,
O to R, T, U and Y are available for storing groups of fre-
quencies, etc. Up to 100 channels can be assigned into a
bank.
D D Memory channel contents
The following information can be programmed into memory
channels:
• Operating frequency (p. 11)
• Operating mode (p. 14)
• Duplex direction (DUP or –DUP) with an offset frequency
(pgs. 19, 20)
• Subaudible tone encoder (p. 22), tone squelch or DTCS
squelch ON/OFF (p. 45)
• Subaudible tone frequency (p. 21), tone squelch fre-
quency or DTCS code with polarity (pgs. 46, 47)
• Scan skip information (p. 39).
[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel).
Push
S.MW
WFMAM - DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW
1 5 9

MEMORY/CALL CHANNELS

for 1 sec. Rotate
WFMAM - DUP ATT WFMAM - DUP
T SQL DTCS
VOL PRIO P SKIP MR VOL PRIO P SKIP
LOW LOW
1 5 9 1

■ Memory channel programming

q Push [V/M] (
•
SKIP S
w Set the desired frequency:
➥ Select the desired band with [BAND] (
➥ Set the desired frequency with [DIAL].
➥ Set other data
(e.g. offset frequency, duplex direction, sub-
audible tone frequency, etc.)
ePush and hold [V/M] (
memory write mode.
• 1 short and 1 long beep sound.
• " " indicator and memory channel number blink.
r Rotate [DIAL] to select the desired channel.
• Call channels (C0, C1), VFO (VF) and scan edge channels
(00A/00b to 24A/24b), as well as regular memory channels, can
be programmed in this way.
• While pushing and holding [FUNC], rotate [DIAL] to select mem-
ory channel in 10 channel steps.
t Push and hold [V/M] (
• 3 beeps sound
• Memory channel number automatically increases when contin-
uing to push [V/M] (
Push for 1 sec.
S.MW
ATT WFMAM - DUP T SQL
T SQL DTCS
MR VOL PRIO P SKIP
LOW
5 9 1 5
) to select VFO mode.
.
MW
•
TS LOCK
, if desired.
) for 1 sec. to enter select
• .
SKIP S MW
• . ) for 1 sec.
SKIP S MW
• . ) after programming.
SKIP S MW
DTCS ATT WFMAM - DUP T SQL DTCS
MR VOL PRIO P SKIP MR
LOW
9 1 5 9
6
).
5
6
ATT
24
