6. Replace the side panel as described in "Closing the Left Side Panel" on page 15.
7. Attach the USB keyboard, USB mouse, LAN, peripherals and power cord to the
workstation.
8. Verify your installation procedure. See "Verifying System Operations" on page 85.

Removing a Hard Disk Drive

This procedure explains how to remove your hard disk drive. Note that there are no cables
to disconnect when removing a hard disk drive. To remove a hard disk drive, your
workstation must be turned OFF.
NOTE
If you are removing a hard disk drive that has a mounted file system on it,
you will need to unmount it. This should be done before you remove the hard
disk drive.
To unmount a file system on a hard disk drive use the procedure provided in
the section "Removing a Hard Disk Drive as a File System Using SAM".
1. Open the side panel of your workstation using the instructions found in the section
"Opening the Side Panel." As you face the workstation system board, the hard disk
drives are on the right side. The lower slot (ID5) on the right is the one discussed in this
section. See Figure 2-42.

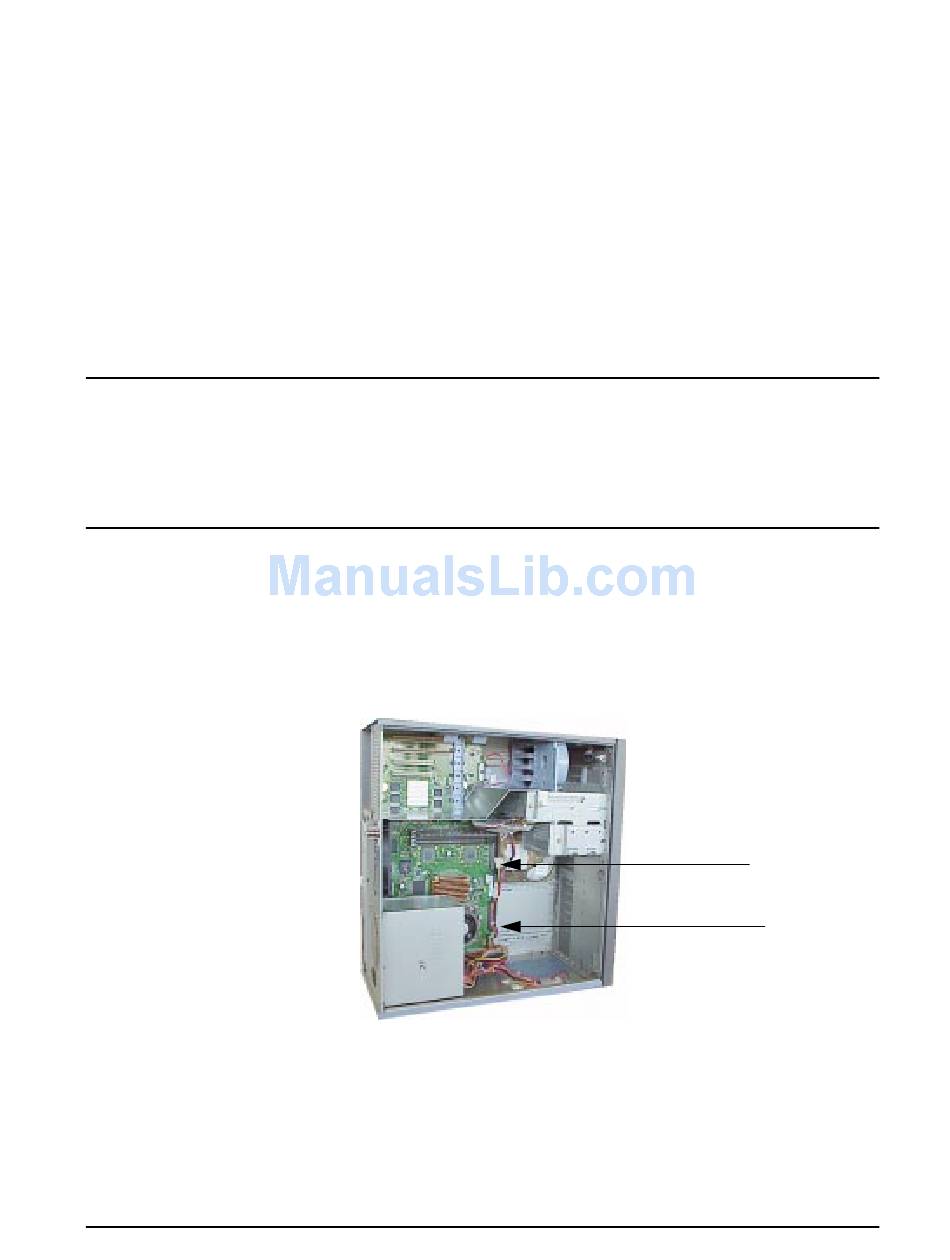

Figure 2-42
The Hard Drive Slots
2. Loosen the captive T-15 Torx thumbscrew securing the disk drive bracket to the system
board. As you grasp the bracket and slide to the front of the workstation, the bracket
will unseat from the chassis rail. See Figure 2-43. You may need to angle the disk drive
bracket slightly to disengage the hooks as you slide it along the rail.
Chapter 2
Parts Replacement Procedures
Hard Disk Drive
Hard Disk Drive
SCSI slots
SCSI ID 6
SCSI ID 5
49
