HP Vizualize,Visualize b2000 Supplementary Manual page 46

Parts Replacement Procedures
Hard Disk Drive

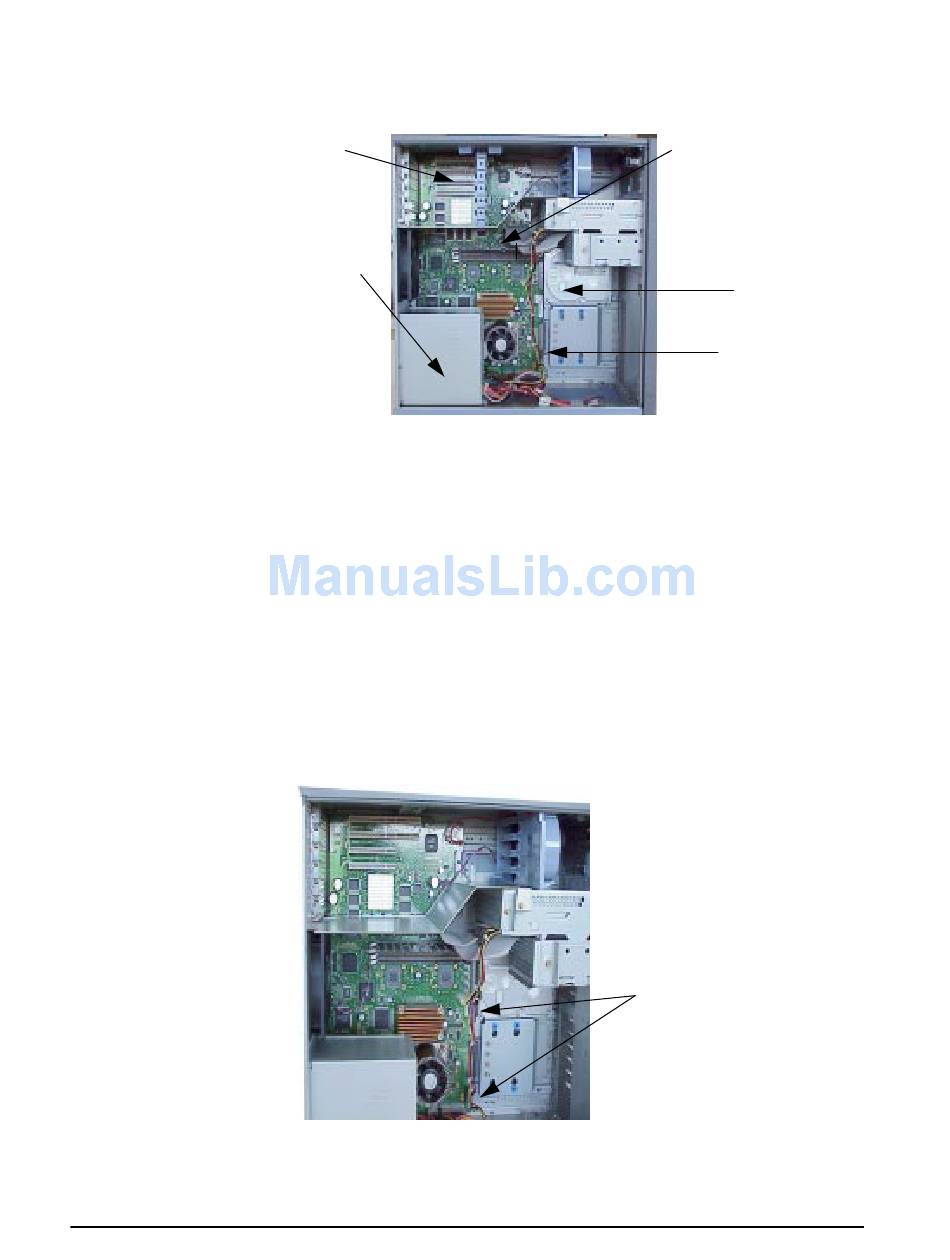

Figure 2-36 The Hard Drive Slots
2. Loosen the captive T-15 Torx thumbscrew securing the disk drive bracket to the system
board. As you grasp the tray and slide to the front of the workstation, the tray will
unseat from the chassis rail. See Figure 2-37. You may need to angle the disk drive tray
slightly to disengage the hooks as you slide it along the rail.
Figure 2-37 Removing the Hard Disk Drive Bracket
46
PCI
Slots
(4)
Power
Supply
Memory slots (4)
SCSI ID 6
SCSI ID 5
Captive T-15 Torx
Thumbscrews
Chapter 2
