Installing the Power Supply

To install the power supply perform the following steps.
1. Grasp the power supply and position the external power cord connector facing the
corresponding hole in the chassis.
2. Align the power supply hook with the support strap and slide the power supply to the
rear chassis wall. The hook will slide into the support strap notch. See Figure 2-50. on
page 60.
3. Replace the four T-15 Torx screws for securing the power supply to the chassis. See
Figure 2-47. on page 58.
4. Connect the three main power cables to the system board and connect the removable
media power cables. Remember to reattach the EMI shields to the rear of the CD drive
and the floppy drive (if installed).

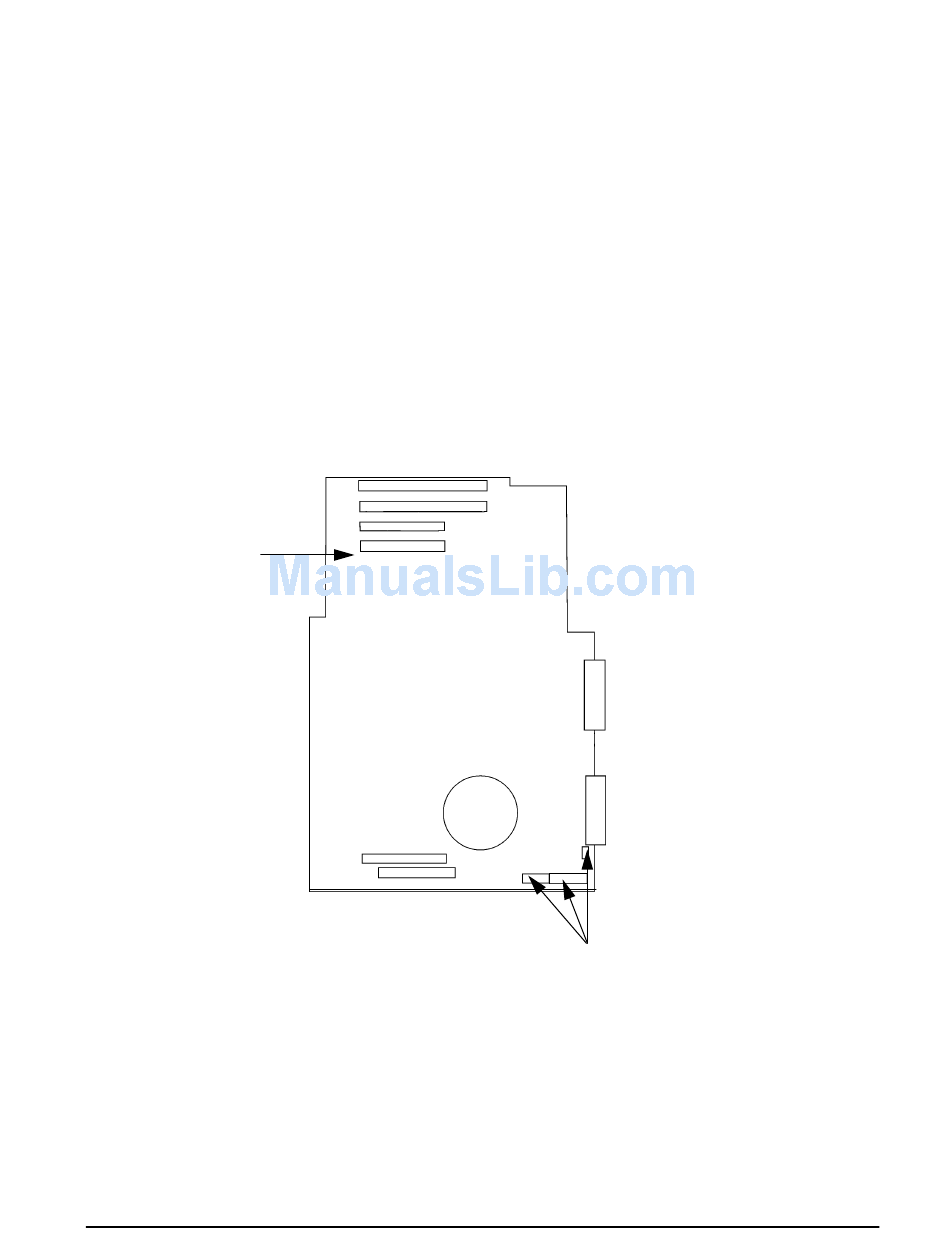

Figure 2-52. Location of Power Supply Cables on System Board
I/O Cards
Chapter 2
Parts Replacement Procedures
Power Supply Cables
Power Supply
