Parts Replacement Procedures
Hard Disk Drive

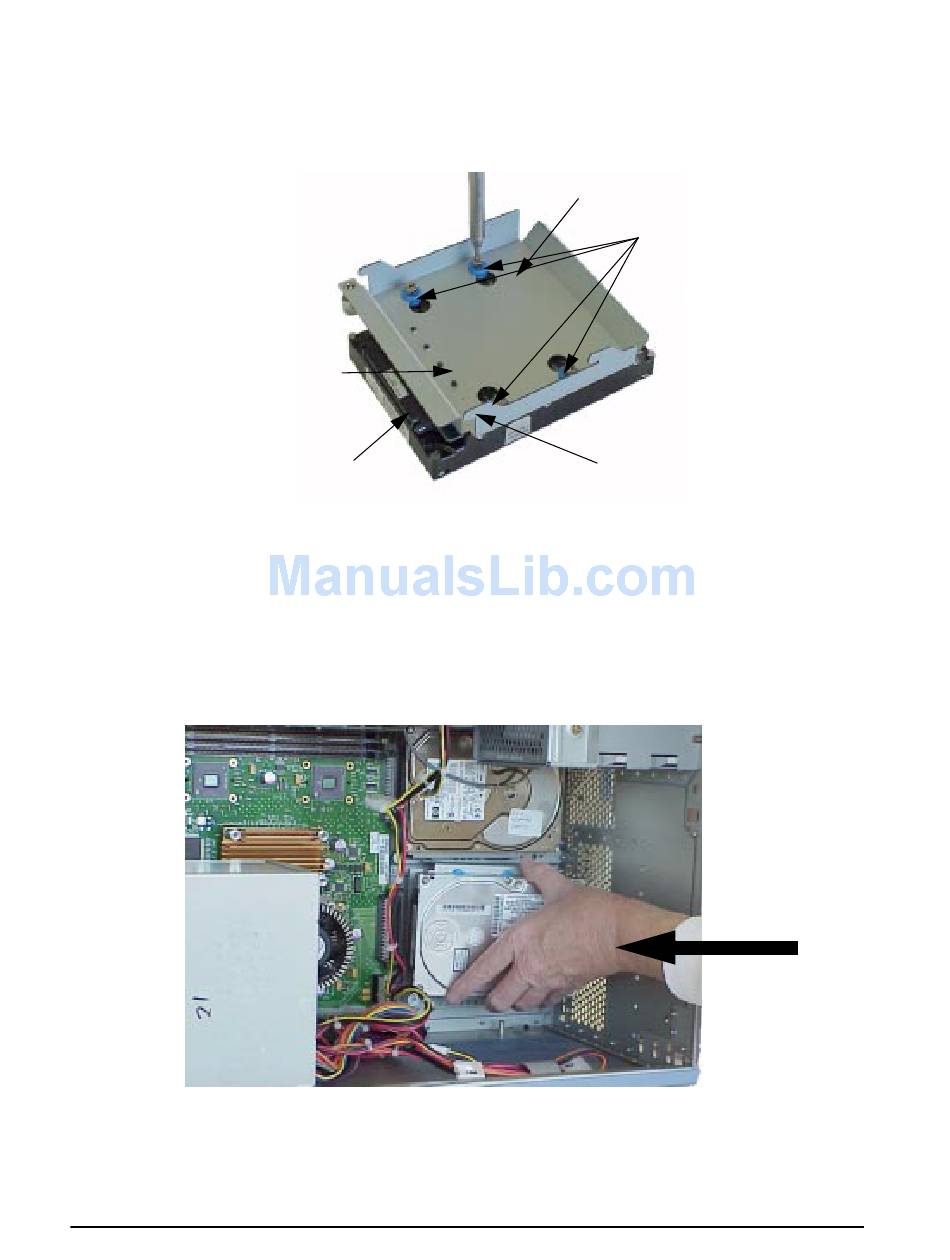

4. Insert the T-15 Torx Hard Disk Mounting Screws through the rubber mounting grommets and
into the screw holes located on the hard disk drive. See
Figure 2-40
Attaching the Hard Disk Drive
Hard Disk
Drive Bracket
5. Slide the assembly into its hard drive slot, and push inward firmly until the front of the
hard disk drive bracket is flush with the disk drive connector on the system board. See
Figure 2-41. The bracket hooks will lock into the chassis rail.
Figure 2-41. Positioning the Hard Disk Drive Assembly
48
Hard Disk
Drive
Figure 2-40
.
T-15 Torx Shoulder Screw
Mounting
Grommets
(do not remove)
Bracket Hooks
(quantity 4)
Chapter 2
