and rotate it about 15 degrees to the left. See the arrow in Figure 2-65. The fan and
speaker bracket should now be free of the clip retainer hole and the bracket stop. Now
move the whole mounting bracket to the left or toward the back of the CD Drive chassis.
The fan and speaker mounting bracket is now free of the system unit.

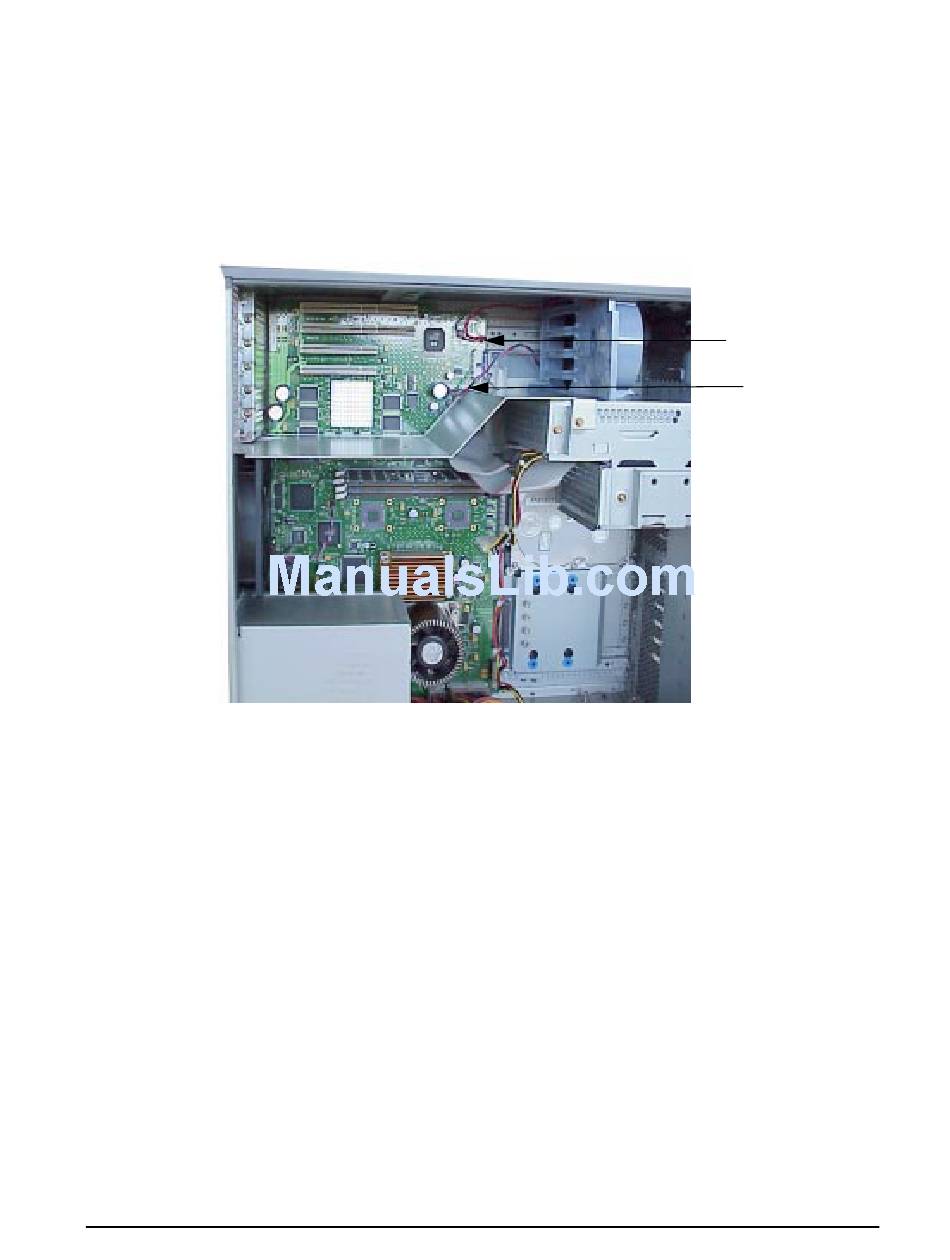

Figure 2-64. Unplugging the I/O Fan and Speaker Cables on the System Board
Chapter 2
Parts Replacement Procedures
Fans (I/O and System Board Fan)
Speaker
Cable
PCI Fan
Cable
73
