Floppy Drive

Installing a Floppy Disk Drive

Install the floppy disk drive by following the procedure covered in this section. Note that there are
no jumper settings required for the installation of the floppy disk drive.
WARNING
Turn the workstation off and unplug the power cord before installing the
floppy disk drive.
CAUTION
Floppy disk drives are susceptible to mechanical and electronic shock. When
handling the drive, always wear the static-grounding wrist strap that is supplied in
the floppy disk drive kit. Always handle the drive carefully.
1.
Perform the procedures in the sections "Opening the Front Bezel" and "Opening the Left Side
Panel." The front bezel needs to be opened so you can insert the floppy disk drive into its proper
location in the chassis. The left side panel needs to be opened so you can get to the floppy's data
connector and its power connector.
2. Remove the floppy disk drive bay's EMI shield by unscrewing the T-15 Torx screw as shown in
Figure 2-26
. Note that the floppy disk drive bay's EMI shield is located on the rear of the
removable media chassis inside the workstation. Push the cover handle away from the rear of
the removable media chassis approximately one inch. Next pull the cover handle toward you.
The floppy data cable and power cable are now accessible to you.

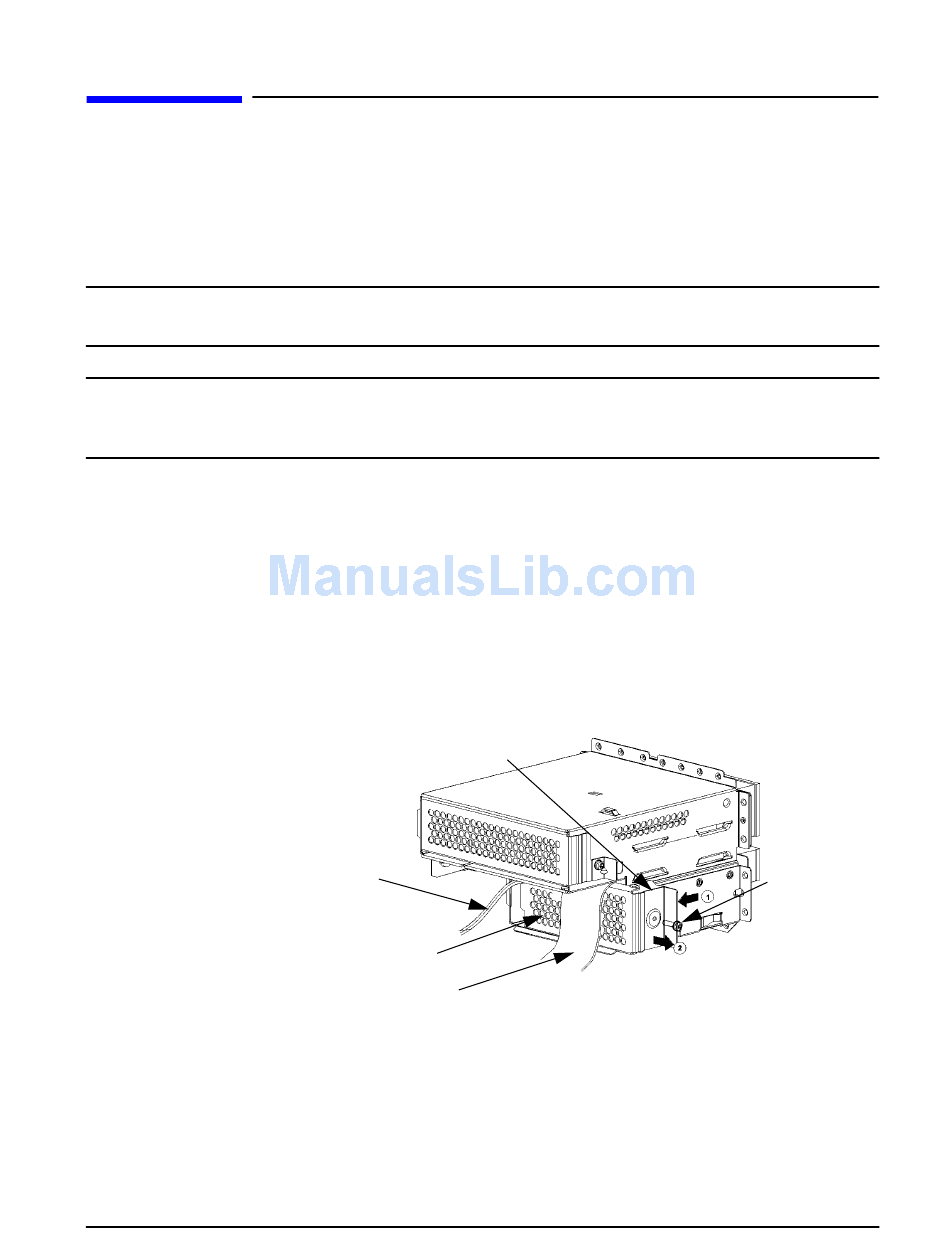

Figure 2-26 Removing the Floppy Disk Drive Bay's EMI Shield
Chapter 2
EMI Shield Handle
Power
Cable
EMI Shield
Data Cable
Parts Replacement Procedures
Floppy Drive
T-15
Torx/Slotted
Screw
