Product Exploded Diagram

Refer to the figure below for a basic parts overview of the B2000 workstation.

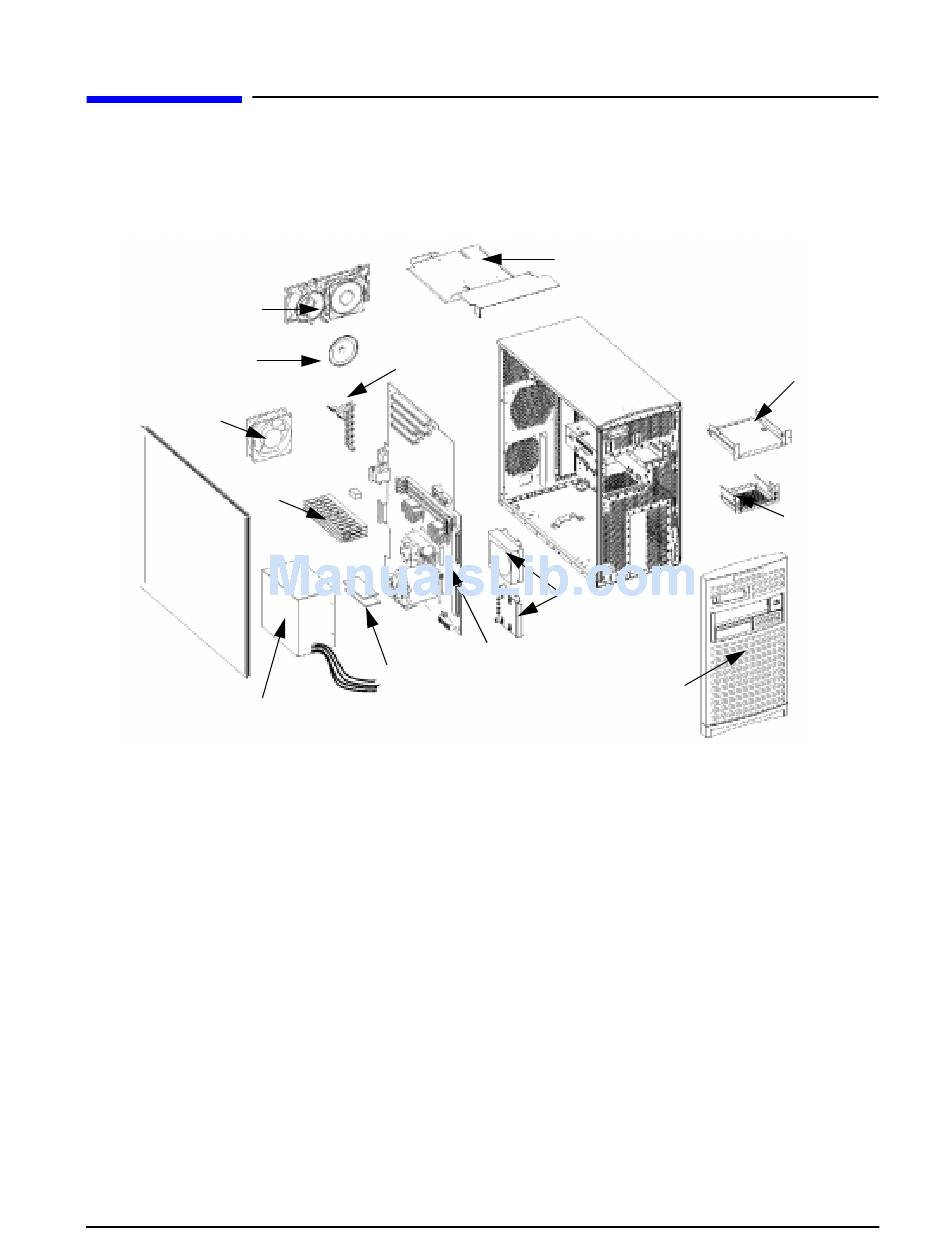

Figure 1-3. Exploded View
PCI Fan
Assembly
Speaker
System
Fan
Memory
Left
Side
Panel
Power Supply
Chapter 1
Air Divider
PCI
Retainer
Hard Disk
Drive & Bracket
System Board
Voltage Regulator
Modules (VRMs)
Getting Started
Product Exploded Diagram
CD Drive
Bracket
Floppy
Drive
Bracket
Front
Bezel
13
