2. Angle the system board assembly diagonally as you begin installation. Position the
system board flat inside the chassis.
3. Slide the system board slightly to the front and then to the rear of the workstation to
engage the chassis wall hooks. Apply pressure to completely seat the system board.

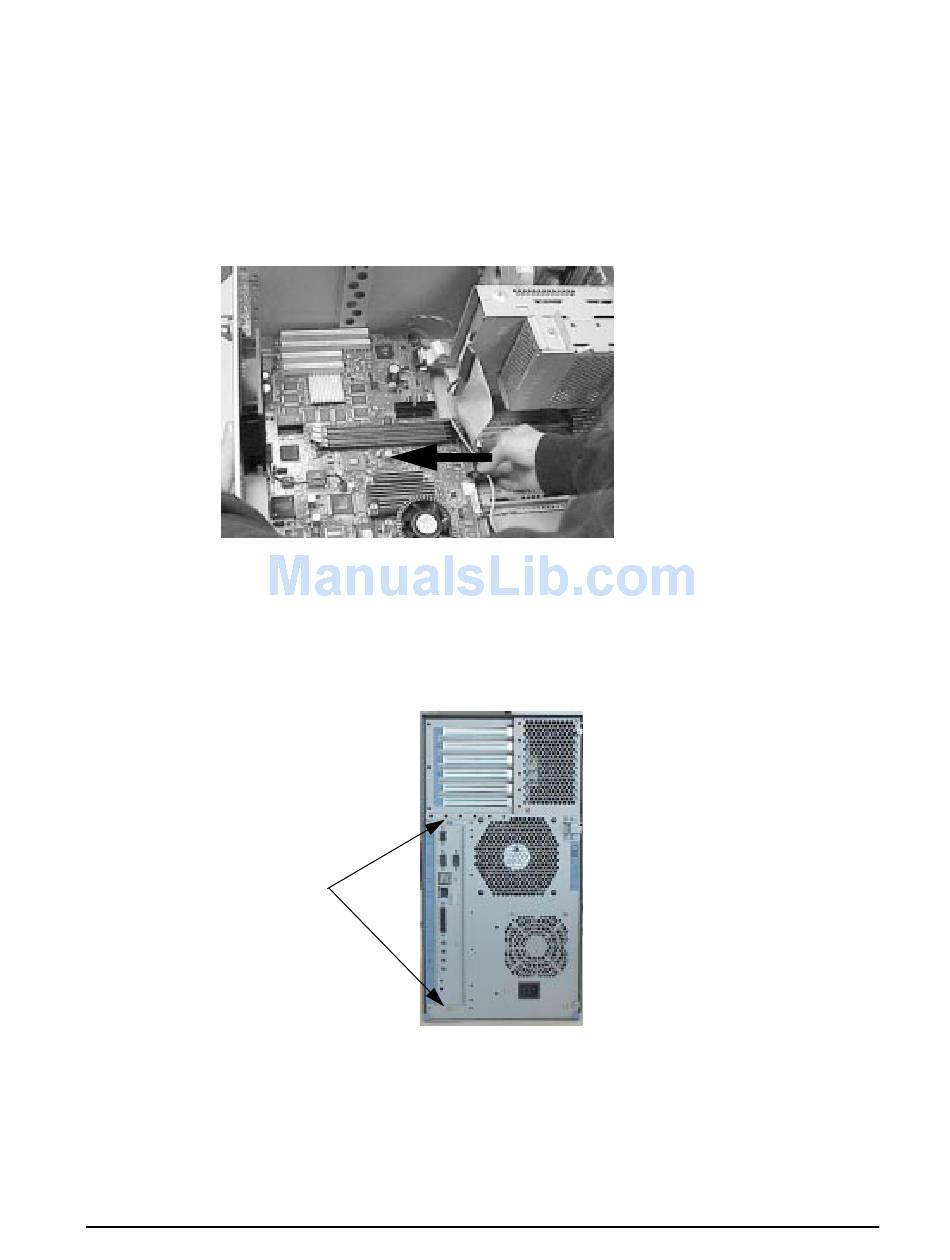

Figure 2-59. Installing the System Board Replacement
4. Insert and torque the two T-15 Torx screws that secure the system board to the rear of
the chassis. See Figure 2-60.
Figure 2-60. System Board T-15 Torx Screws
T-15 Torx
Screws
(quantity 2)
