6. Install the following components:
• Hard Disk Drive(s) and
bracket(s)
• Memory Card(s)
• Air Divider
• PCI cards (if installed)
• PCI retainer clip
• Voltage Regulator Modules
(VRMs)
• Power Supply
See Figure 2-62.

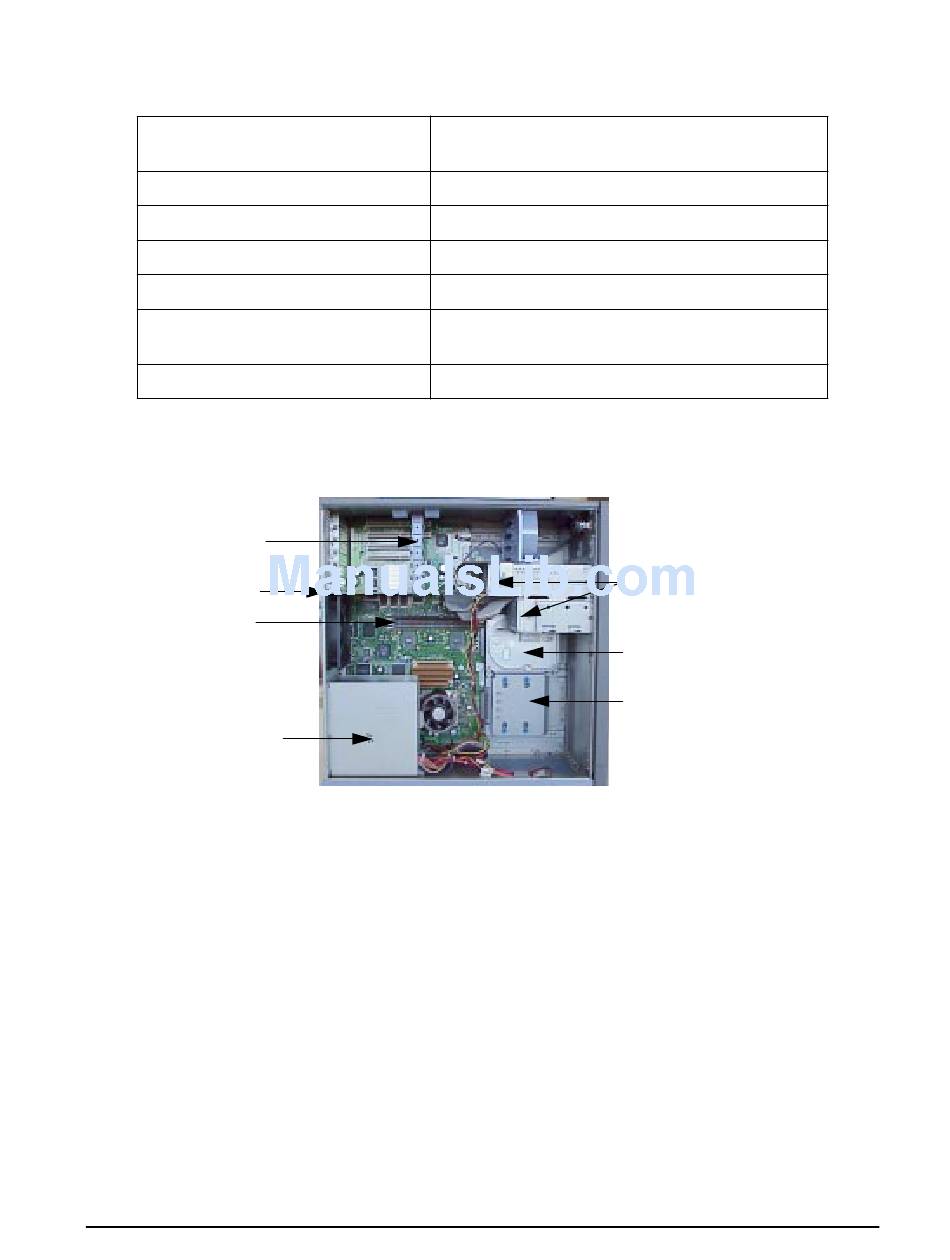

Figure 2-62. B2000 Components
PCI Retainer
Clip
Air Divider
Memory
Cards
Power Supply
& VRMs
(hidden from view)
7. Replace the EMI shield(s) and the T-15 Torx screw(s).
8. Replace the left side panel as described in "Closing the Left Side Panel" on page 17.
9. Attach all peripherals, keyboard, mouse, LAN and power to the workstation.
10.Reference Chapter 3, "Wrapping Up," on page 85 for completion of this procedure.
Chapter 2
"Installing a Hard Disk Drive" on page 45
"Installing Memory" on page 18
"Air Divider" figure on page 72
"Installing I/O Cards" on page 28
"Retainer Clip" figure on page 27
"Installing VRMs" on page 65
"Installing the Power Supply" on page 61
Parts Replacement Procedures
System Board
EMI Shields
Hard Disk Drive
Hard Disk Drive
Bracket
71
