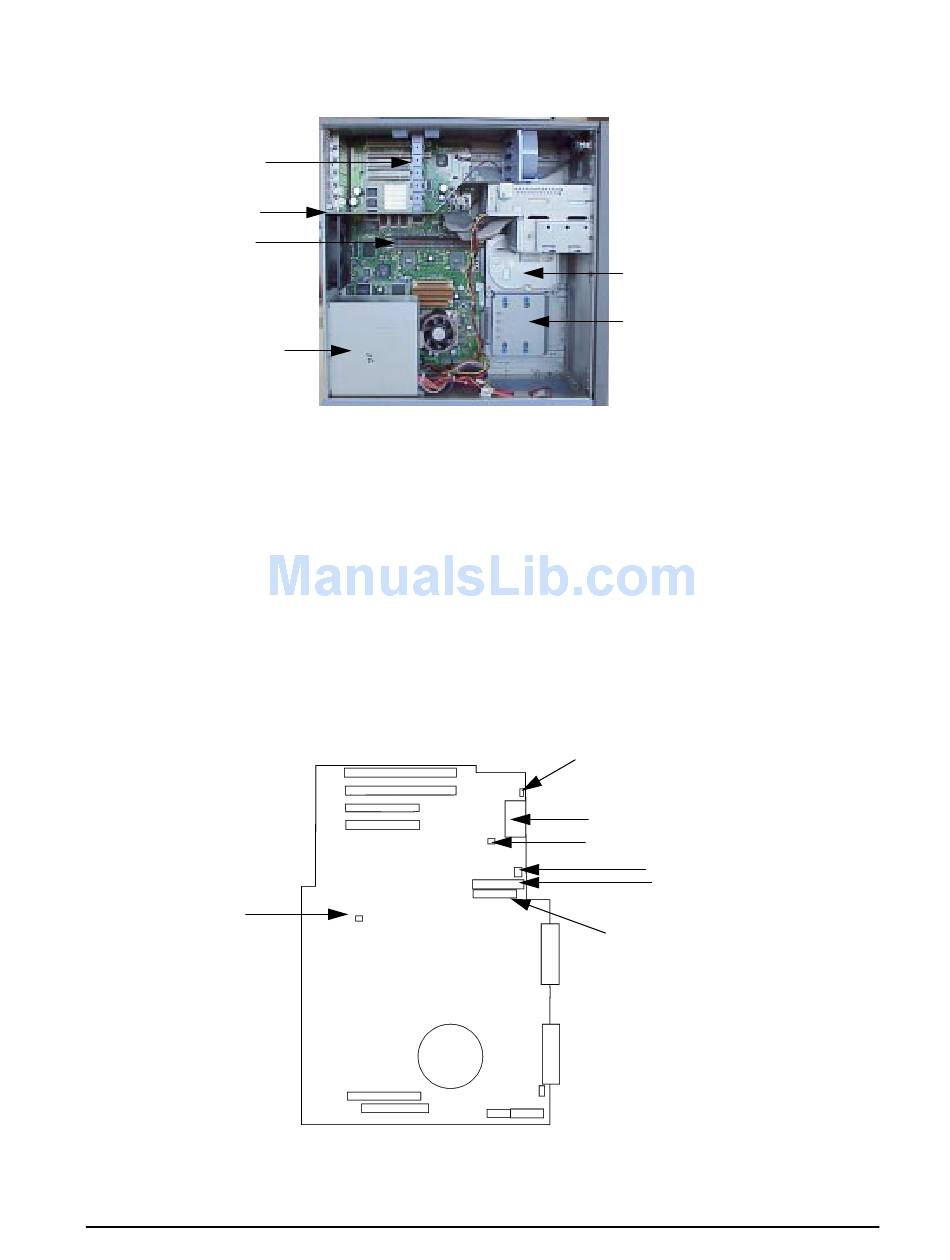

Figure 2-56. B2000 Components
PCI Retainer
Clip
Air Divider
Memory
Cards
Power Supply
& VRMs
(hidden from view)
3. Unplug the following cables:
• Speaker cable
• LCD ribbon cable
• PCI Fan cable
• CD audio cable
• CD drive data cable
• Floppy drive data cable
• System board fan cable
Figure 2-57. System Board Cables
System Fan
Cable
Chapter 2
Parts Replacement Procedures
Hard Disk Drive
Hard Disk Drive
Bracket
Speaker Cable
LCD Ribbon Cable
PCI Fan Cable
CD Audio Cable
CD Data Cable
Floppy Data Cable
System Board
