Floppy disk drives are susceptible to mechanical and electronic shock. When
CAUTION
handling the drive, always wear the static-grounding wrist strap that came in
the floppy disk drive kit. Always handle the drive carefully.
5. Remove the floppy disk drive from its shipping container. Using the four T-15 Torx/slotted blank
filler screws, mount the disk drive to the bracket as shown in
To help you properly install the floppy disk drive, you need to use the floppy disk drive
holes labeled "A" on the bracket sides. The first T-15 Torx screws should be inserted
through the tab holes of the floppy disk drive bracket that are located on the front part
of both sides of the bracket. These T-15 Torx screws should then be screwed into the
screw holes located on both sides of the floppy disk drive. These holes are located near
the floppy disk drive's front bezel. The remaining T-15 Torx screws should be insert
through the holes labeled "A" at the back part of the floppy disk drive bracket. These
screws should then be screwed into the rear screw holes located on both sides of the
floppy disk drive. The front of the floppy disk drive should extend one inch from the
front of the floppy disk drive bracket. See Figure 2-29.

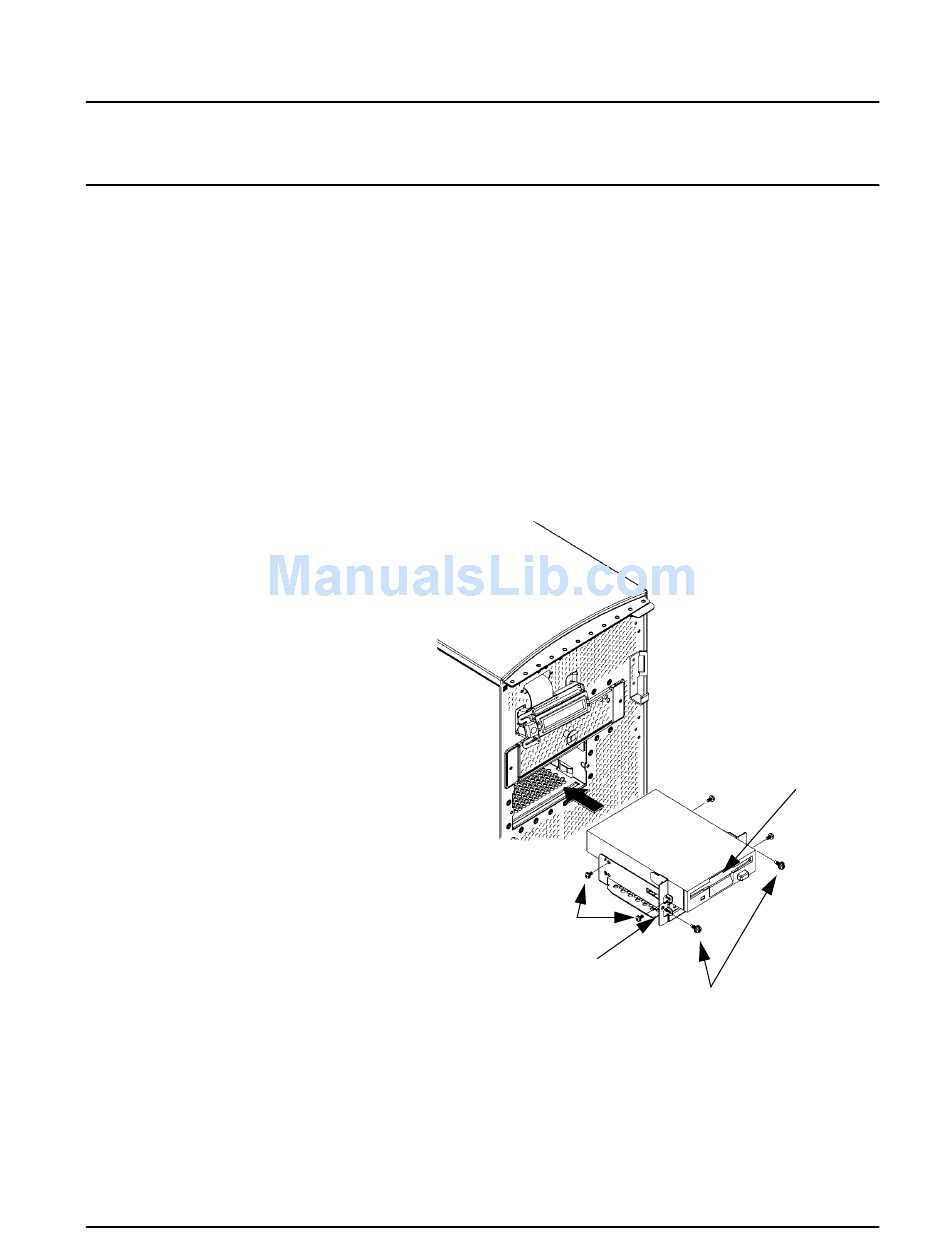

Figure 2-29 Installing the Floppy Disk Drive
6. Slide the floppy disk drive and its bracket into the workstation chassis as shown in
Figure 2-29.
7. Plug the floppy power cable into its connector. Next, plug the data cable into its
connector. Note that the connectors are keyed for proper insertion. See Figure 2-30.
Chapter 2
Floppy Disk Drive Mounting
Screws (T-15 Torx Screws)
Floppy Disk Drive Bracket
Parts Replacement Procedures
Figure 2-29
.
Bracket Screws
Floppy Drive
Floppy Disk
Drive Front
Panel
