Parts Replacement Procedures
CD Drive
9. Make sure that the audio, ATAPI and power cables are positioned so that they come out of the
bottom edge of the CD drive bay's EMI shield. This edge is rounded to prevent cutting of the
Figure 2-25
cables. See
screw. When you replace the EMI shield, The ferrite bead on the ATAPI cable must remain
outside of the CD drive bay's EMI shield.

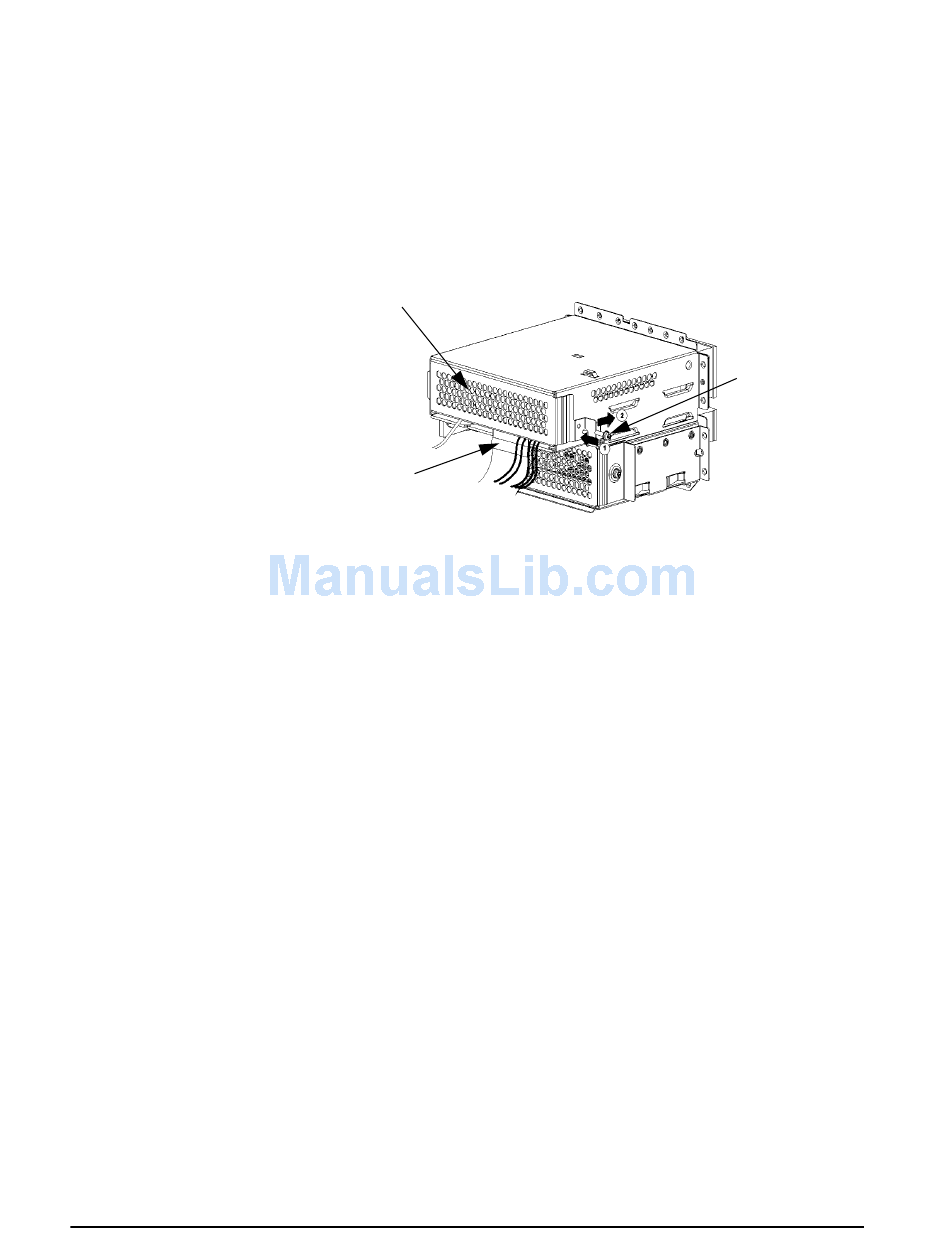

Figure 2-25 Replacing the CD Drive Bay's EMI Shield
10.Complete the installation of the CD drive by replacing the front and side panels of the
workstation as explained in the sections "Closing the Left Side Panel" and "Closing the
Front Bezel" in this chapter. Before closing the workstation panels, inspect to ensure
that cables are properly stored inside the chassis.
11.Verify that the CD drive is recognized by the system. See the section "Verifying the CD
Drive Operation" in Chapter 2, "Using Your CD Drive."
36
. Next, secure the CD drive bay's EMI shield using the T-15 Torx/slotted
EMI Shield
Ferrite Bead
T-15
Torx/Slotted
Screw
Chapter 2
