Parts Replacement Procedures
Floppy Drive

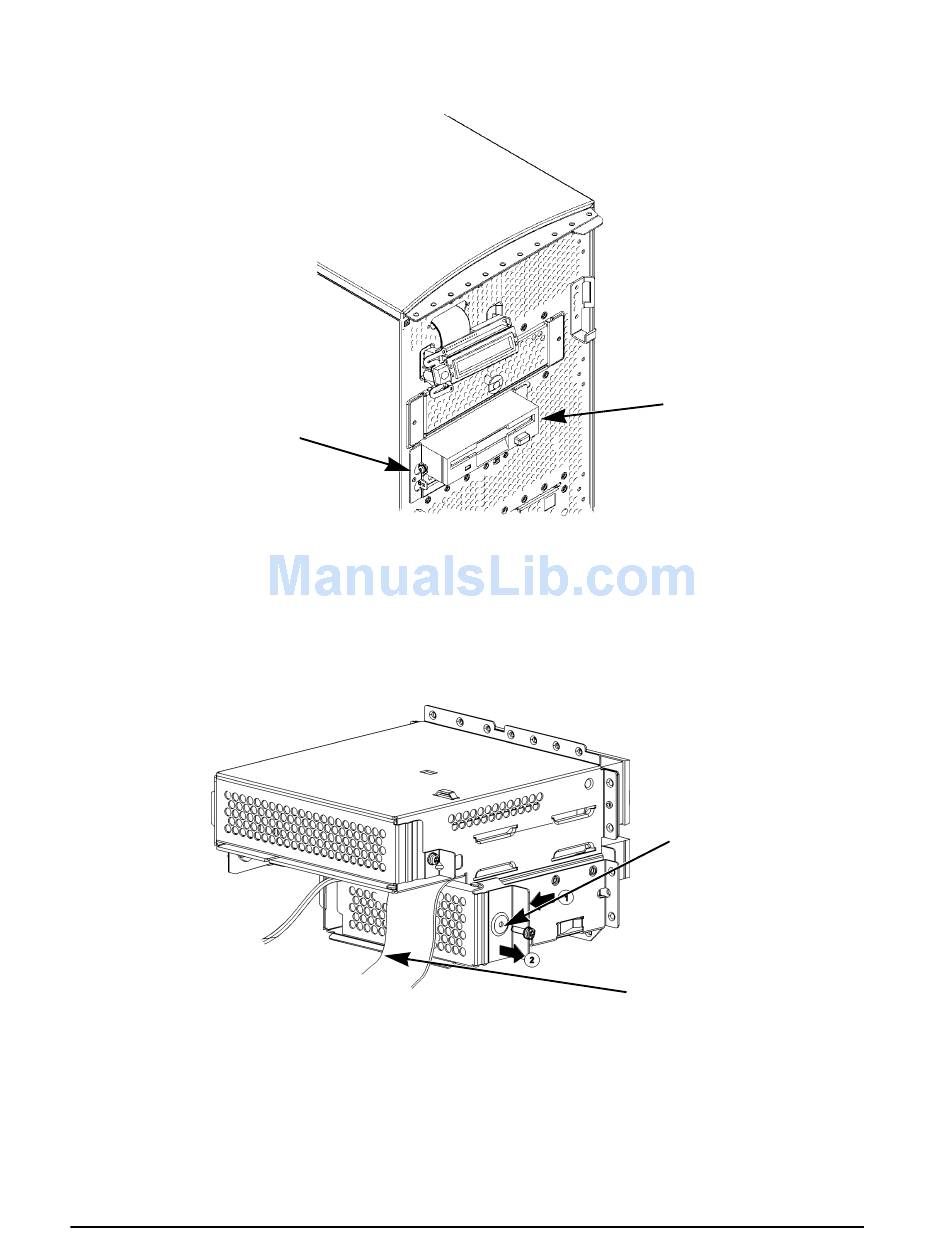

Figure 2-33. Floppy Drive Removal: External
T-15 Torx Screw
2. Facing the opened side of the workstation, remove the T-15 Torx screw that secures
the back cover of the floppy drive bay, and then remove the back cover. Reach into the
back of the floppy drive bay and disconnect the two cables: the floppy drive power
cable and the ribbon cable. Disconnect these same cables from the system board and
set them aside.
Figure 2-34. Floppy Drive Removal
42
T-15 Torx Screw
T-15 Torx Screw
Ribbon Cable
Chapter 2
