Figure 2-20 Front of Workstation with the Front Bezel Removed
4. Remove both CD drive bracket screws (T-15 Torx/slotted screws) and pull the CD drive
bracket out of the chassis assembly as shown in Figure 2-21. Next remove the four CD
drive blank filler screws (T-15 Torx/slotted screws) as shown in Figure 2-21 and remove
the blank filler from the bracket. You are now ready to mount the CD drive into the CD
drive bracket. Note you will need the blank filler screws to mount the CD drive.

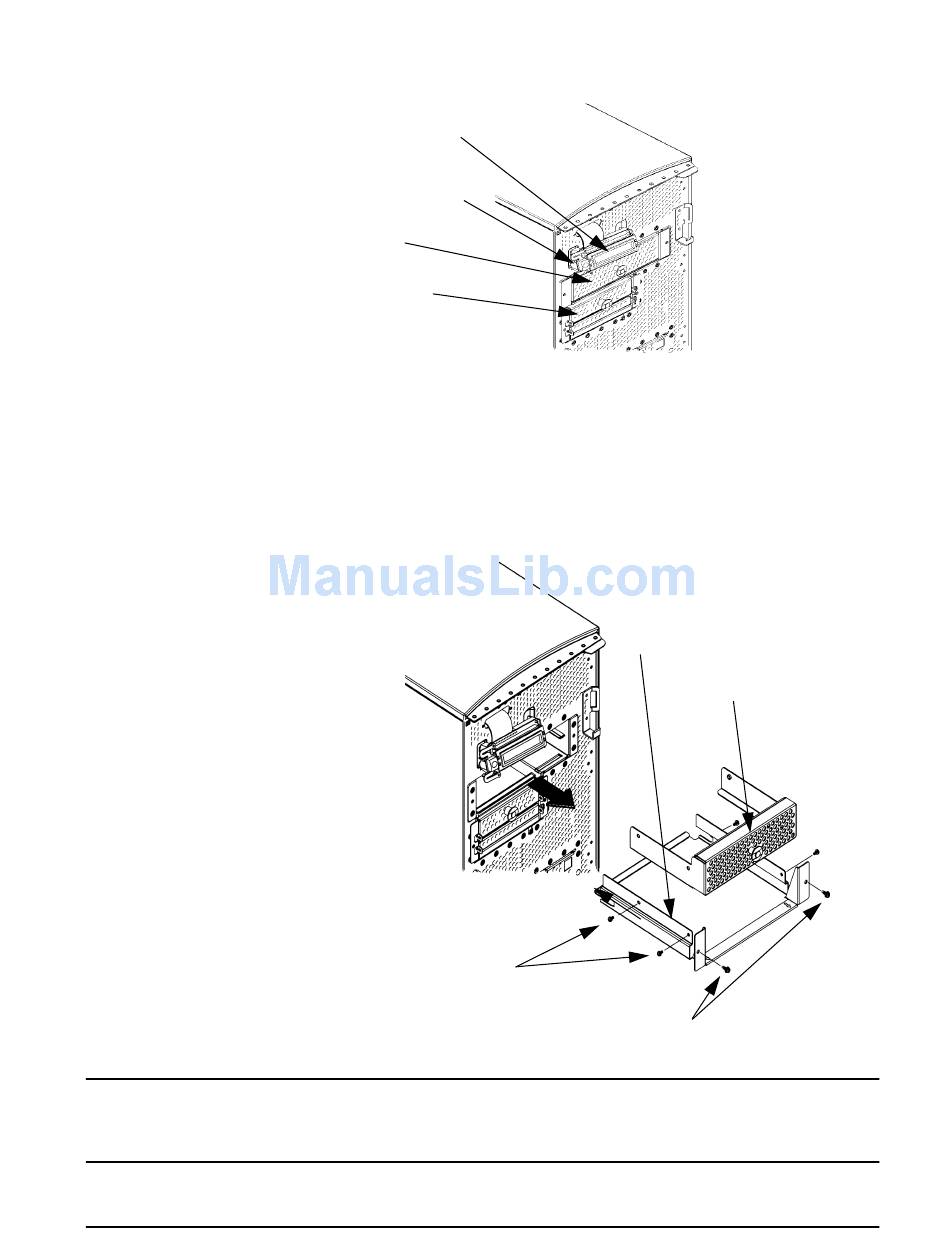

Figure 2-21 Removing the CD Drive Bracket and Blank
CD drives are susceptible to mechanical and electronic shock. When handling
CAUTION
the drive, always wear the static-grounding wrist strap that came in the CD
drive kit. Always handle the drive carefully.
Chapter 2
LCD Display
Power Switch
CD drive
Blank
Floppy Disk
Blank
Blank Filler Screws
(T-15 Torx Screws)
Parts Replacement Procedures
CD drive Bracket
Blank
Bracket Screws
CD Drive
33
