Parts Replacement Procedures
CD Drive
your workstation, you must verify that the master/slave/CSEL jumper is set in the CSEL
position. Since different manufacturers of CD drives have different locations for the CSEL
jumper, look at the documentation that is supplied with your CD drive for the proper
location of this jumper.
CD drives are susceptible to mechanical and electronic shock. When handling
CAUTION
the drive, always wear the static-grounding wrist strap that came in the CD
drive kit. Always handle the drive carefully.
1. Perform the procedures in the sections "Opening the Front Bezel" and "Opening the
Left Side Panel." The front bezel needs to be opened so you can insert the CD drive into
its proper location in the chassis. The left side panel needs to be opened so you can get
to the CD drive's audio, ATAPI and power connectors.
2. Remove the CD drive bay's EMI shield by unscrewing the T-15 Torx/slotted screw as
shown in Figure 2-19. Note that the CD drive's EMI shield is located on the rear of the
removable media chassis inside the workstation. Push the cover handle away from the
rear of the removable media chassis approximately one inch. Next pull the cover handle
toward you. The audio, ATAPI and power cables are now accessible.

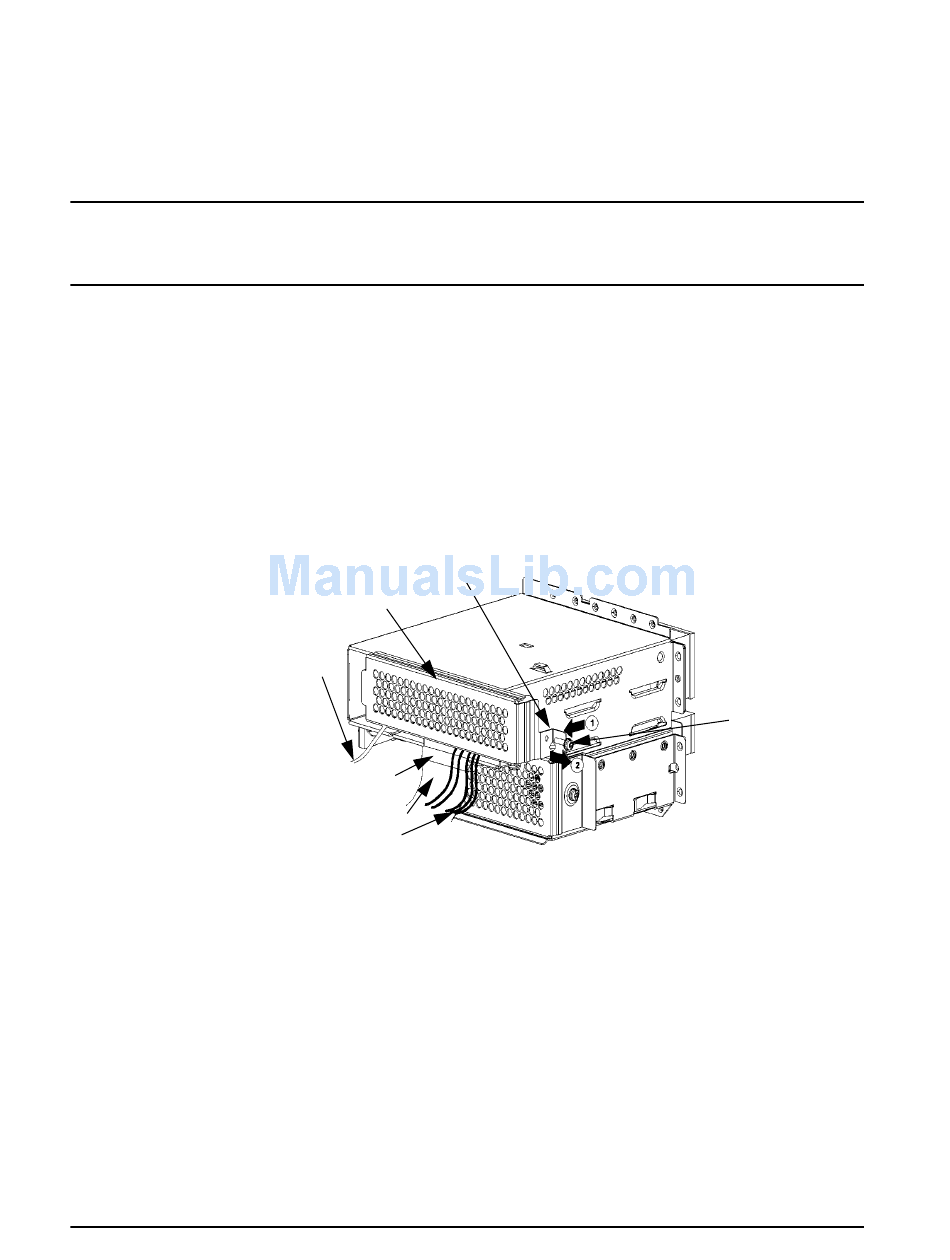

Figure 2-19 Removing the CD Drive Bay's EMI Shield
3. Rotate the workstation around to view the front of the workstation as shown in Figure
2-20.
32
EMI Shield Handle
EMI Shield
Audio
Cable
Ferrite Bead
ATAPI Cable
Power Cable
T-15
Torx/Slotted
Screw
Chapter 2
