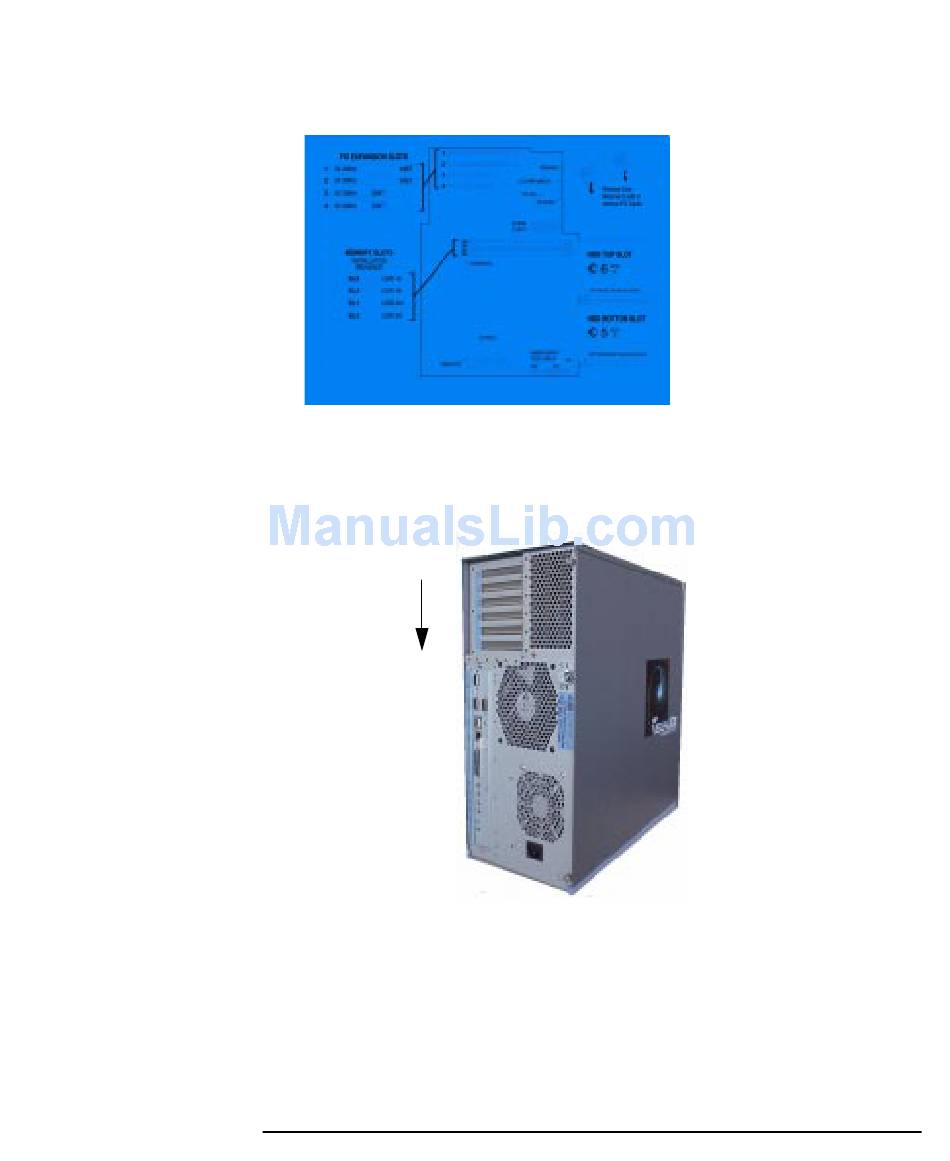

Figure 4-5
Figure 4-6
B2000 System Label
Note that the four I/O slots as seen from the back of the workstation are
labeled from top to bottom starting with one. See Figure 4-6.
I/O Slot Numbering
I/O Slot 1
I/O Slot 4

Removing I/O Cards

You will need a T-15 Torx driver or flathead screwdriver to remove the
I/O slot bulkhead screws.
Here are the steps required for remove an I/O card from the workstation.
Chapter 4
Changing Your Workstation's Hardware Configuration
I/O Cards
83
