2. Press downward on the ejector tabs located on both sides of the DIMM connector. See
Figure 4-41. This raises the DIMM card for easy extraction.

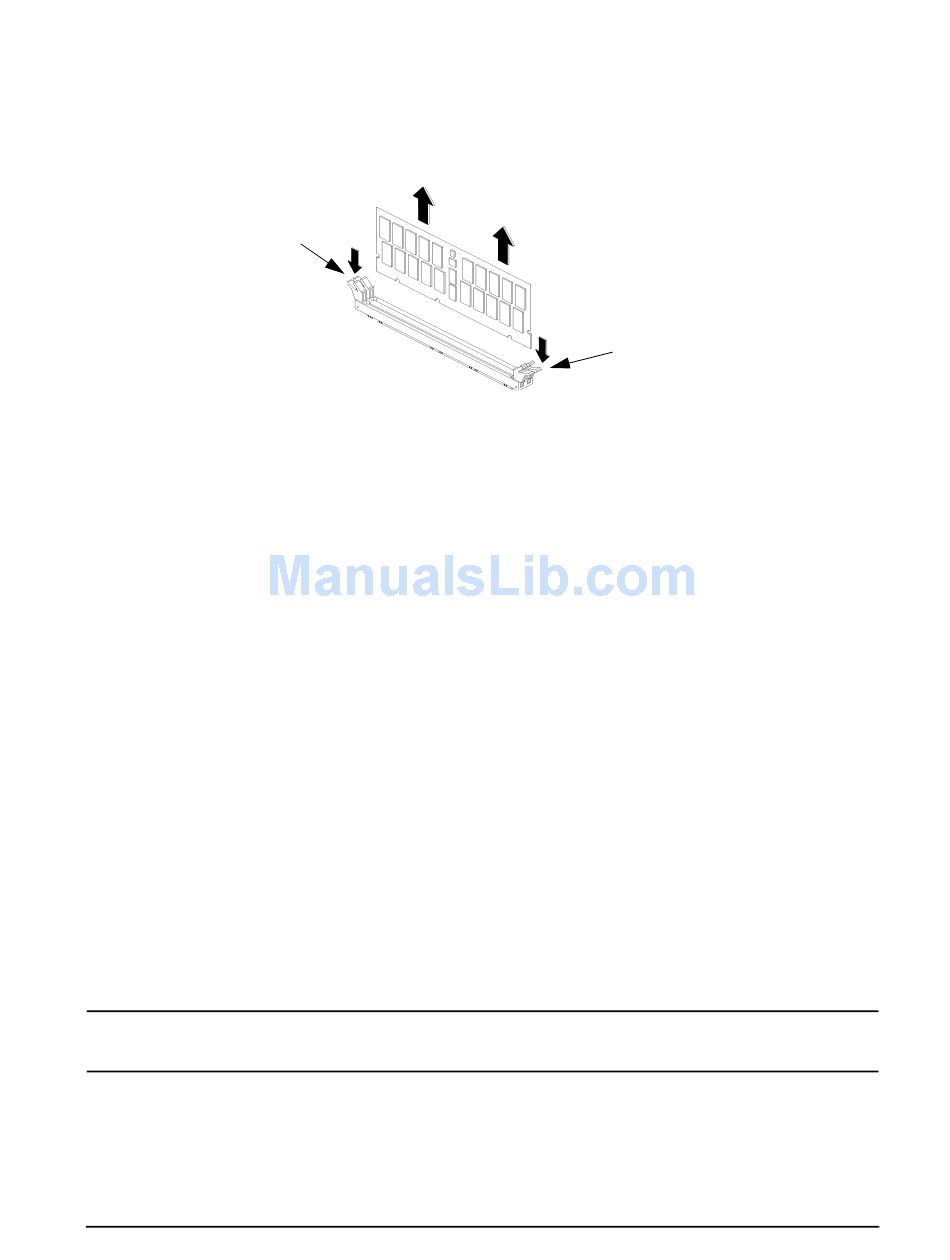

Figure 4-41. Removing Memory Cards

Ejector Tab
3. Lift up evenly on the outside edges of the DIMM card to remove it. See Figure 4-41.
4. Reinstall the remaining DIMM cards in the correct order by following the instructions
in the next section, "Replacing or Installing Additional Memory DIMMs." Refer to
Figure 4-43 or the B2000 system label located on the chassis floor for the proper
loading sequence for the DIMM cards.
5. Close the left side panel of the workstation as explained in the section "Closing the Left
Side Panel" and plug the workstation's power cord into the electrical outlet.
6. Verify that the reinstallation of the remaining DIMM cards was successful by following
the steps in the section "Displaying the Current Memory Configuration" on page 156.
Replacing or Installing Additional Memory DIMMs
Before continuing with this section, carefully read the following list of considerations:
• Use the procedure described in "Displaying the Current Memory Configuration" on
page 156 before attempting to install additional memory DIMMs in the workstation.
• Review the steps involved in installing DIMMs before you begin.
• Insert DIMMs in the order shown in Figure 4-43 or in the B2000 system label located on
the floor of the workstation chassis.
• Note the proper orientation for DIMMs when inserting them into their connectors.
• Use the Boot Console Handler to verify that the system recognizes the additional
DIMMs when you have finished installation.
WARNING Power off the workstation and unplug the power cord before
replacing or installing additional memory DIMMs.
