HP Visualize c3700 Owner's Manual page 124

Changing Your Workstation's Hardware Configuration
Hard Disk Drives
2. Loosen the T-15 Torx thumbscrew securing the disk drive tray to the

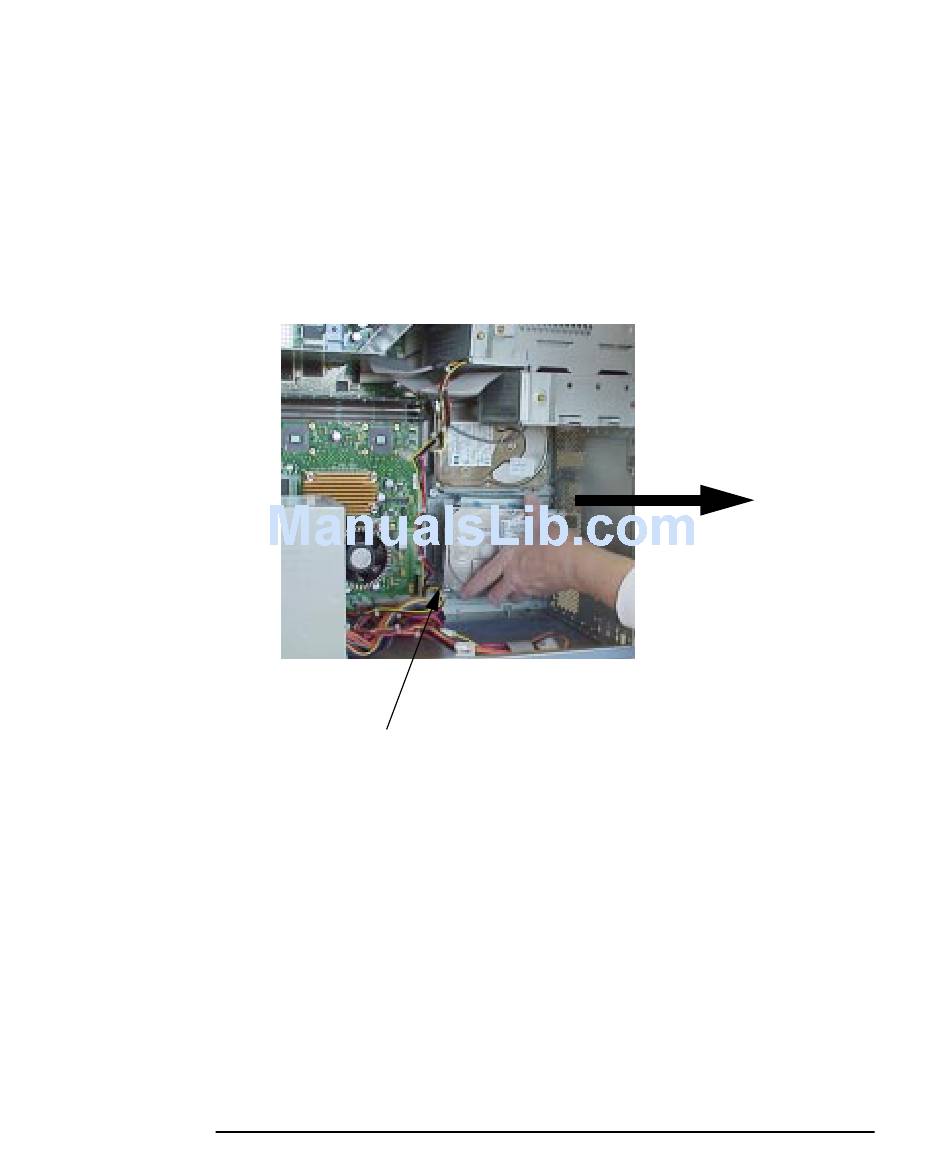

Figure 4-43 Removing the Hard Disk Drive
124
system board. As you grasp the bracket and slide to the front of the
workstation, the bracket will unseat from the chassis rail. See Figure
4-43. You may need to angle the disk drive bracket slightly to
disengage the hooks as you slide it along the rail.
Captive T-15 Torx Thumbscrew
Chapter 4
