Goodrive100-PV Series Solar Pump Inverter
3.1.3 Installation mode

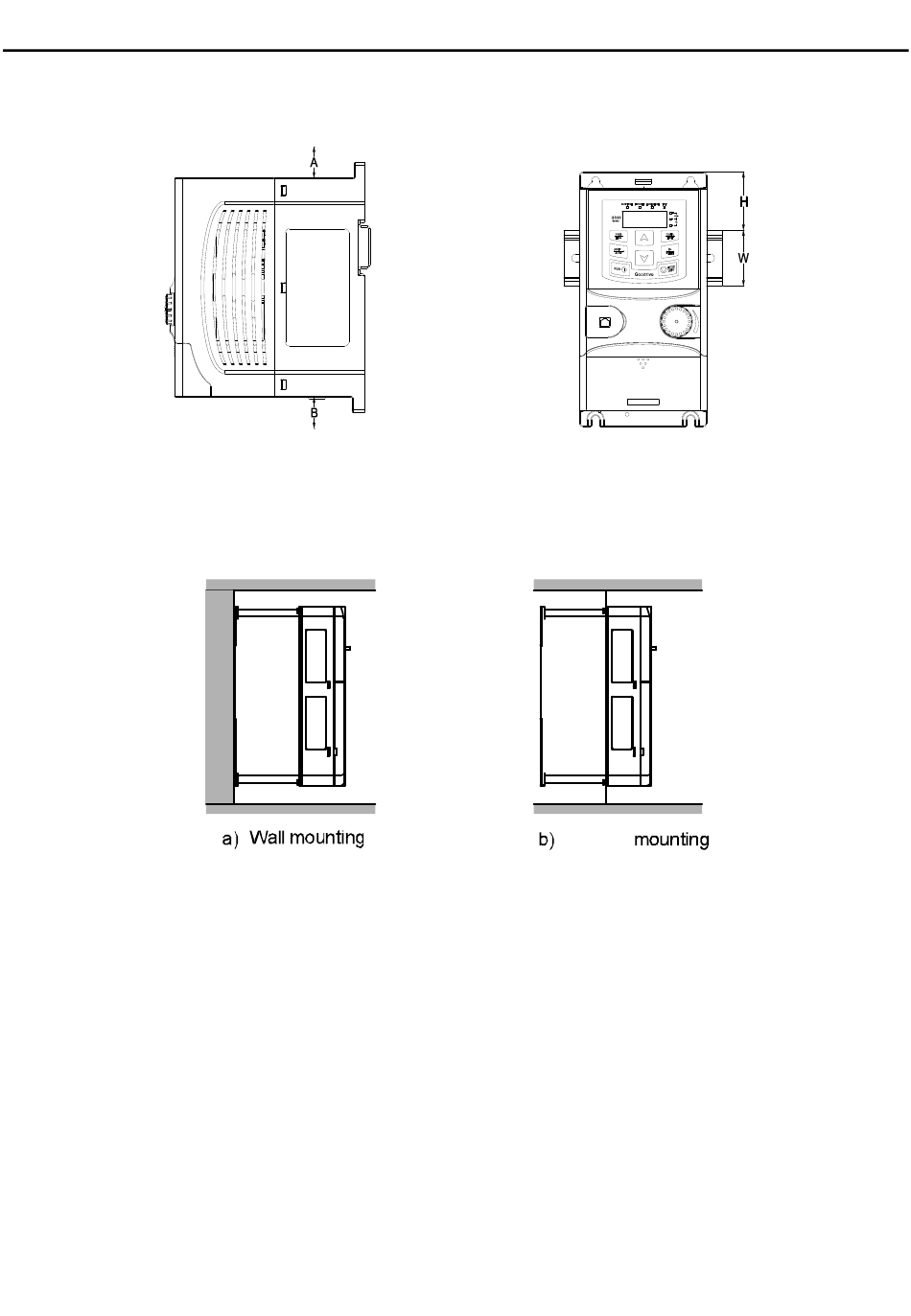

(1) The inverters ≤ 2.2kW support wall mounting and rail mounting.
a) Wall mounting
Note: The minimum space of A and B is 100mm. H is 36.6mm and W is 35.0mm.
(2) The inverters ≥ 4kW support wall mounting and flange mounting.
1.
Mark the locations of installation holes. For details about the holes, see the inverter
dimension diagram in the appendix.
2.
Fix the screws or bolts into the marked locations.
3.
Lean the inverter against the wall.
4.
Fasten the tightening screws on the wall.
b) Rail mounting
Flange
-10-
Installation guidelines
