Goodrive100-PV Series Solar Pump Inverter
Appendix C Power frequency & PV switching solution
C.1 Solution introduction
Generally, inverters do not allow simultaneous connection of power frequency and PV. If such
simultaneous connection is required, switching control circuit needs to be configured externally.
The following figure shows a solution for reference.
AC breaker (QF1)
A
B
AC Input
C
220V ~
DC breaker (QF2)
+
PV Input
-

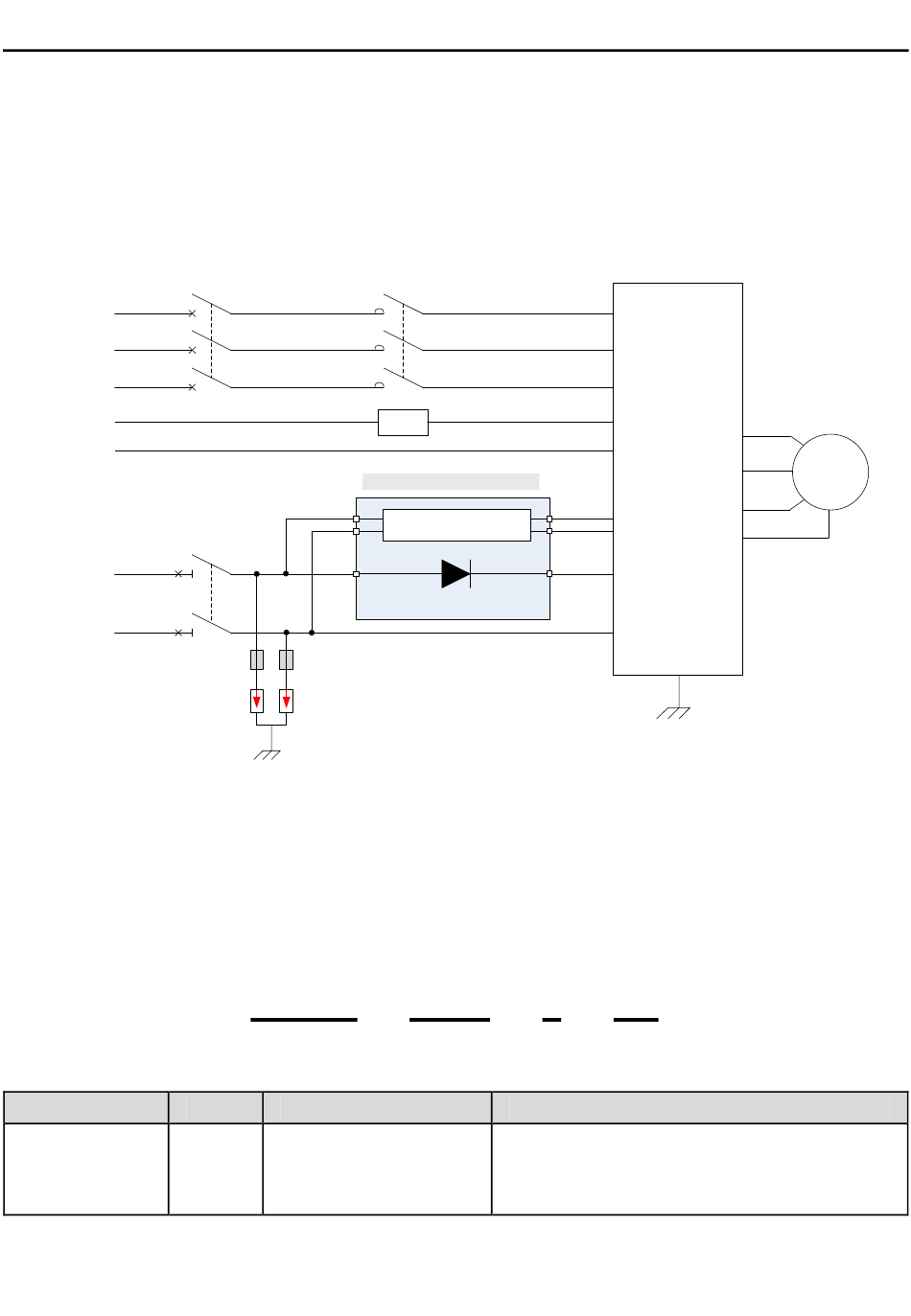

Figure C–1 Inverter power frequency & PV switching solution
See C.1.1 for specifications and model selection of QH100-PV switching module, whose necessary
low-voltage apparatuses include QF1, KM1, QF2, FU, and SPD. See section C.1.2 for model
selection information.
C.1.1 QH100-PV switching module
C.1.1.1 Models and specification
Field
Product
series
abbreviation
AC Contactor (KM1)
A1

QH100-PV Switching Module

PV+
PV-
PV+
Fuse(FU)
SPD(Surge Protection Device)
QH100 – 055A – 4 – PV
Sign
Description
Product series
abbreviation
Power frequency & PV switching solution
KM1
A2
Voltage Detection Circuit
COM
Diode(D)
QH100 series power frequency & PV
switching module
-66-
R
R
S
S
T
T
RO1B
U
RO1C
V
GD100-PV
Inverter
W
S
HDI
COM
PE
(+)
(+)
(-)
Content
M
