1 .1 .7.Box Detection Sensor

The Solution includes a box sensor that needs to be installed at the end of the conveyor in a way that it is triggered when a box is

ready to be picked up.

Fig. 1-3: Box Sensor

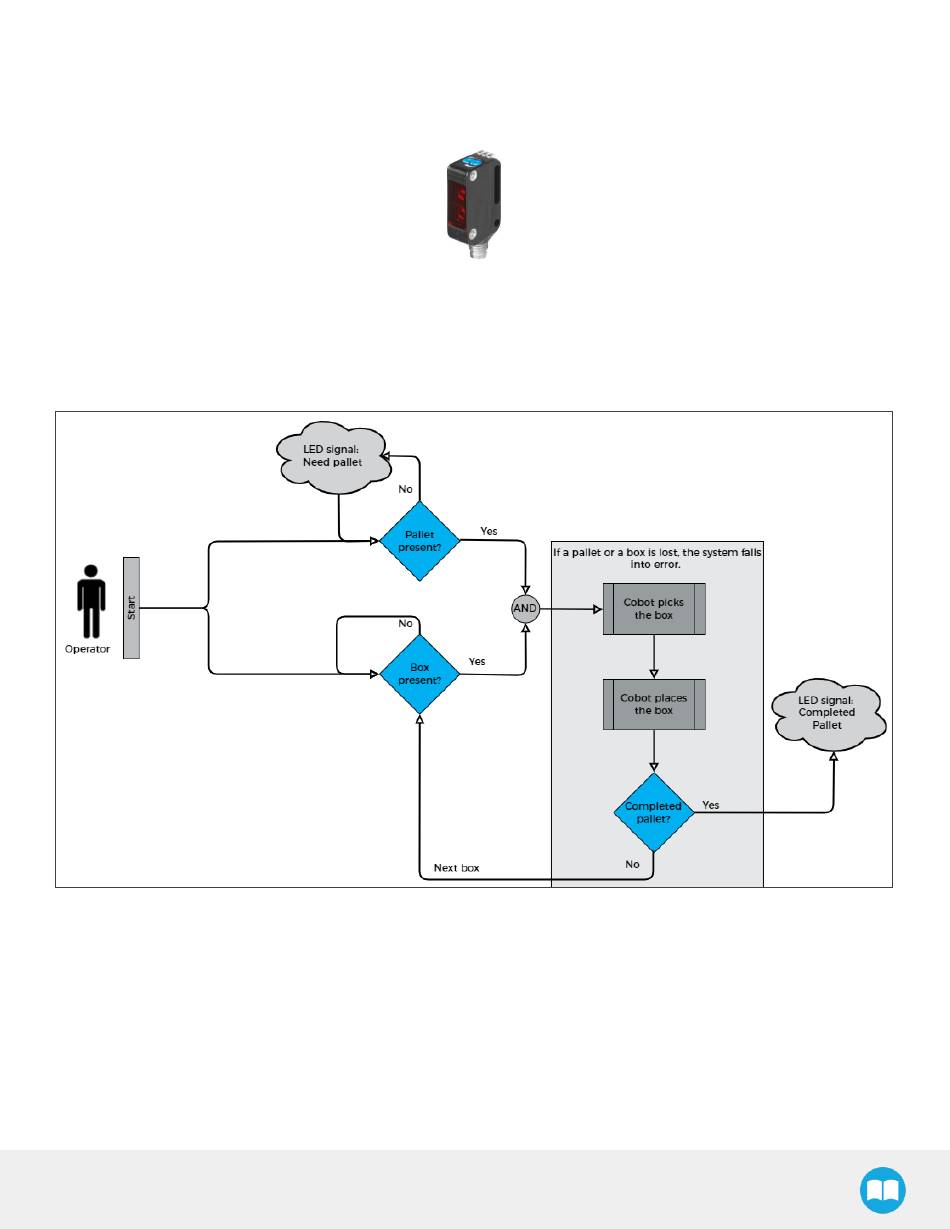

1 .2.Palletizing Operation Diagrams

The following diagrams explain the logical operation of the Palletizing Solution based on the operator's actions, as well as

responses such as signals, pallet and box sensor behaviors, etc.

Please refer to the Status Lights section for further information about light states.
