5.3.2 Numerical Local Control Panel
The numerical local control panel is divided into 4 functional sections.
•
A. Numeric display.
•
B. Menu key.
•
C. Navigation keys and indicator lights (LEDs).
•
D. Operation keys and indicator lights (LEDs).
1
A
Setup 1
2
Status
4
B
Menu
9
C
On
6
Warn
Alarm
8
Hand
D
On
13

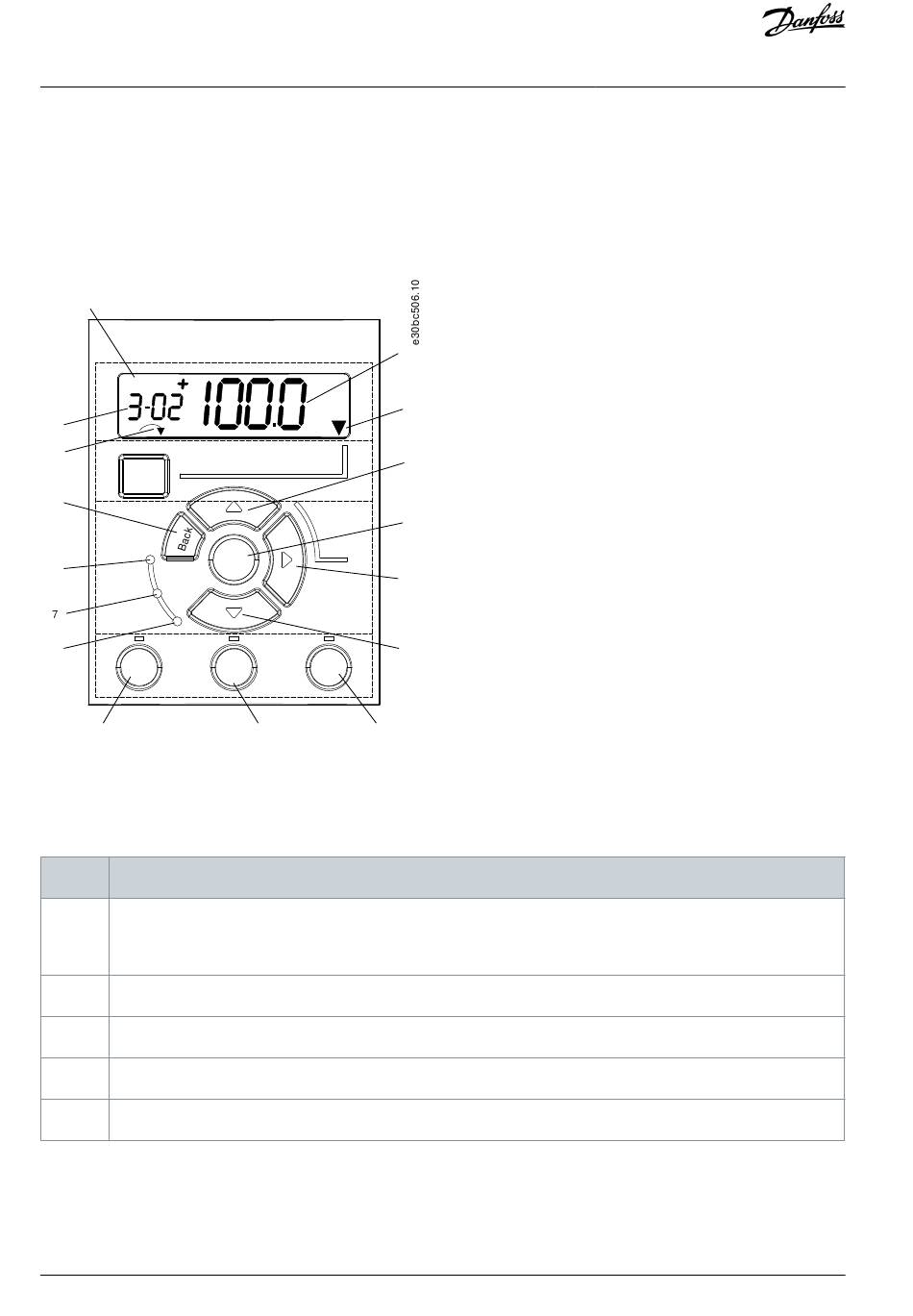

Illustration 22: View of the NLCP
A. Numeric display
The LCD display is backlit with 1 numeric line. All data is shown in the LCP.
Table 6: Legend to Section A
Number
Function
1
The set-up number shows the active set-up and the edit set-up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When active and edit set-ups differ, both numbers are shown in
the display (set-up 12). The number flashing indicates the edit set-up.
2
Parameter number.
3
Parameter value.
4
Motor direction is shown at the bottom left of the display. A small arrow indicates the direction.
5
The triangle indicates whether the LCP is in Status, Quick Menu, or Main Menu.
