4 How to Program

4.1 The Graphical and Numerical LCP

The easiest way to program the adjustable frequency drive is to use the Graphical Local Control Panel ( 102). It is necessary to consult the adjustable
frequency drive Design Guide when using the Numeric Local Control Panel ( 101).

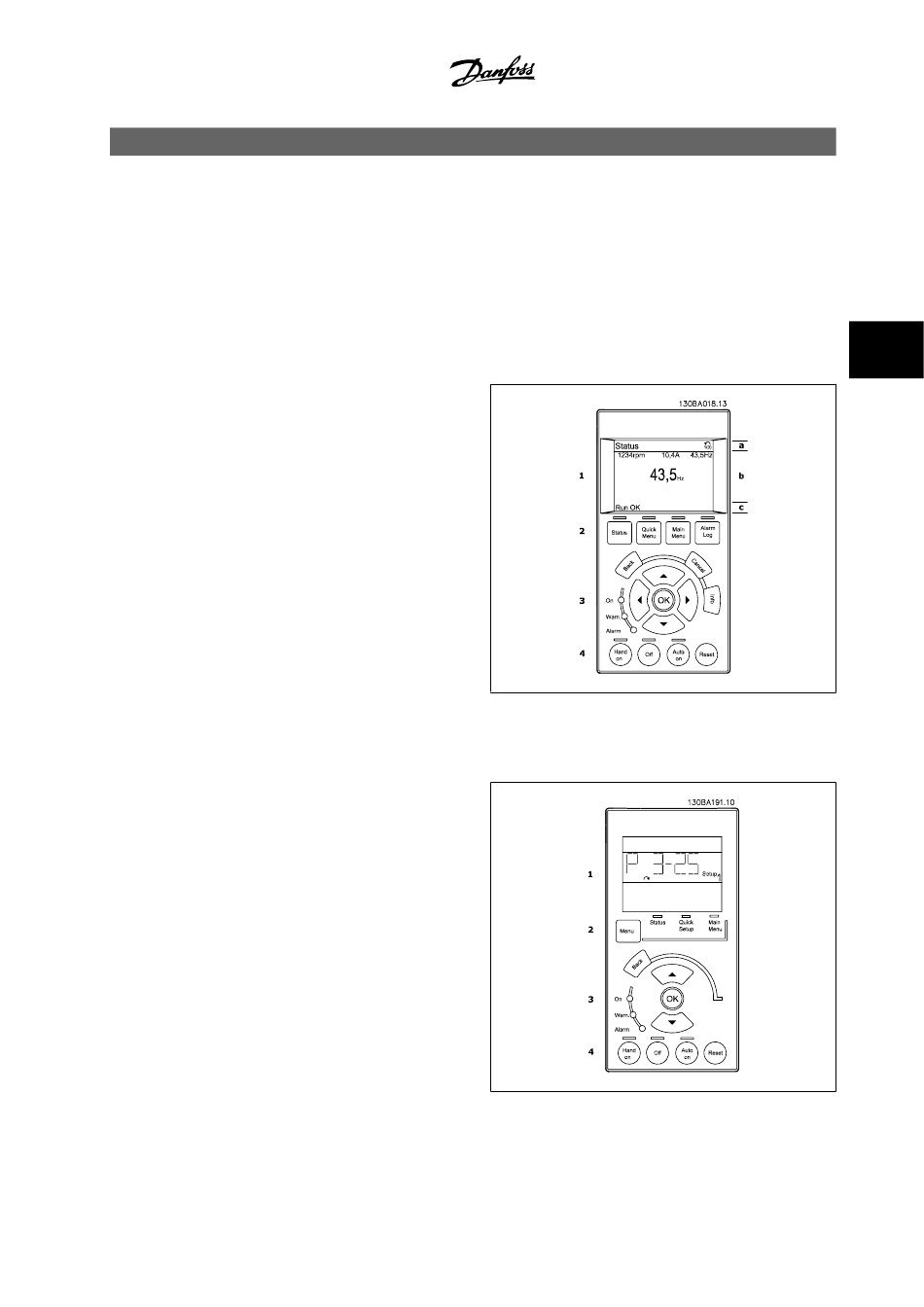

4.1.1 How to Program on the Graphical

The following instructions are valid for the graphical ( 102):
The control panel is divided into four functional groups:
1. Graphical display with status lines.
2. Menu keys and LEDs - changing parameters and switching be-
tween display functions.
3. Navigation keys and lights (LEDs).
4. Operation keys and LEDs.
All data is displayed in a graphical display, which can show up to five
items of operating data while displaying [Status].
Display lines:
a. Status line: Status messages displaying icons and graphics.
b. Line 1-2: Operator data lines displaying data defined or chosen
by the user. By pressing the [Status] key, up to one extra line
can be added.
c. Status line: Status messages displaying text.

4.1.2 How to Program on the Numerical Local Control Panel

The following instructions are valid for the numerical ( 101):
The control panel is divided into four functional groups:
1. Numerical display.
2. Menu keys and LEDs - changing parameters and switching be-
tween display functions.
3. Navigation keys and lights (LEDs).
4. Operation keys and LEDs.
