VLT® Midi Drive FC 280
Operating Guide
c.
Fasten the plate with 2 screws as shown in

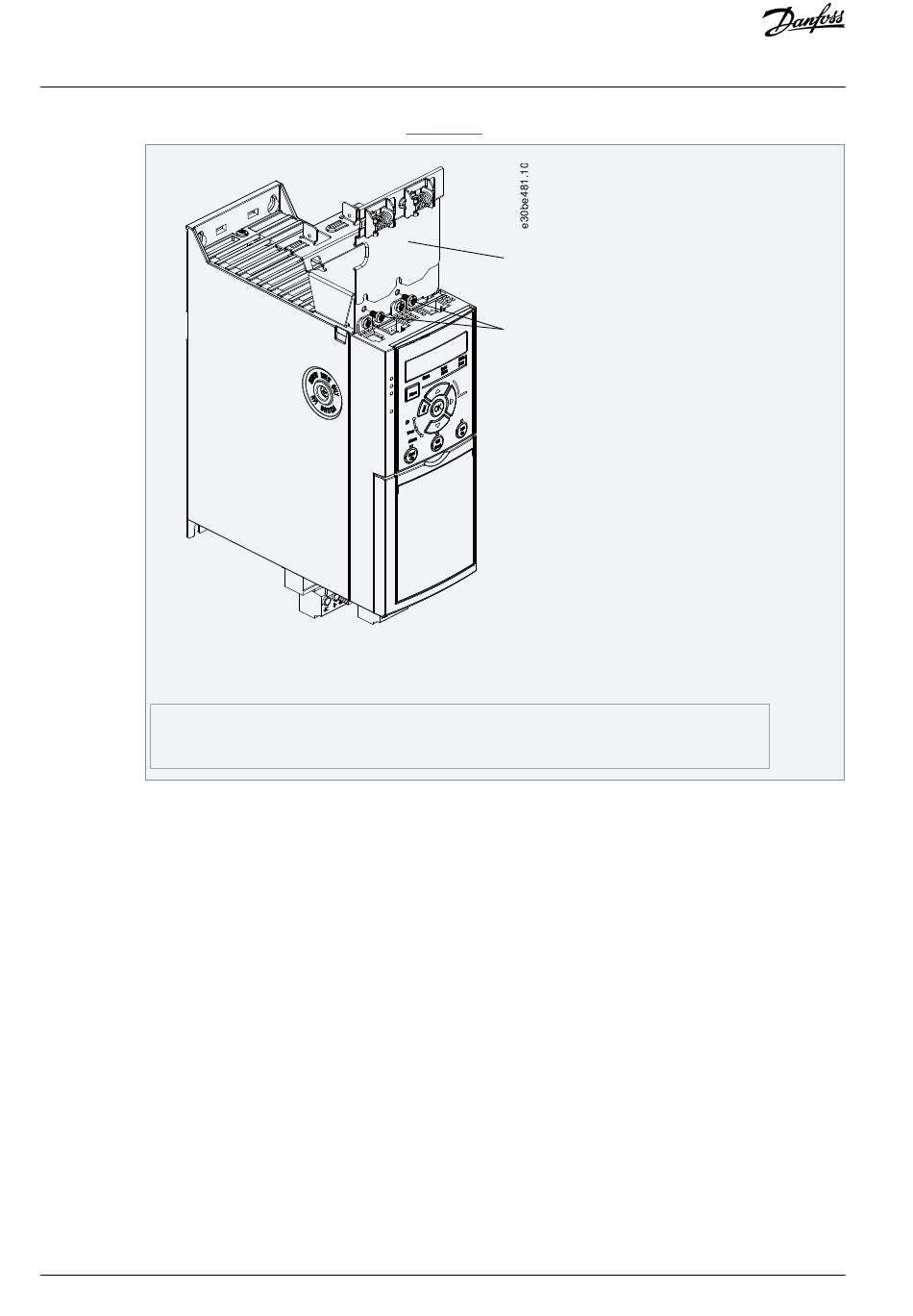

Illustration 7: Fasten the Vertical Decoupling Plate with Screws
The illustration shows Ethernet-based connectors (RJ45). The actual connector type depends on the selected
fieldbus variant of the drive.
1
2
3.
Push the Ethernet cable connectors (RJ45) into the sockets in the control cassette.
4.
Place the Ethernet cables between the springloaded metal clamps to establish mechanical fixation between the cables and
the clamps.
20 | Danfoss A/S © 2022.02
Vertical decoupling plate
Screws
Illustration
7. Tightening torque is 0.7–1.0 Nm (6.2–8.9 in-lb).
1
2
Mechanical Installation
AQ381425076031en-000101 / 130R1223
