Danfoss VLT FC 280 Operating Manual page 73

VLT® Midi Drive FC 280
Operating Guide
FC 280 #1
T37
T38
T39
FC 280 #2
T39
T38
T37
FC 280 #3
T37
T38
T39

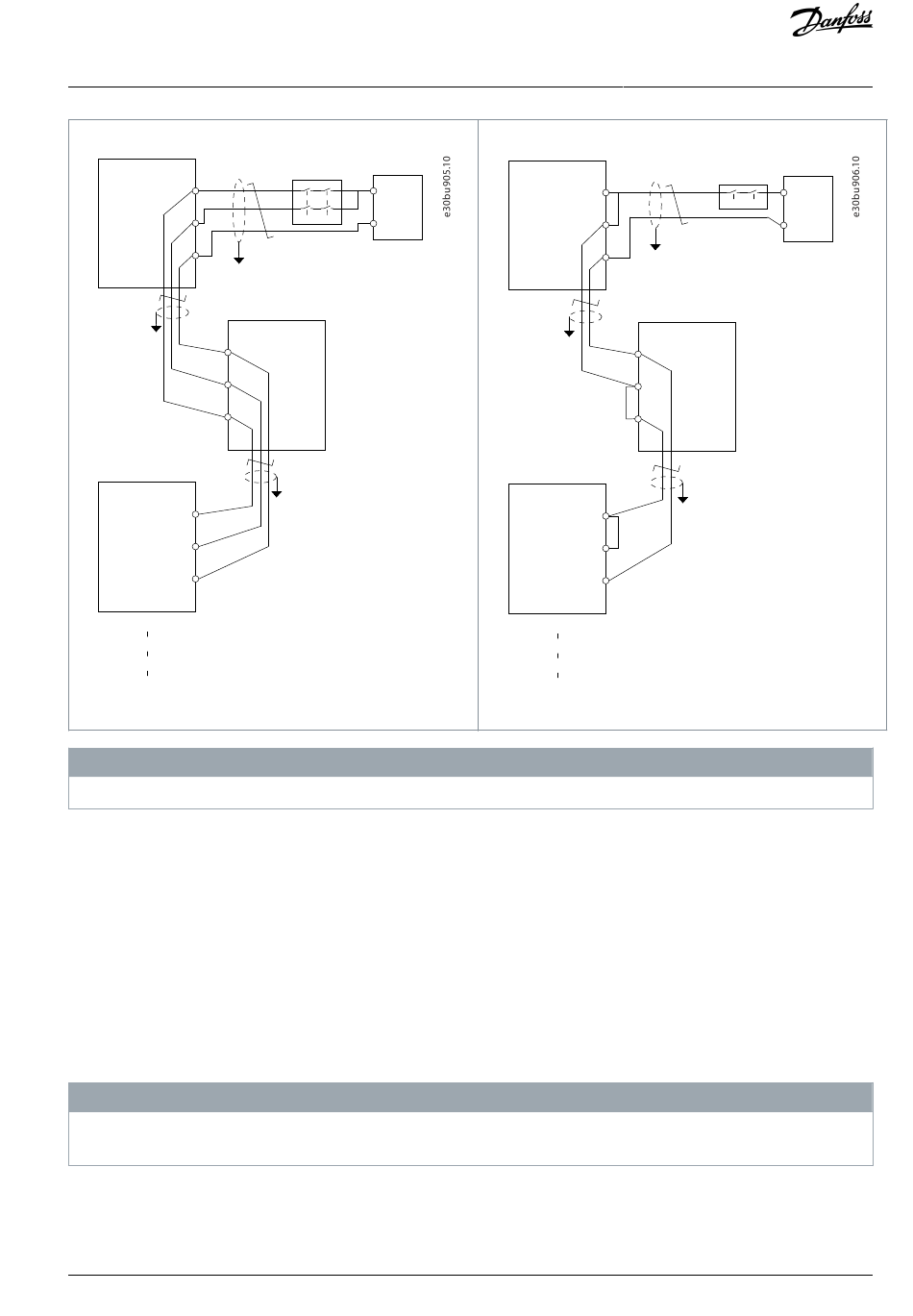

Illustration 45: Daisy Chain with 2 Output Safety Relays
The total cable length for daisy chain shall not exceed 20 m (65.6 ft).
6.7 Configuration
6.7.1 Configuration with MCT 10
6.7.1.1 Safety Functions Configuration
Safety-related parameters must be configured via a PC with MCT 10 tool and can also be copied between drives with the LCP or a
memory module.
Use the MCT 10 Set-up Software Safe Plug-in to configure the safety functions and to enable the PROFIsafe communication. The
safety functions to be carried out by the safety option are defined in the MCT 10 safe plug-in:
• Configurations of the safety functions.
• Setting of limit values for the safety functions.
Always perform the required commissioning test. The commissioning test report is automatically generated via the Safe Plug-in
in MCT 10 after downloading the parameters to the safety option.
Danfoss A/S © 2022.02
External power
Safety relay
+24 V
Ch1 Ch2
0 V
N O T I C E
N O T I C E
FC 280 #1
T37
T38
T39
FC 280 #2
T39
T38
T37
FC 280 #3
T37
T38
T39
Illustration 46: Daisy Chain with Single Output Safety Relay
AQ381425076031en-000101 / 130R1223 | 73
Safety Functions
External power
Safety relay
+24 V
Ch1 Ch2
0 V
