3 Mechanical Installation

3.1 Unpacking

3.1.1 Items Supplied

Items supplied vary according to product configuration.
• Make sure that the items supplied and the information on the nameplate correspond to the order confirmation.
• Check the packaging and the drive visually for damage caused by inappropriate handling during shipment. File any claim for
damage with the carrier. Retain damaged parts for clarification.
1
VLT
Midi Drive
22
www.danfoss.com
21
T/C: FC-280PK37T4E20H1BXCXXXSXXXXAX
20
P/N: 134U2184 S/N: 000000G000
0.37kW 0.5HP
19
IN: 3x380-480V 50/60Hz, 1.2/1.0A
OUT: 3x0-Vin 0-500Hz, 1.2/1.1A
18
IP20 SIL3 PL.e
17
Danfoss A/S, 6430 Nordborg, Denmark
IND.CON.EQ E358 502
US LISTED
5AF3 See manual for mains fuse
R
16
CAUTION / ATTENTION:
See manual for special condition/mains fuse
Voir manual de conditions speciales/fusibles
WARNING / AVERTISSEMENT:
15
Stored charge, wait 4 min.
Charge résiduelle, attendez 4 min.

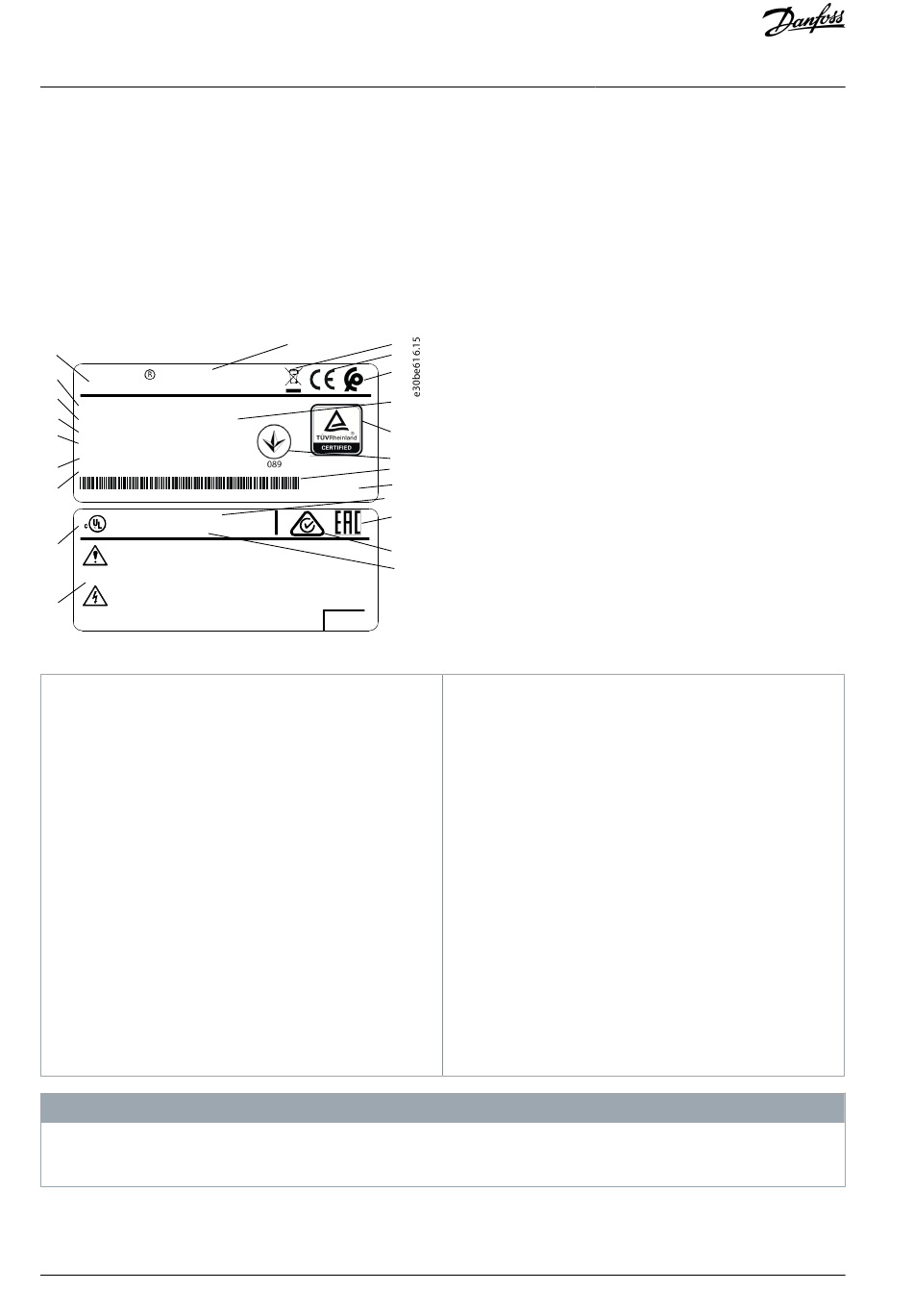

Illustration 2: Product Nameplate (Example)
1 Product logo
2 Product name
3 Disposal
4 CE mark
5 Morocco
6 Serial number
7 TÜV logo
8 UkrSEPRO logo
9 Barcode
10 Country of origin
11 UL reference
Do not remove the nameplate from the drive (loss of warranty).
-
For more information of the type code, refer to the chapter Type Code in the VLT® Midi DriveFC 280 Design Guide.
16 | Danfoss A/S © 2022.02
2 3
4
5
6
7
8
www.tuv.com
9
ID 0600000000
10
MADE IN
DENMARK
11
12
13
14
SIL3
12
13
14
15
16
17
18
19
20
21
22
N O T I C E
Mechanical Installation
EAC logo
RCM logo
Reference to enclosure type
Warning specifications
UL logo
IP rating
Output voltage, frequency, and current (at low/high
voltages)
Input voltage, frequency, and current (at low/high
voltages)
Power rating
Ordering number
Type code
