L1(N) L2(L) L3
Drive
U V W
Mechanical
brake
Motor Shaft

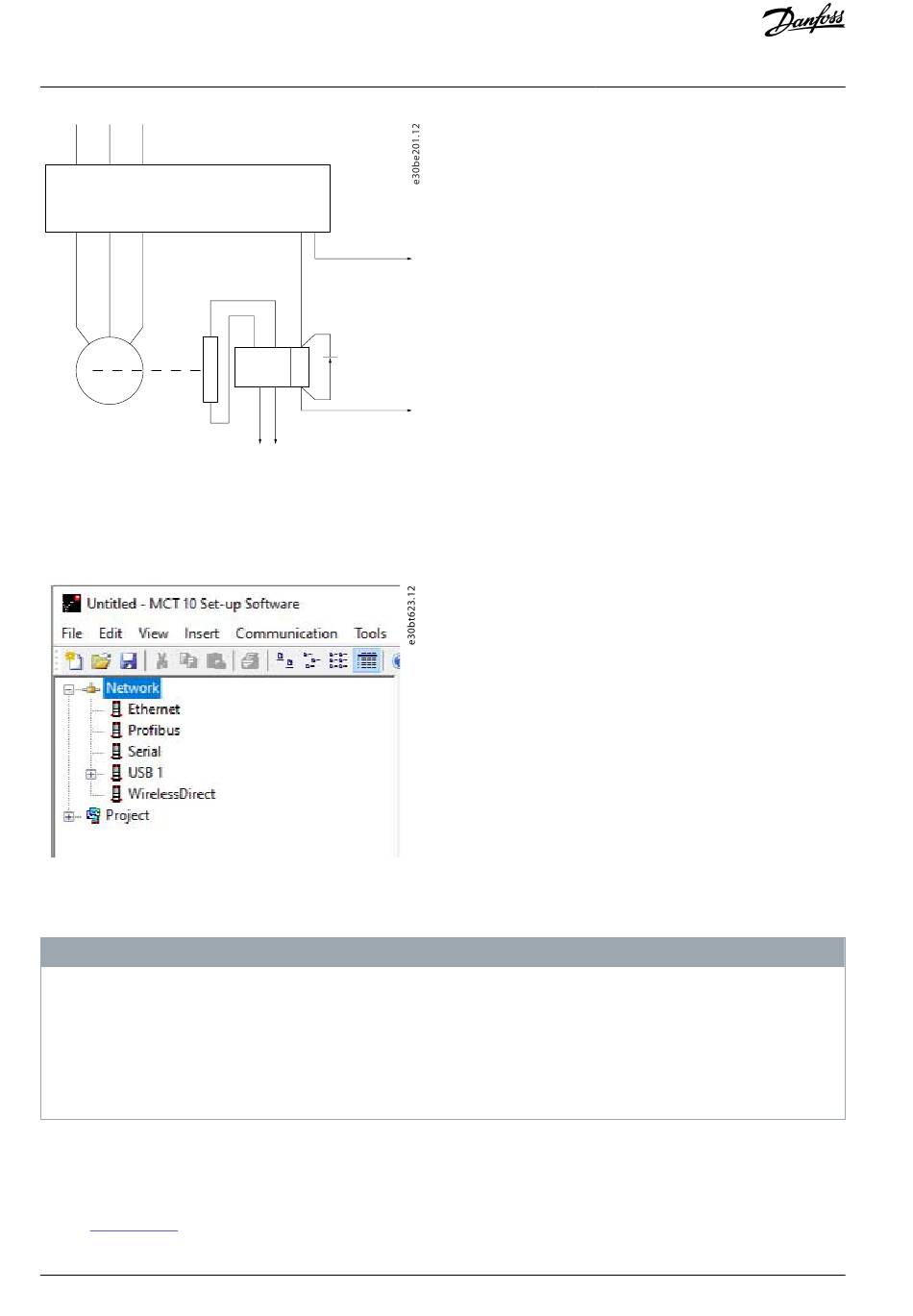

Illustration 19: Connecting the Mechanical Brake to the Drive

4.9.5 USB Data Communication

Illustration 20: Network Bus List
When the USB cable is disconnected, the drive connected via the USB port is removed from the Network bus list.
CONNECT 1 DRIVE VIA USB TO PC
A USB bus has no address-setting capacity and no bus name to configure. If connecting more than 1 drive through USB, the bus
name is auto-incremented in the MCT 10 Set-up Software Network bus list.
Connecting more than 1 drive through a USB cable often causes computers installed with Windows to throw an exception and
crash.
-
Only connect 1 drive via USB to the PC.

4.9.6 Serial Communication

Connect RS485 serial communication wiring to terminals (+) 68 and (-) 69.
• Shielded serial communication cable is recommended.
• See 4.3 Grounding for proper grounding.
32 | Danfoss A/S © 2022.02
Output
relay
02 01
Command circuit
220 V AC
Freewheeling
Output
A1
diode
contactor
input
A2
Brake power circuit
380 V AC
N O T I C E
Electrical Installation
AQ381425076031en-000101 / 130R1223
