1. Place the horizontal decoupling plate on the control cassette mounted on the drive and fasten the plate using 2 screws as
shown in Illustration

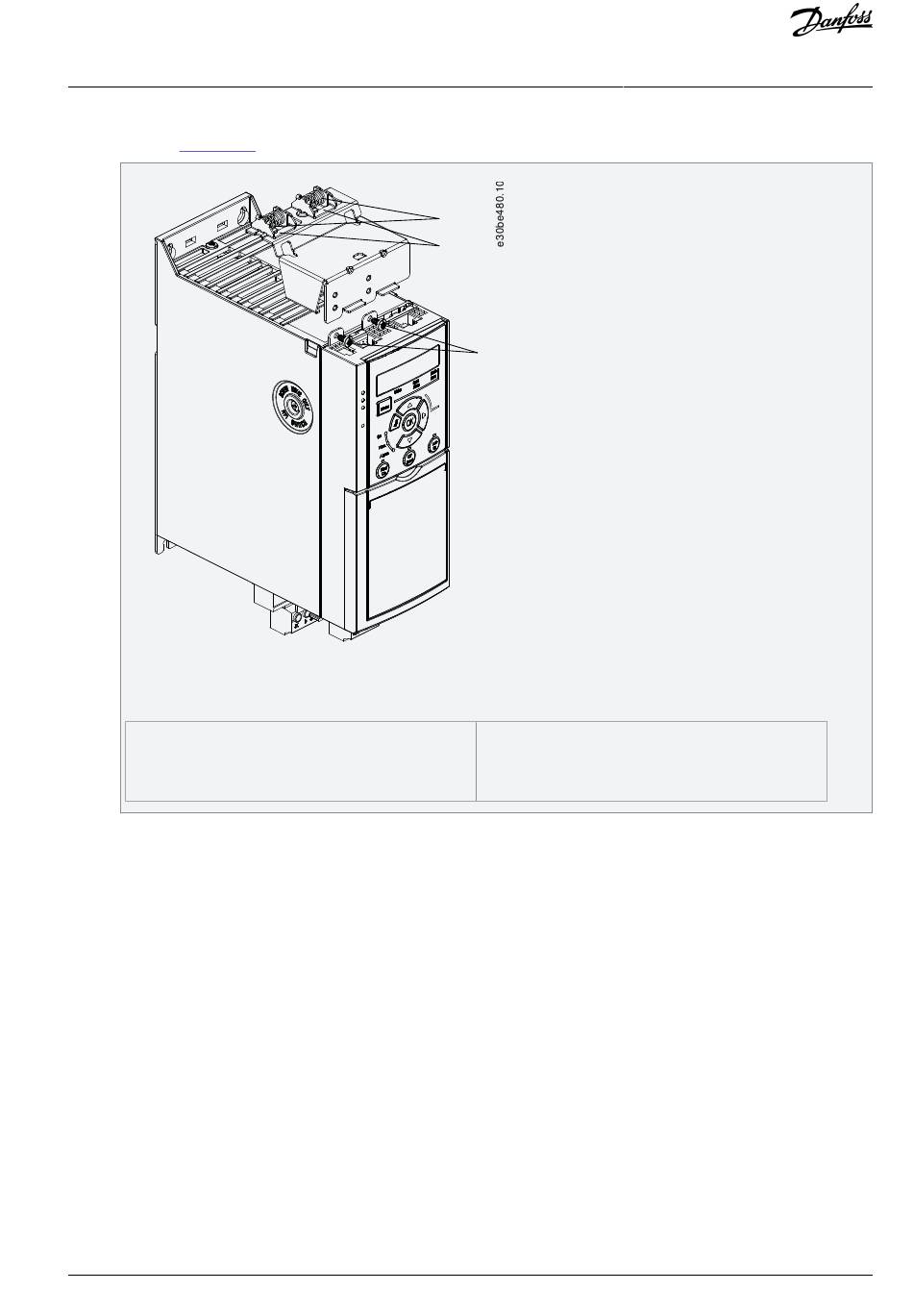

Illustration 6: Fasten the Horizontal Decoupling Plate with Screws
The illustration shows Ethernet-based connectors (RJ45). The actual connector type depends on the selected fieldbus var-
iant of the drive.
1 Mechanical springs
2 Metal clamps
2. Optional: Mount the vertical decoupling plate as follows:
a. Remove the 2 mechanical springs and 2 metal clamps from the horizontal plate.
b. Mount the mechanical springs and metal clamps on the vertical plate.
Danfoss A/S © 2022.02
6. Tightening torque is 0.7–1.0 Nm (6.2–8.9 in-lb).
1
2
3
3 Screws
