VLT® Midi Drive FC 280
Operating Guide
4.

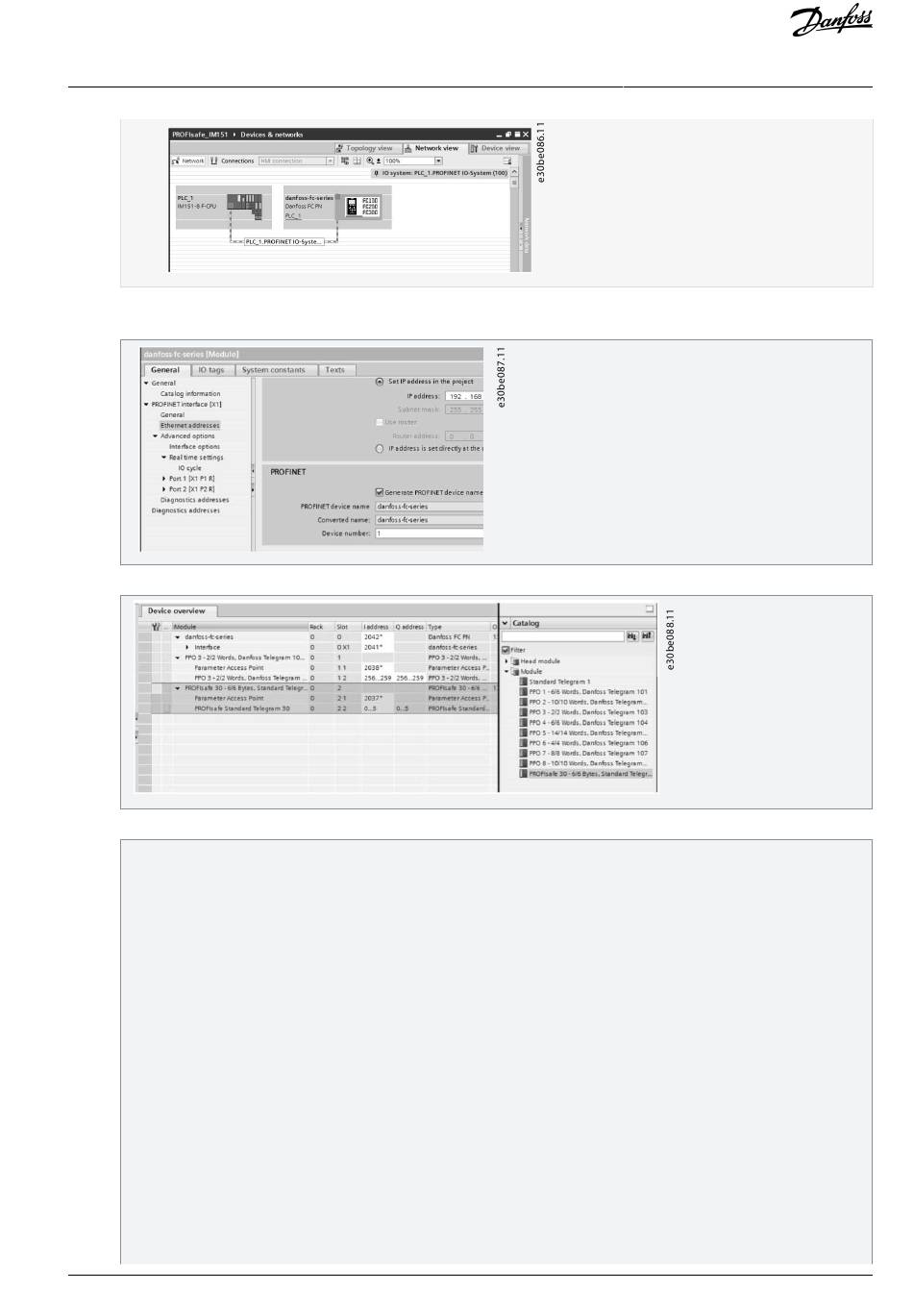

In the Password for Safety Program dialog box, enter the appropriate password.
5.
Assign the name to the Danfoss device. The name must be the same as shown in parameter 12-08 Host Name.
6.
Select the following I/O protocol: PROFIsafe 30 -6/6 Bytes, Standard Telegram 30.
7.
Edit the required PROFIsafe settings under the Properties tab.
The following parameters can be changed, but normally it is only necessary to change the F_Dest_Add parameter:
•
F_Source_Add - the PROFIsafe address of the PROFIsafe master.
•
F_Dest_Add - the destination address of the safety option. This address must be the same as set in the VLT® Motion
Control Tool MCT 10 software, parameter 42-61 Destination Address.
•
F_WD_Time - the watchdog time for the PROFIsafe connection. This setting depends on the speed of the PROFINET
connection and the number of slaves.
•
F_iPar_CRC - if the F_iPar_CRC module is enabled. To set up communication, copy the value of parameter 42-35 S-CRC
Value from the VLT® Motion Control Tool MCT 10 software and insert the value here.
Danfoss A/S © 2022.02
Safety Functions
AQ381425076031en-000101 / 130R1223 | 89
