Danfoss VLT FC 280 Operating Manual page 37

VLT® Midi Drive FC 280
Operating Guide
Setup 1234
AHP
VkW
srpm
n3 Hz%
n1 n2
p5 p4
INDEX p3 p2 p1

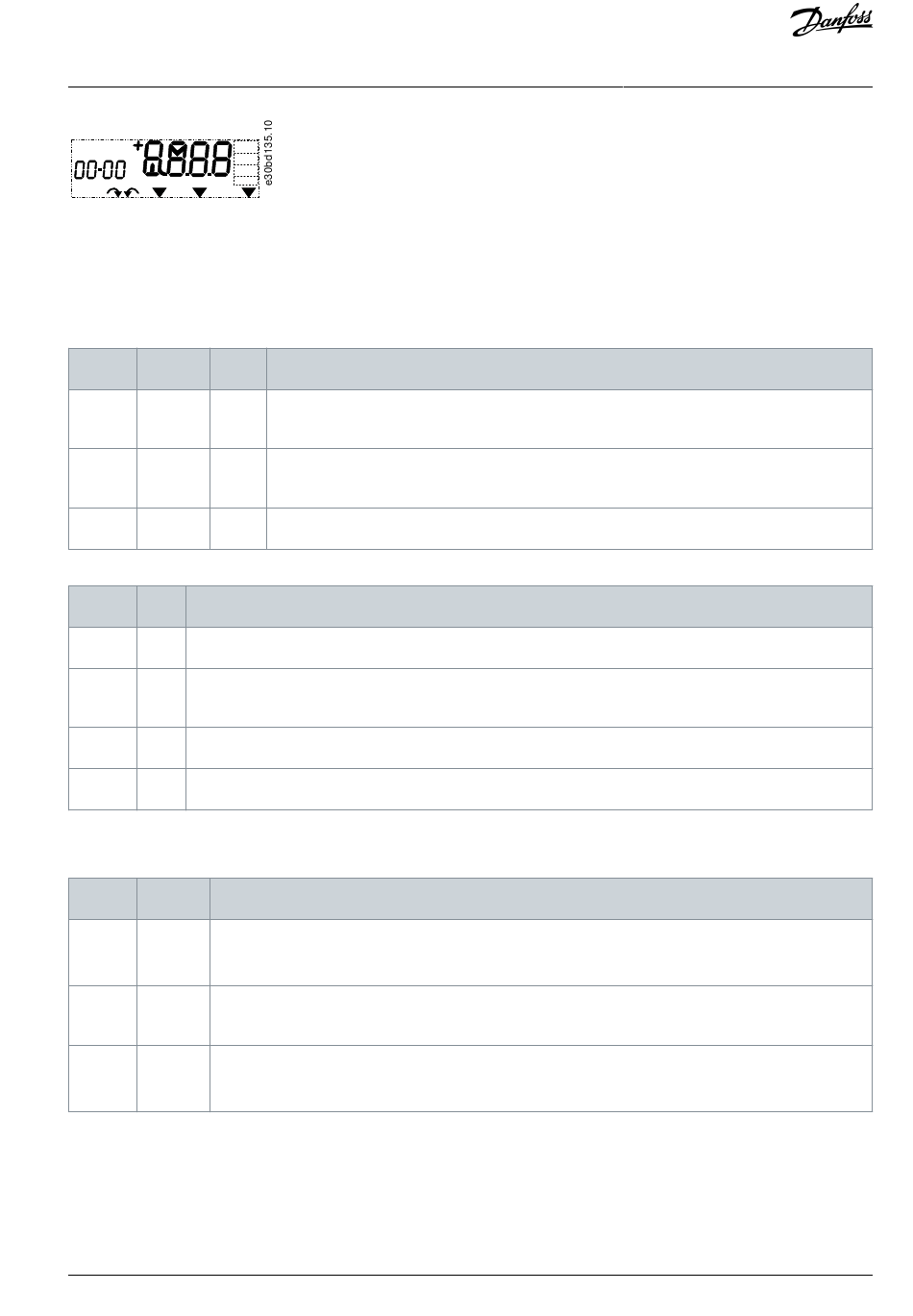

Illustration 23: Display Information
B. Menu key
To select between Status, Quick Menu, or Main Menu, press [Menu].
C. Indicator lights (LEDs) and navigation keys
Table 7: Legend to Section C, Indicator Lights (LEDs)
Number Indicator Light
6 On Green
7 Warn Yellow
8 Alarm Red
Table 8: Legend to Section C, Navigation Keys
Number Key Function
9 Back For moving to the previous step or layer in the navigation structure.
10 [▵][▿] For switching between parameter groups, parameters, and within parameters, or increasing/decreasing pa-
rameter values. Arrows can also be used for setting local reference.
11 [OK] Press to access parameter groups or to enable a selection.
12 [▹] Press to move from left to right within the parameter value to change each digit individually.
D. Operation keys and indicator lights (LEDs)
Table 9: Legend to Section D
Number Key Function
Starts the drive in local control.
13 Hand On
•
14 Off/Reset Stops the motor but does not remove power to the drive, or resets the drive manually after a fault has
been cleared. If in alarm mode, the alarm is reset if the alarm condition is removed.
Puts the system in remote operational mode.
15 Auto On
•
Danfoss A/S © 2022.02
Function
ON turns on when the drive receives power from the mains voltage, a DC bus terminal, or a 24 V
external supply.
When warning conditions are met, the yellow WARN LED turns on, and text appears in the dis-
play area identifying the problem.
A fault condition causes the red alarm LED to flash and an alarm text is shown.
An external stop signal by control input or serial communication overrides the local hand on.
Responds to an external start command by control terminals or bus communication.
Commissioning
AQ381425076031en-000101 / 130R1223 | 37
