5.3.5.4 Array Parameters
Setup 1
5 x
1
OK
Setup 1
INDEX
2
OK
Setup 1
INDEX
Setup 1
INDEX
OK
4
Setup 1
INDEX

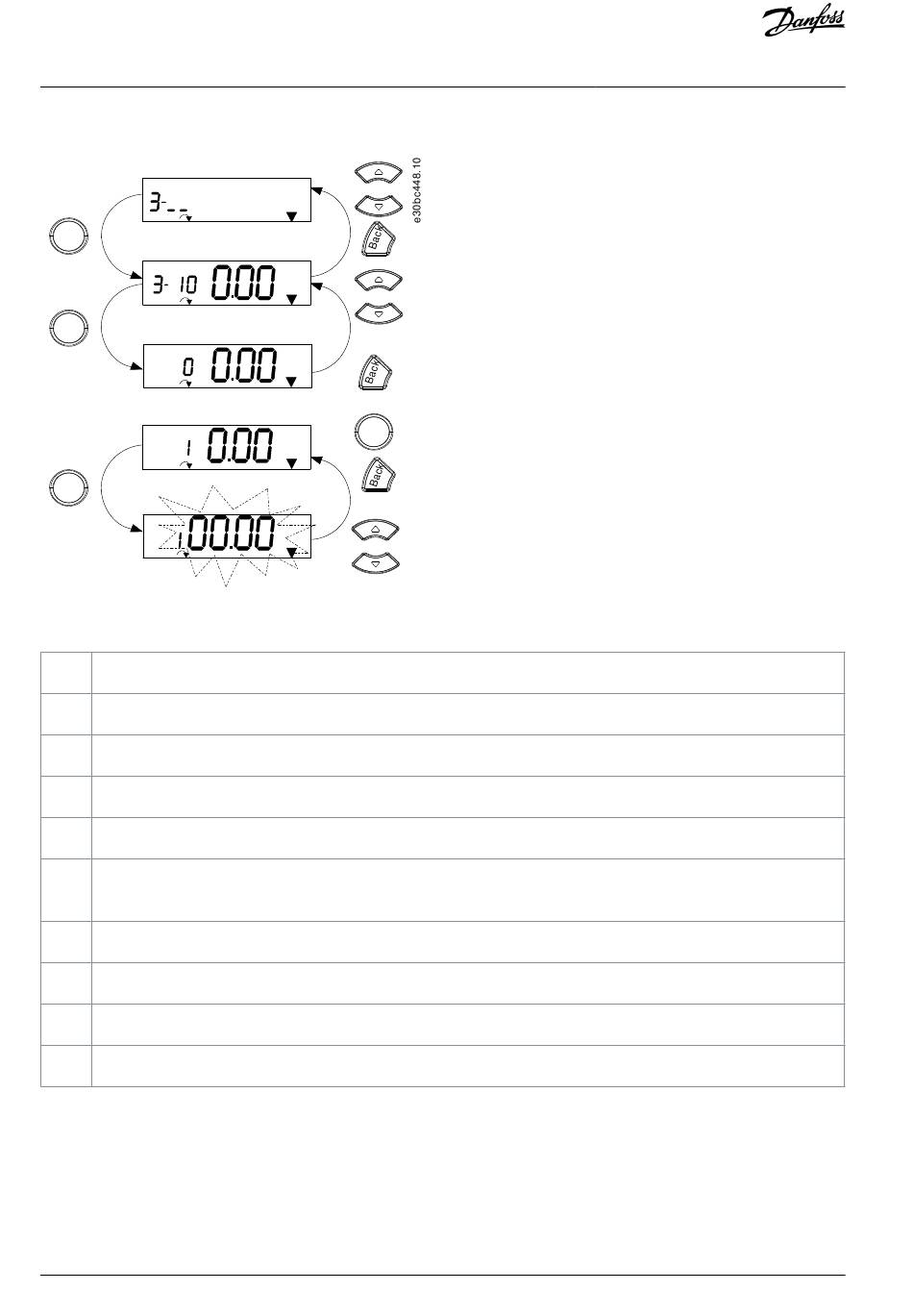

Illustration 28: Main Menu Interactions - Array Parameters
Table 12: Changing Values in Array Parameters
1
[OK]: Shows parameter numbers and the value in the first index.
2
[OK]: Index can be selected.
3
[▵][▿]: Select index.
4
[OK]: Value can be edited.
5
[▵][▿]: Change parameter value (flashing).
6
[Back]: Cancels changes.
[OK]: Accepts changes.
7
[Back]: Cancels editing index, selects a new parameter.
8
[▵][▿]: Select parameter within the group.
9
[Back]: Removes parameter index value and shows the parameter group.
10
[▵][▿]: Select group.
5.3.6 Graphical Local Control Panel
The GLCP is divided into 4 functional groups.
•
A. Display area.
•
B. Display menu keys.
•
C. Navigation keys and indicator lights (LEDs).
•
D. Operation keys and reset.
