6.36 LCD

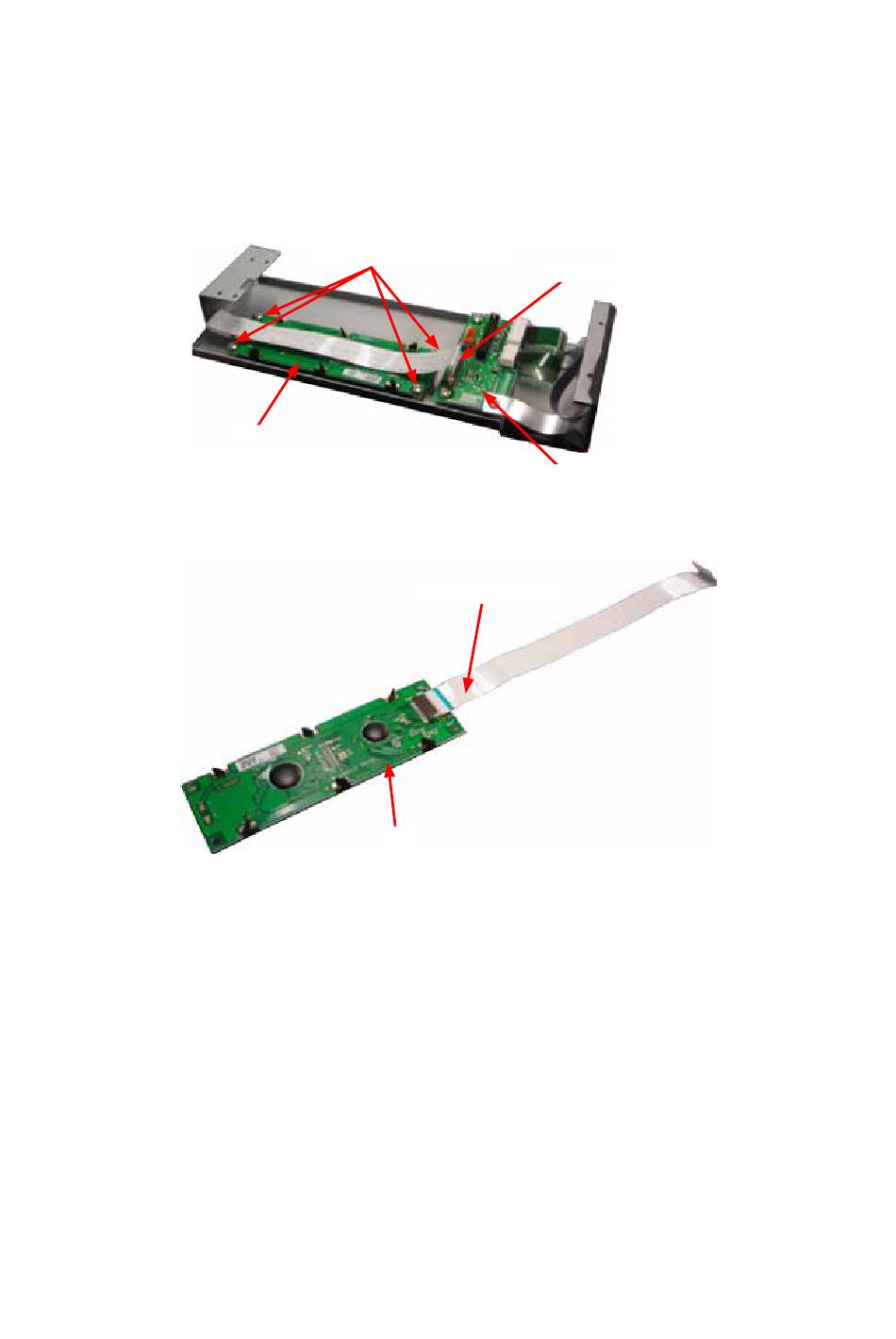

How to detach the LCD
(1) Detach the Corner Cover 50L (See section 6.6.).
(2) Detach the Operation Panel (See section 6.15.).
(3) Disconnect the Flexible cable of LCD from the control panel relay board.
(4) Remove the four M3L6 binding head screws holding the LCD, and then detach it from the Control
Panel Assembly.
(5) Disconnect the Flexible cable of LCD from the LCD.
How to install the LCD
(1) Reattach the LCD in the reverse order in which it was detached.
FC4500-UM-251-9370
M3L6 binding head screw
LCD
LCD
LCD Flexible Cable
Control Panel Relay board
LCD Flexible Cable
67
6 REPLACEMENT PROCEDURES
