Corner Cover 50 L; Corner Cover B - GRAPHTEC FC 4500 Series Service Manual

6.6

Corner Cover 50 L

How to detach the Corner Cover 50L
(1) Remove the M3L10 tapping screw and the M4L8 binding head screw holding the Corner Cover 50L
(Front left side), and then detach the Corner Cover 50L.
How to install the Corner Cover 50L
(1) Reattach the Corner Cover 50L in the reverse order in which it was detached.
6.7

Corner Cover B

How to detach the Corner Cover B
(1) Remove the M4L8 binding head screw holding the Corner Cover B (Left rear side), and then detach
the Corner Cover B.
How to install the Corner Cover B
(1) Reattach the Corner Cover B in the reverse order in which it was detached.
FC4500-UM-251-9370

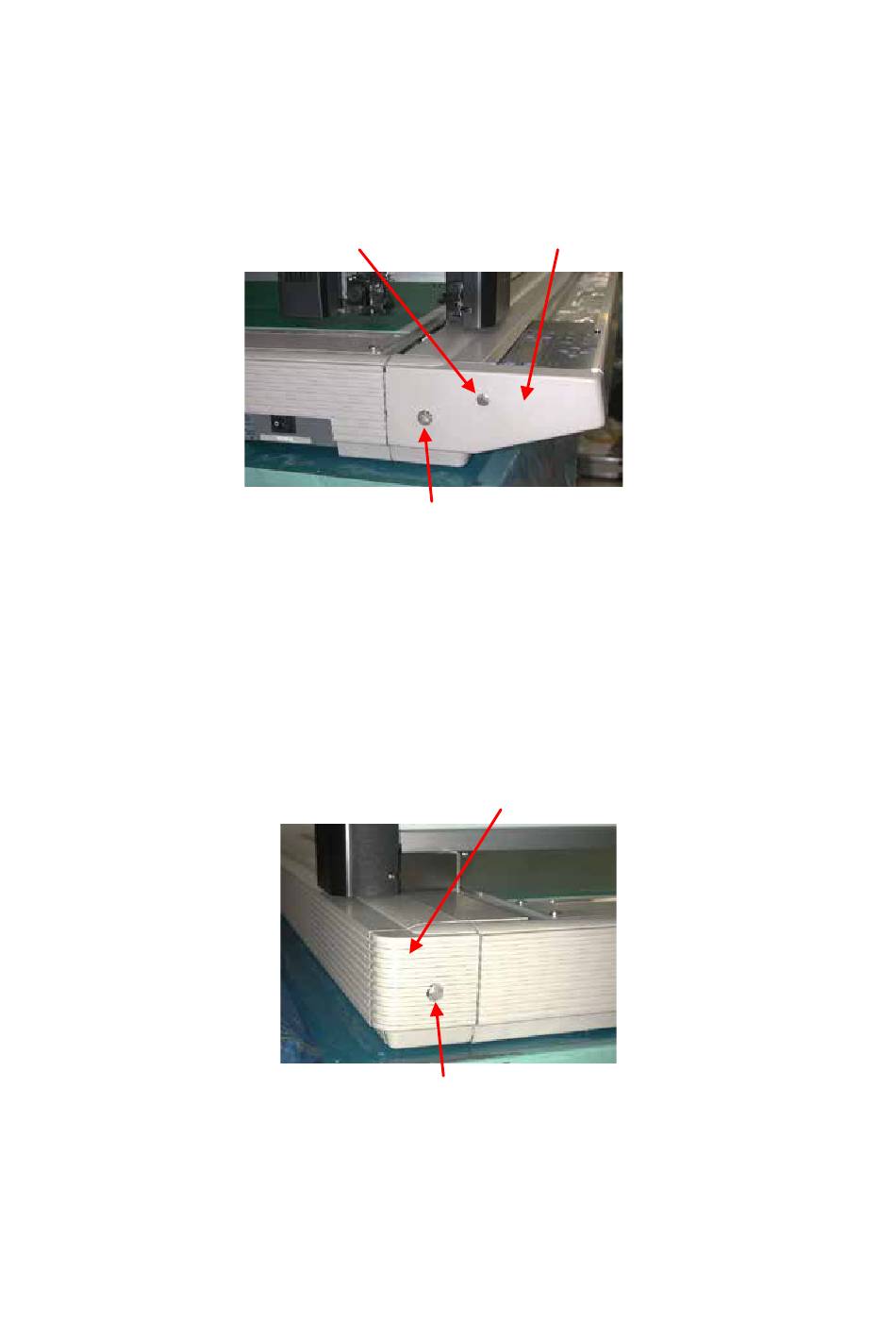

M3L10 tapping screw
