6.30 X Flexible Cable
How to detach the Front X Belt
(1) Open the bottom chassis (See section 6.2.)
(2) Detach the Rear Y End Cover (See section 6.5.).
(3) Detach the Corner Cover B (See section 6.7.).
(4) Detach the Corner Cover A (See section 6.9.).
(5) Detach the Right Side Cover (See section 6.12.).
(6) Detach the Rear Cover (See section 6.14.).

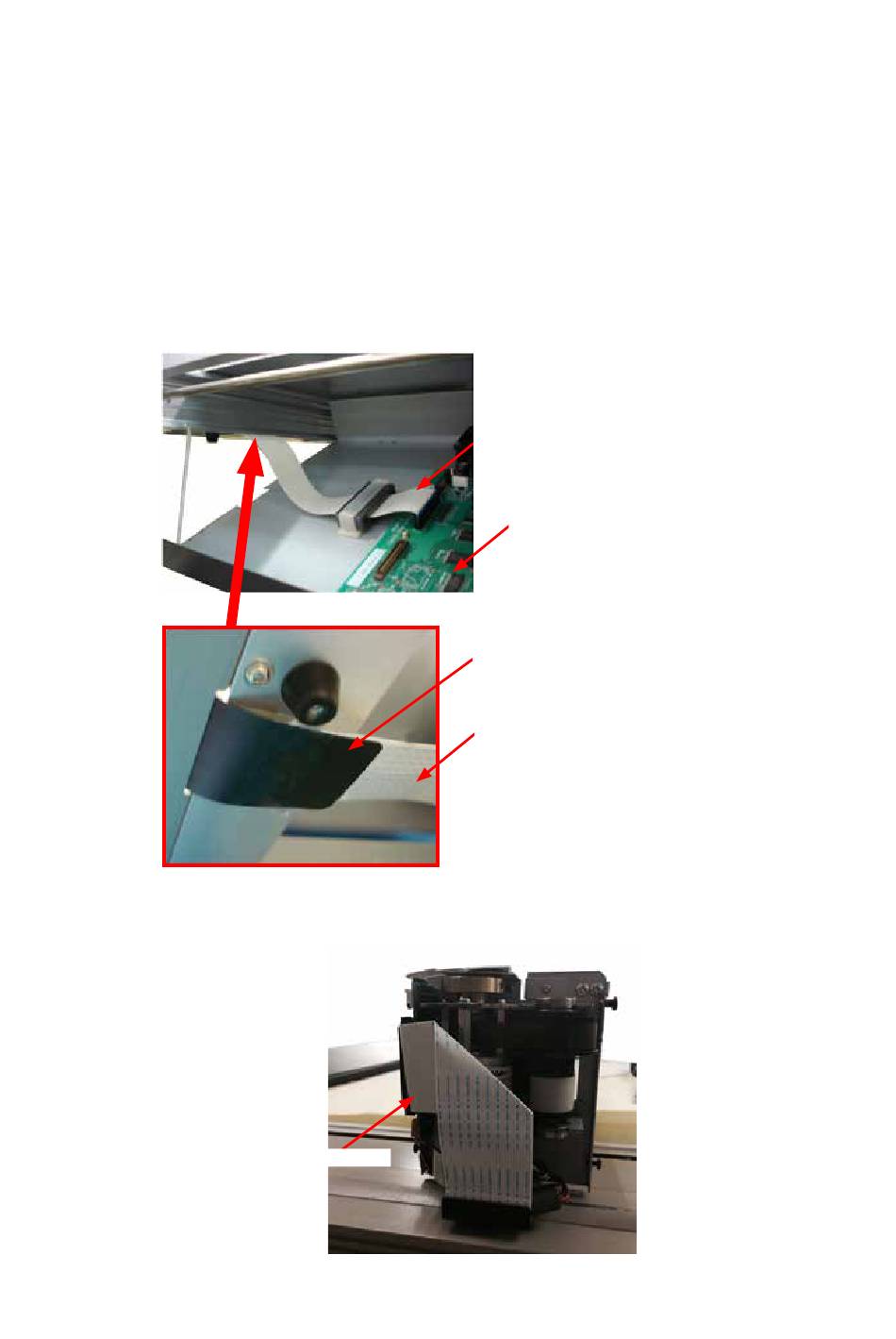

(7) Disconnect the X Flexible Cable from the main board.
(8) Peel off the X Flexible Cable protection sheet from the X Flexible Cable.
(9) Disconnect the X Flexible Cable from the Y Relay Board.
FC4500-UM-251-9370
X Flexible Cable
X Flexible Cable
Main Board
X Flexible Cable protection sheet
X Flexible Cable
56
6 REPLACEMENT PROCEDURES
