7

Electrical Adjustment

7.1

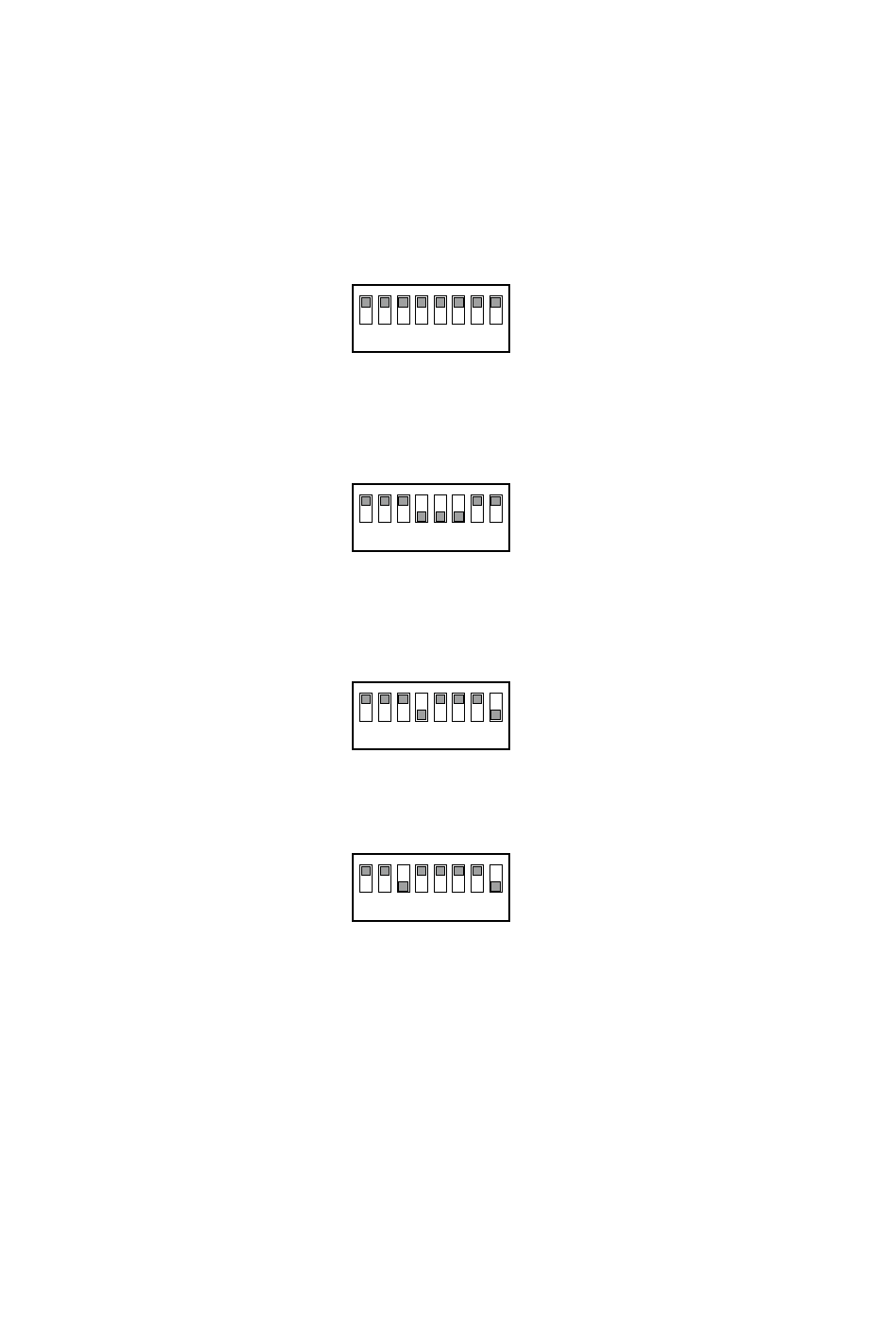

List of DIP Switches

Normal mode (factory settings)
This is normal dip-switch setting.
Sets the following dip-Switch settings when the adjustment was finished.
Adjustment mode
This is adjustment dip-switch setting.
Sets the following dip-Switch settings to adjust the electrical adjustment.
NOVRAM Clear mode
This dip-switch settings clear the all electrical adjustment.
Perform this before performing all electrical adjustment when the main board was replaced.
Gain Values input mode
Sets the following dip-switch settings when input the gain values.
FC4500-UM-251-9370
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
90
7 ELECTRICAL SECTION
