6.10 Panel R

How to detach the Panel R
(1) Remove the four M4L8 binding head screws holding the Panel R, and then detach the Panel R.
How to install the Panel R
(1) Reattach the Panel R in the reverse order in which it was detached.

6.11 Panel L

How to detach the Panel L
(1) Remove the four M4L8 binding head screws holding the Panel L, and then detach the Panel L.
How to install the Panel L
(1) Reattach the Panel L in the reverse order in which it was detached.
FC4500-UM-251-9370

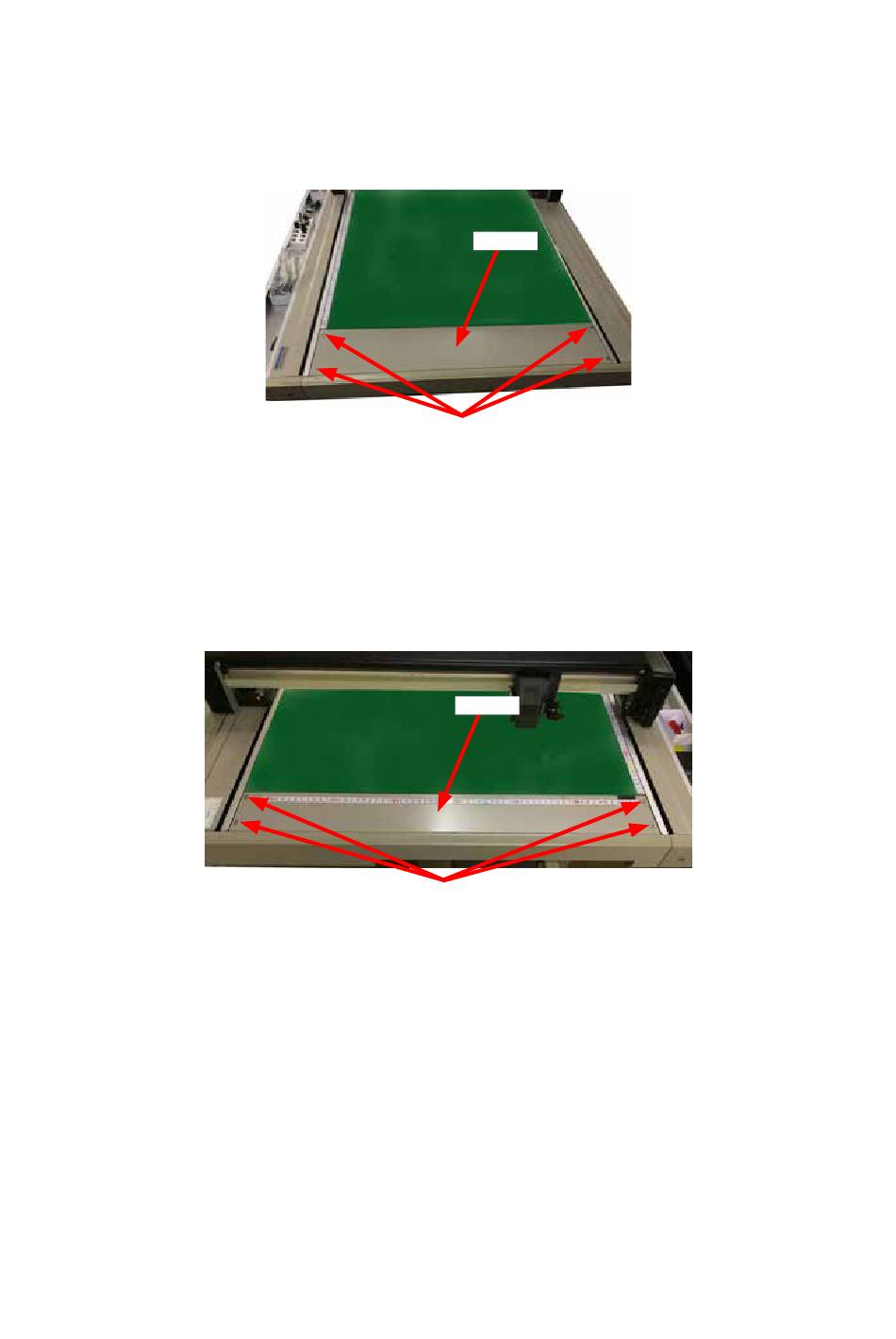

Panel R
M4L8 binding head screw
Panel L
M4L8 binding head screw
23
6 REPLACEMENT PROCEDURES
