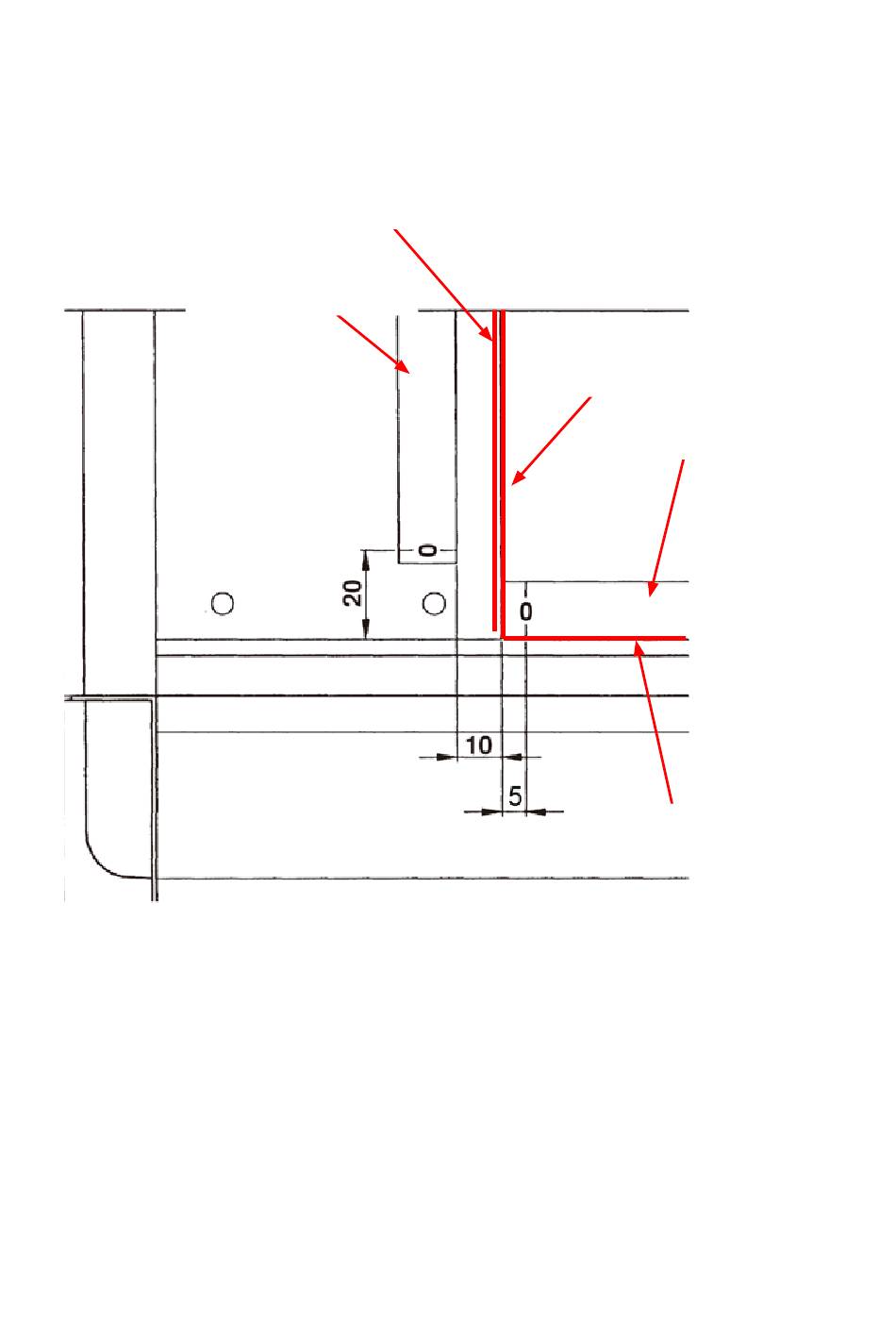

Pasting Position for the FC4500-60
X direction of measuring tape
(1) Paste the 0 of measuring tape on the position of 5 mm from the left side edge of writing panel along
the X-axis, and align the measuring tape vertically to the bottom edge of writing panel.
Y direction of Measuring tape
Y direction of measuring tape
(1) Paste the 0 of measuring tape on the position of 20 mm from the bottom of honeycomb plate edge,
and align the measuring tape vertically along the 10 mm from the edge of Panel L.
FC4500-UM-251-9370
Righrt edge of Panel L
Left edge of writng panel
X direction of Measuring tape
Bottom edge of writng panel
87
6 REPLACEMENT PROCEDURES
