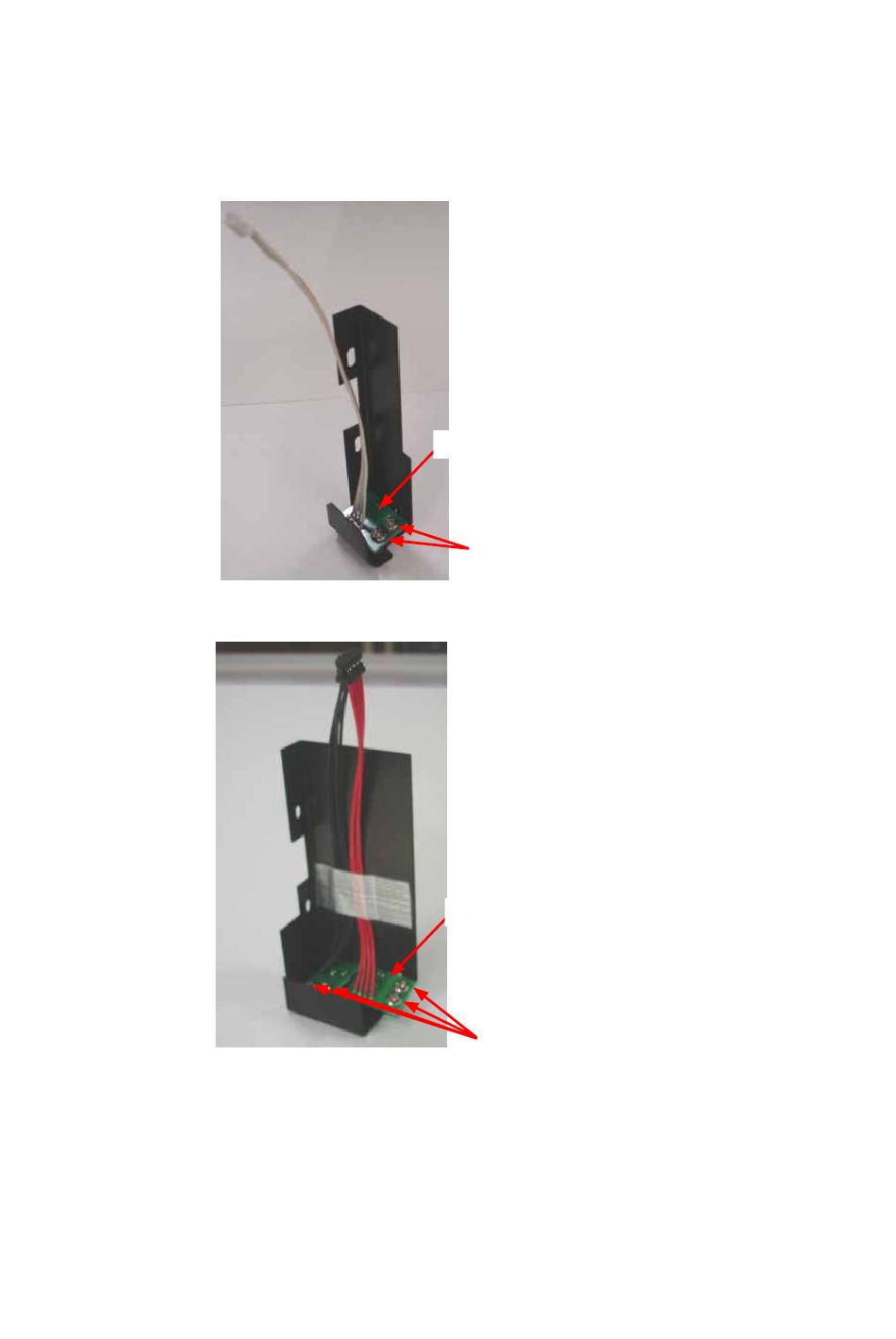

(5) Remove the two M3L6 binding head screws holding the Registration Mark Sensor, and then detach
the Registration Mark Sensor. (Remove the four M3L6 binding head screws holding the Registration
Mark Sensor for the Registration Mark Sensor of FC4510-60.)
FC4500-50 / FC4500-60
FC4510-60
FC4500-UM-251-9370
Registration mark sensor
M3L6 binding head screw
Registration mark sensor
M3L6 binding head screw
35
6 REPLACEMENT PROCEDURES
