6.19 Registration Mark Sensor

How to detach the Registration Mark Sensor
(1) Detach the Y Rail Cover (See section 6.3.).
(2) Detach the Pen Block Cover (See section 6.17.).

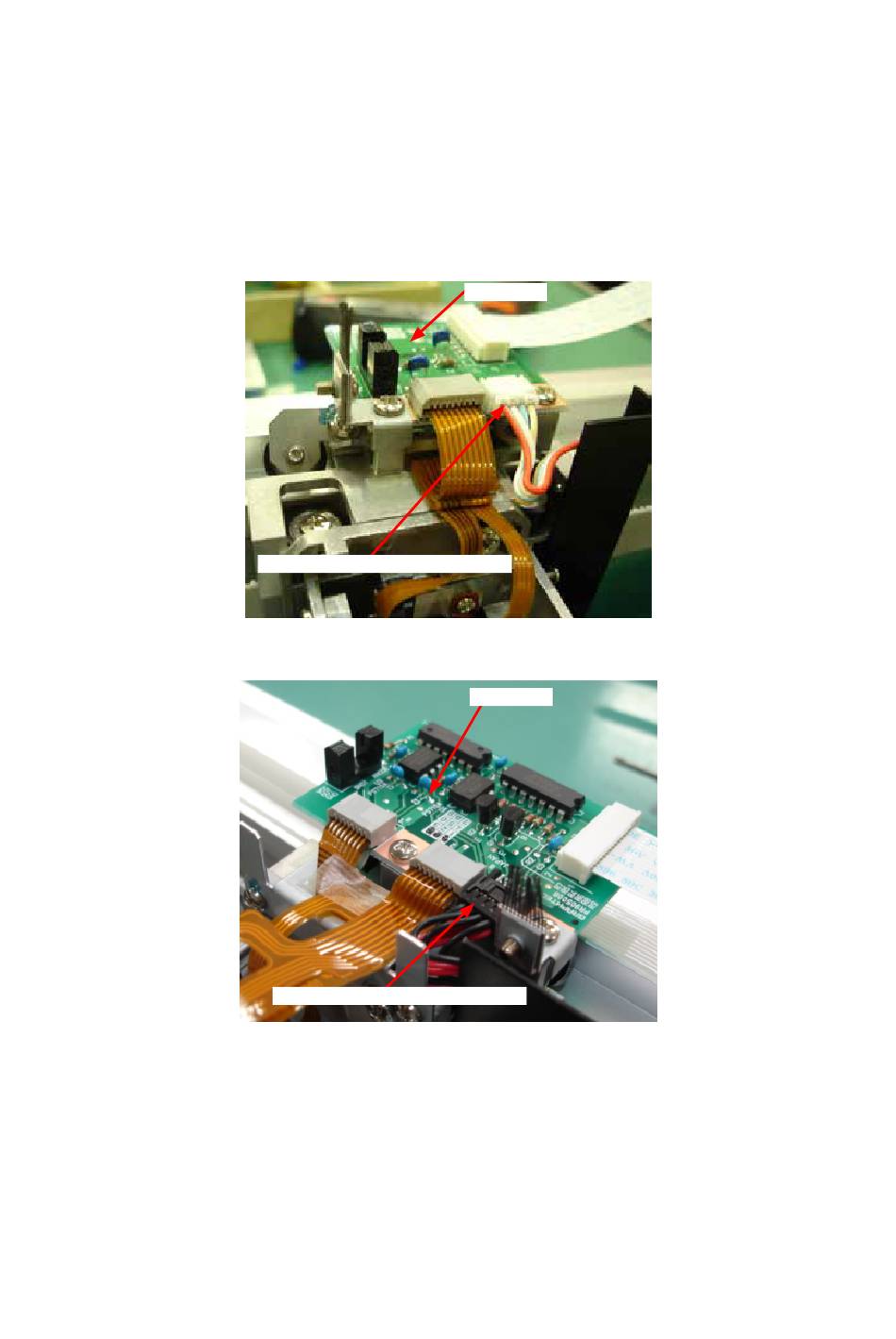

(3) Disconnect the Registration Mark Sensor Cable from the Pen Board.
FC4500-50 / FC4500-60
FC4510-60
FC4500-UM-251-9370
Registration Mark Sensor Cable
Registration Mark Sensor Cable
Pen board
Pen board
33
6 REPLACEMENT PROCEDURES
