6.13 Interface Cover

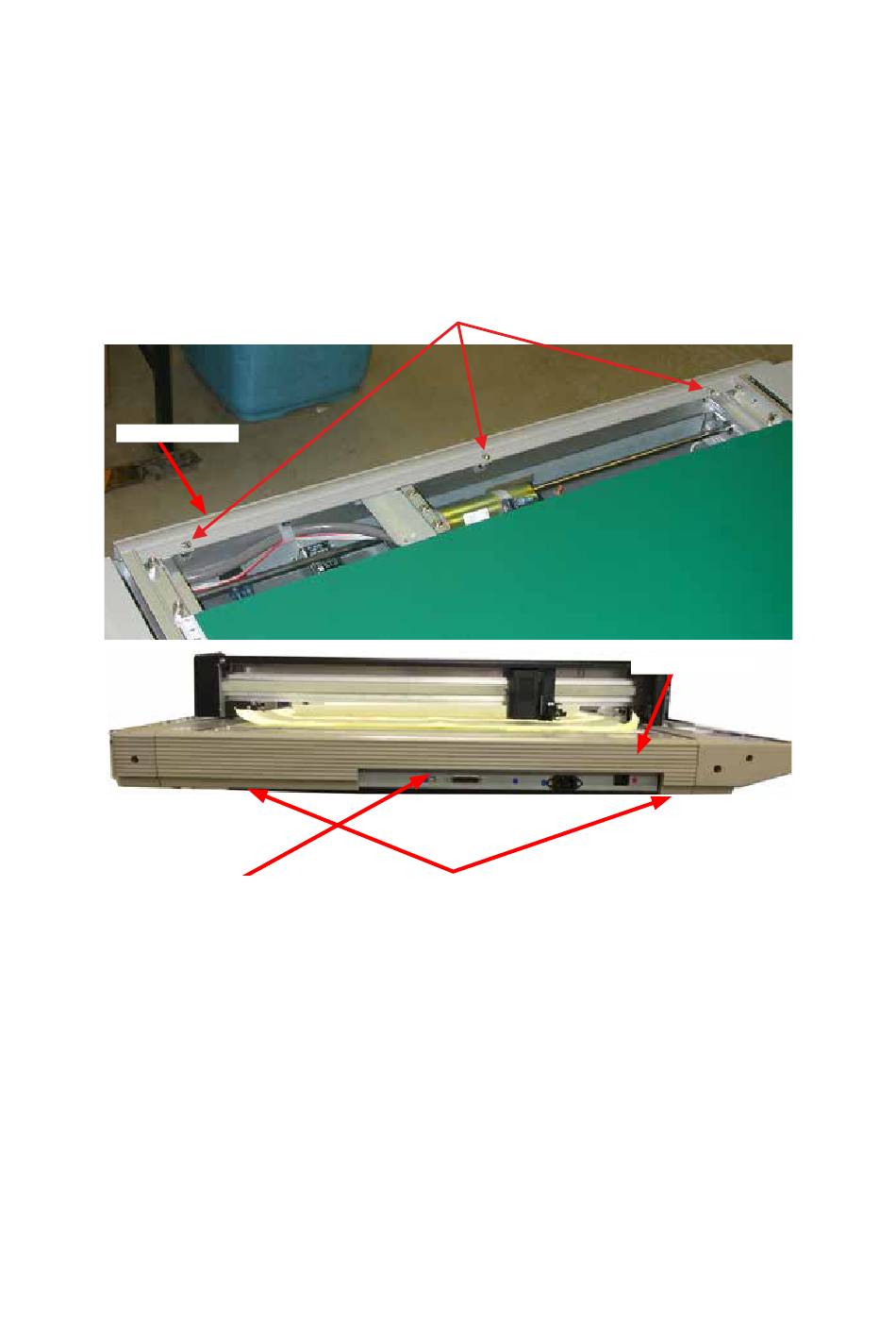

How to detach the Interface Cover
(1) Detach the Corner Cover 50L (See section 6.6.).
(2) Detach the Corner Cover B (See section 6.7.).
(3) Detach the Panel L (See section 6.11.).
(4) Remove the four M4L6 binding head screws and the two M3L6 TP head screws holding the Inter
face Cover, and then detach the Interface Cover.
Interface Cover
M4L6 TP head screw
How to install the Interface Cover
(1) Reattach the Interface Cover in the reverse order in which it was detached.
FC4500-UM-251-9370
M4L6 binding head screw
M3L6 TP head screw
