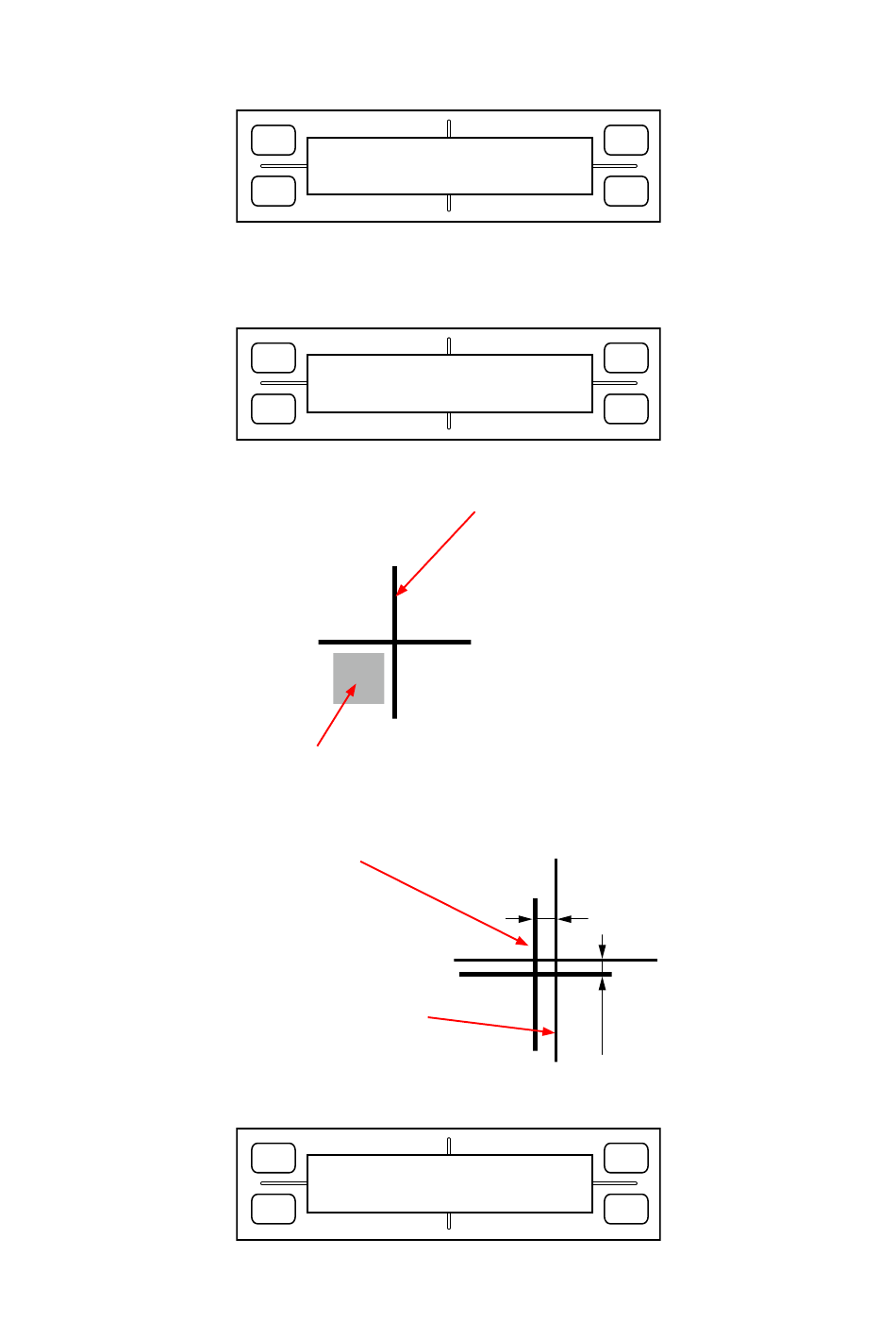

(19) The following menu is displayed.
(20) Place a new printed cross mark target on the writing panel to adjust the Y of registration mark
sensor.
(21) Press the [F3] (Y) key to display the following menu.
(22) Move the tool position to the following area of printed cross mark target by using the position keys.
(23) Press the [Enter] key. The plotter will detect the printed cross mark target with a sensor, and then
plotter draws the cross mark to the detected position.
The plotter draws this cross mark
after the Printed Cross Mark was
detected.
(24) The following menu is displayed.
FC4500-UM-251-9370
FORCE
F1
X
+X
F2
SPEED
FORCE
F1
MOVE TO ADJ. POINT
PRESS ENTER KEY!
F2
SPEED
Move the tool position to this area.
Printed Cross Mark Target
FORCE
F1
SENSOR OFFSET ADJUST
X=0.00
F2
SPEED
ADJ.SENS POS
Printed Cross Mark Target
Y=0.00mm
mm
116
7 ELECTRICAL SECTION
OFFSET
F3
Y
+Y
F4
QUALITY
OFFSET
F3
F4
QUALITY
Offset of X direction
Offset of Y direction
OFFSET
F3
F4
QUALITY
