6.14 Rear Cover

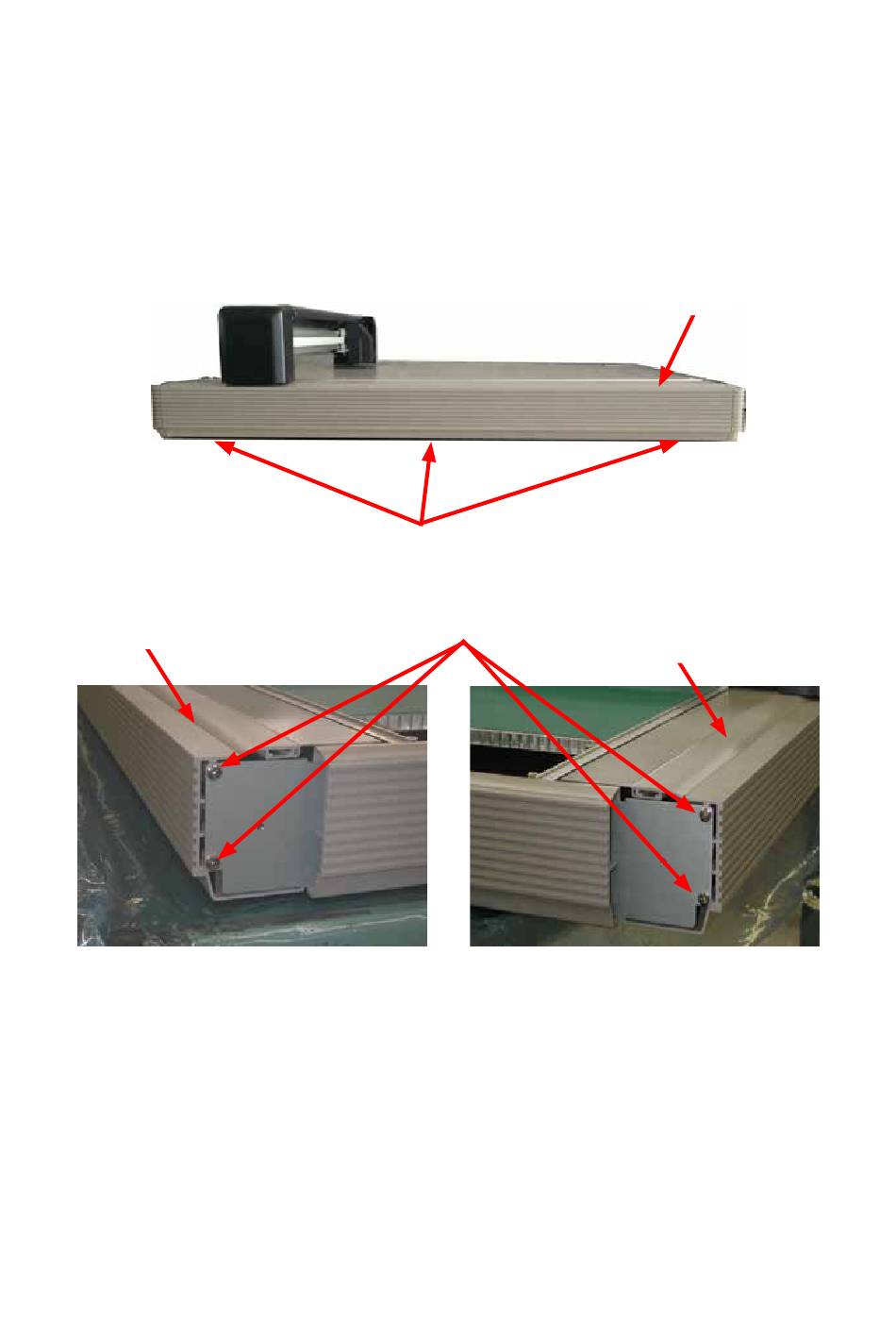

How to detach the Rear Cover
(1) Detach the Corner Cover A (See section 6.9.).
(2) Detach the Corner Cover B (See section 6.7.).
(3) Remove the three M3L6 TP head screws holding the bottom of Rear Cover.
(The FC4500-60 and FC4510-60 has the four M3L6 TP head screws holding the bottom of Rear
Cover.)
(4) Remove the four M4L18 binding head screws holding the Rear Cover, and then detach the Rear
Cover.
Rear Cover
How to install the Rear Cover
(1) Reattach the Rear Cover in the reverse order in which it was detached.
FC4500-UM-251-9370
M3L6 TP head screw
M4L18 binding head screw
26
6 REPLACEMENT PROCEDURES
Rear Cover
Rear Cover
