6.21 Y Flexible Cable

How to detach the Y Flexible Cable
(1) Detach the Y Rail Cover (See section 6.3.).
(2) Detach the Rear Y End Cover (See section 6.5.).

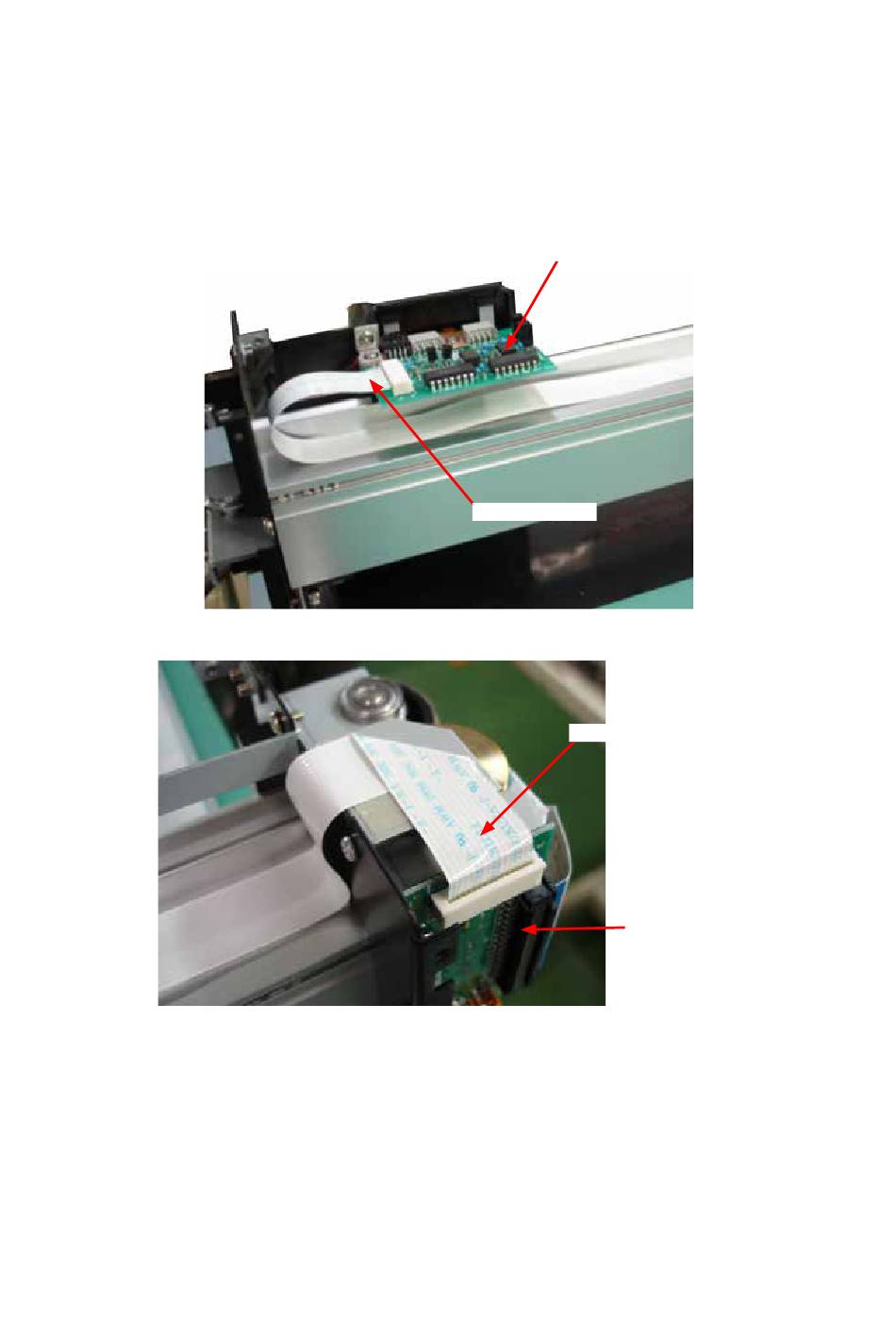

(3) Disconnect the Y Flexible Cable from the Pen Board.
(4) Disconnect the Y Flexible Cable from the Y Relay Board.
(5) The Y Flexible Cable is affixed onto the Y bar with the double sided tape.
Gently peel off the Y Flexible Cable from the Y bar, to reuse the double sided tape.
The double sided should stay onto the Y bar when the Y Flexible Cable is peeling off.
FC4500-UM-251-9370
Pen board
Y flexible Cable
Y flexible Cable
39
6 REPLACEMENT PROCEDURES
Y Relay Board
