6.8

Corner Cover 50 R

How to detach the Corner Cover 50R
(1) Remove the M3L10 tapping screw and the M4L8 binding head screw holding the Corner Cover 50R
(Front right side), and then detach the Corner Cover 50R.
How to install the Corner Cover 50R
(1) Reattach the Corner Cover 50R in the reverse order in which it was detached.
6.9

Corner Cover A

How to detach the Corner Cover A
(1) Remove the M4L8 binding head screw holding the Corner Cover A (Right rear side), and then detach
the Corner Cover A.
How to install the Corner Cover A
(1) Reattach the Corner Cover A in the reverse order in which it was detached.
FC4500-UM-251-9370

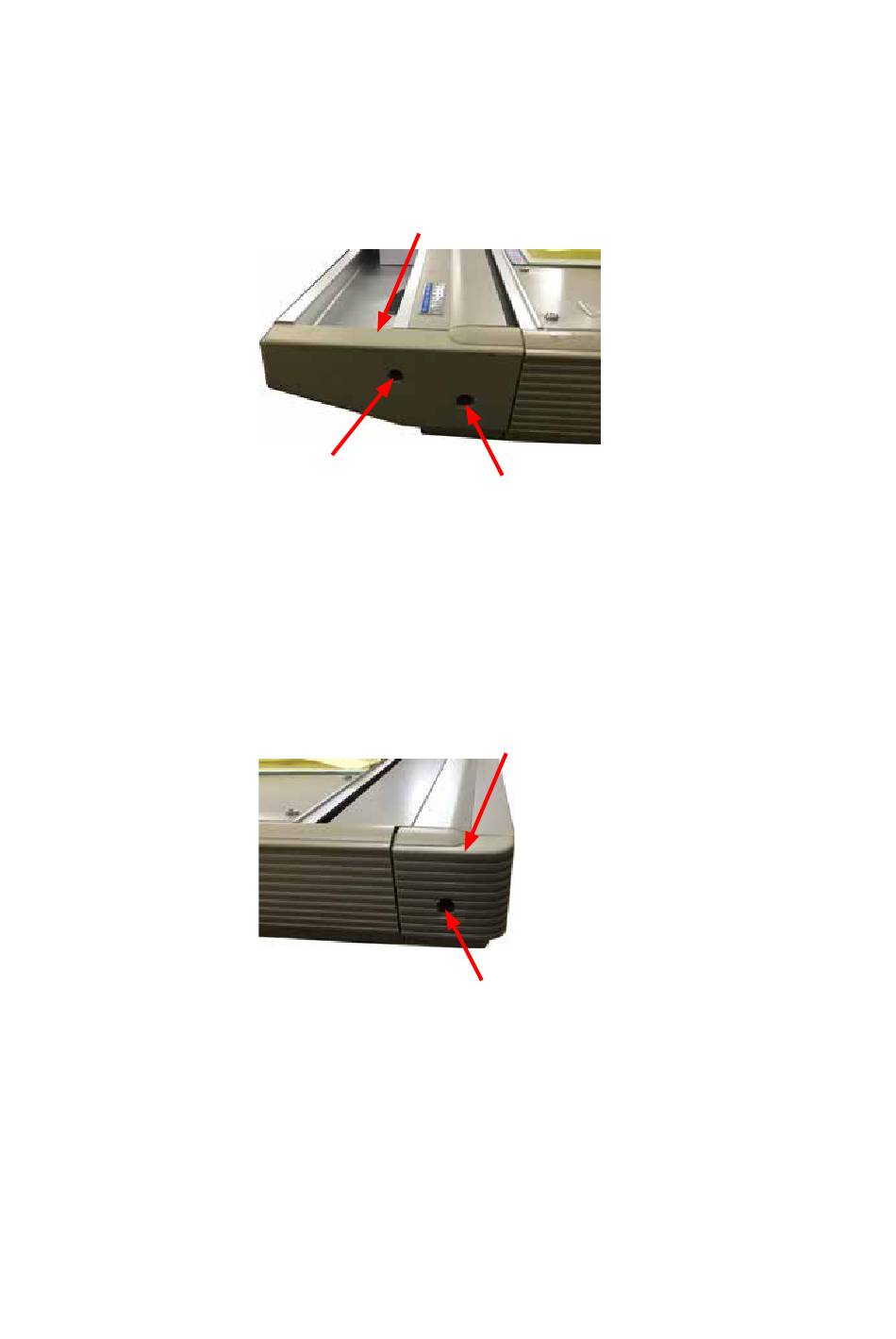

Corner Cover R
M3L10 tapping screw
M4L8 binding head screw
Corner Cover A
M4L8 binding head screw
